• Model NO.：HE500, HE1000, HE1500, HE2000
• Driven Type：AC
• Running Mode：Stationary
• Certification：CE, ISO 9001
• Min. Lifting Height：85mm
• Product Name：U-Shape Lift Table
• Capacity：500-2000kg
• Max. Lifting Height：885mm
• Mechanism：Scissor Lift
• Transport Package：Plywood Package
• Specification：1400× 1200mm to 1500× 1300
• Trademark：Liford
• Origin：Jiangsu
• HS Code：84279000
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. HE500, HE1000, HE1500, HE2000 Driven Type AC Running Mode Stationary Certification CE, ISO 9001 Min. Lifting Height 85mm Product Name U-Shape Lift Table Capacity 500-2000kg Max. Lifting Height 885mm Mechanism Scissor Lift Transport Package Plywood Package Specification 1400× 1200mm to 1500× 1300 Trademark Liford Origin Jiangsu HS Code 84279000 Production Capacity 6000PCS/Month

Product Description

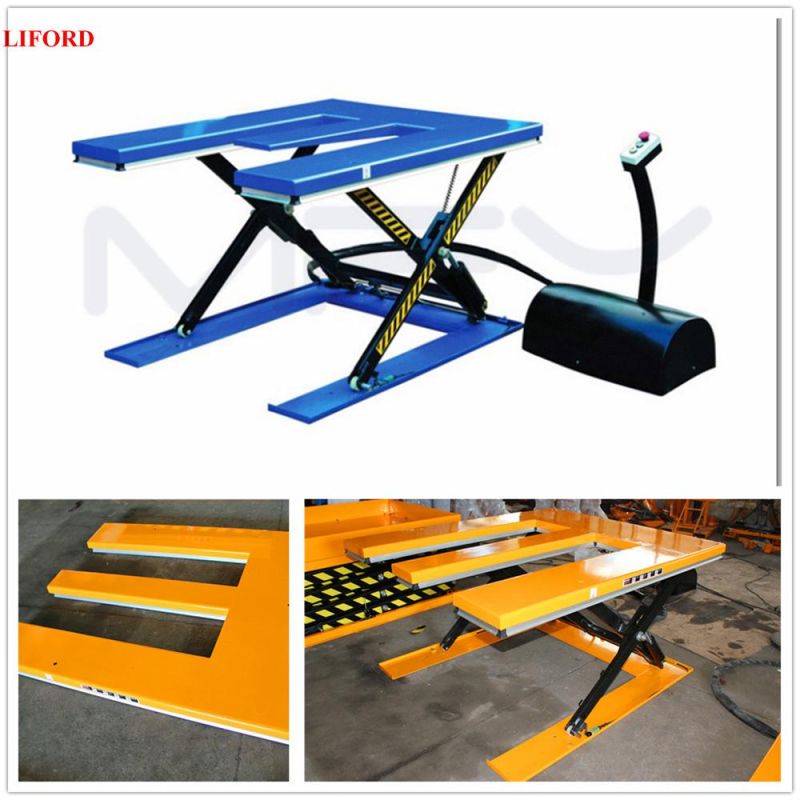

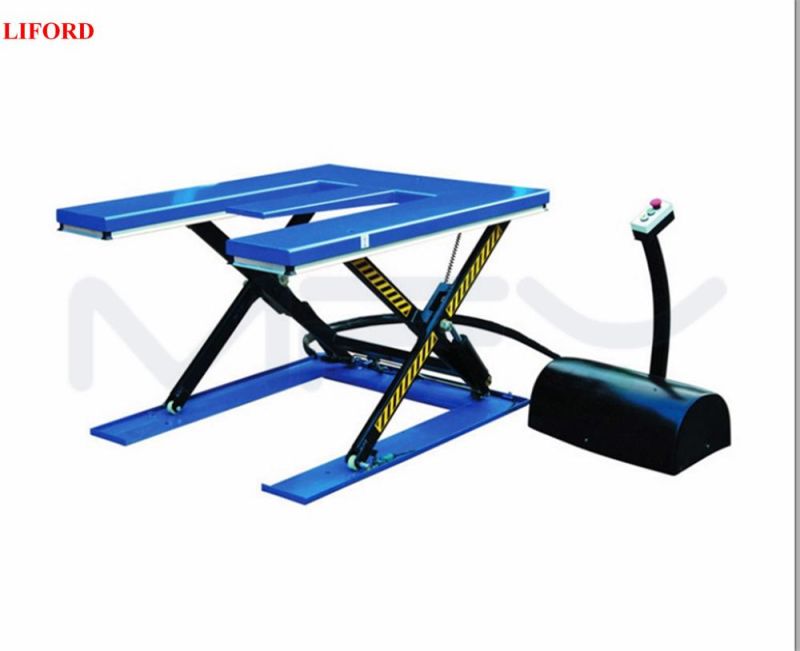

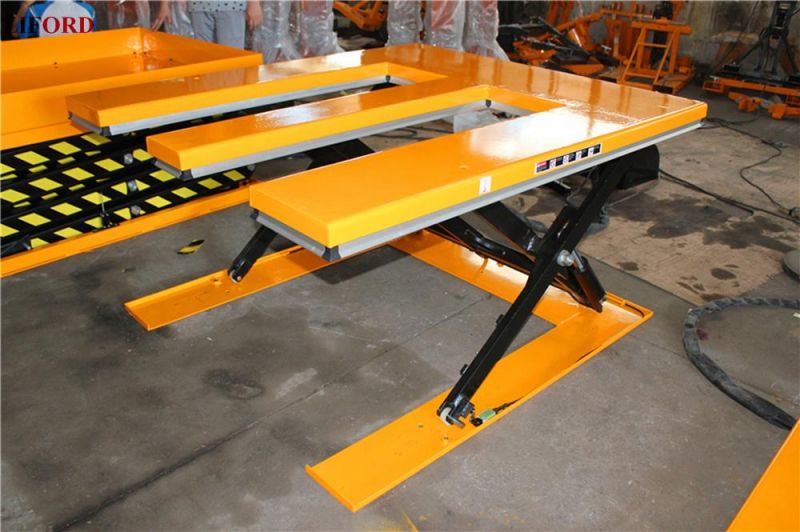

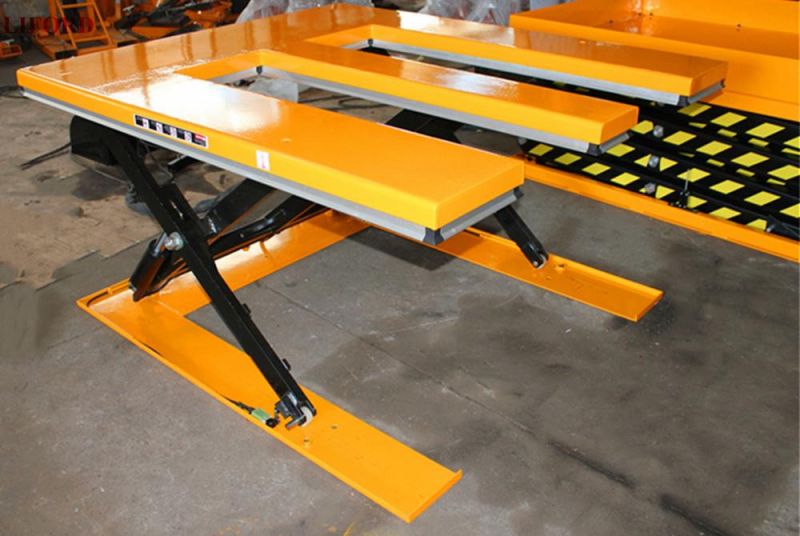

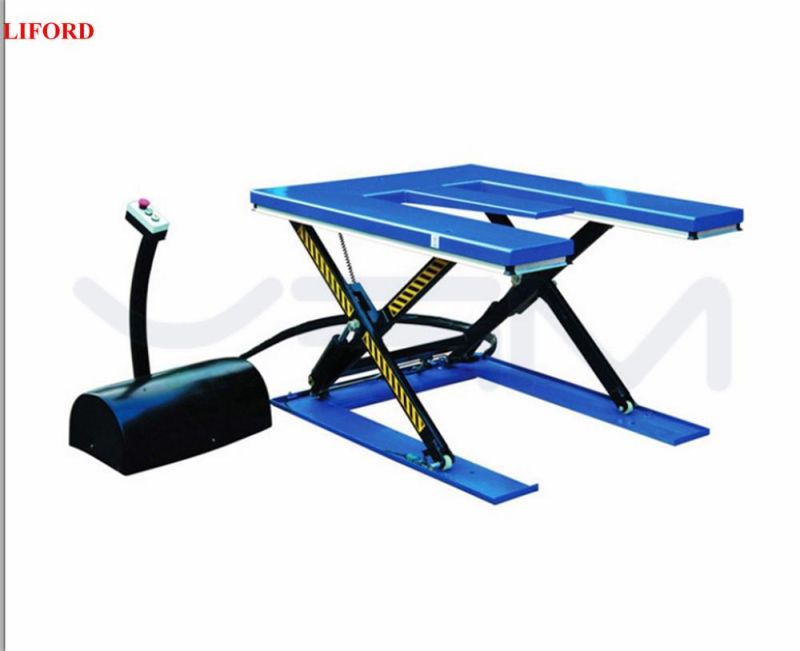

E-shape 2000kg Stationary Electric Scissor Lift Table/CE ISO Approved

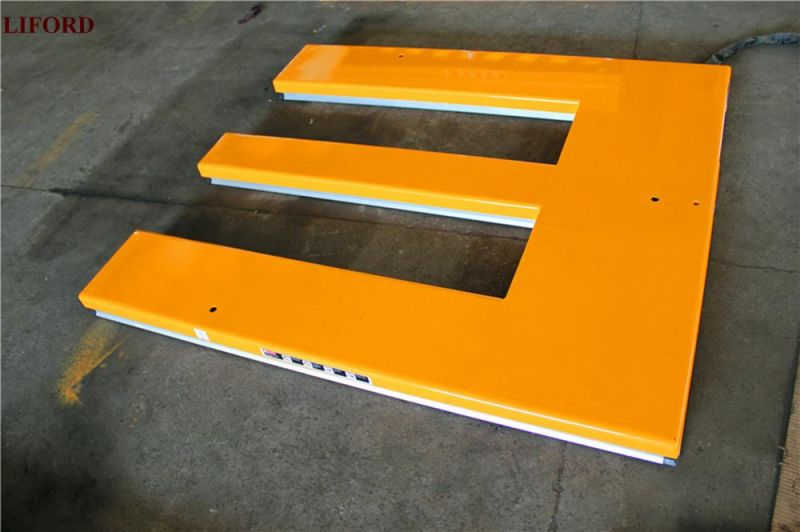

Feature of E-Shape Scissors Low Profile Electric Hydraulic Lift Table 2000kg1. 'E' Shaped Top Platform;
2. Specially for handling pallets, no need for a pit or load ramps;
3. They are manufactured to all European safety standards including EN1570:1990;
4. Remote power pack with pedestal and controls ,pretected to IP54;
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions;
6. 24V control box with UP and DOWN buttons and emergency stop;
7. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed;
8. Hose burst safety valve to stop the lift table lowering in case of hose breakage;
9. Removable lifting eyes to facilitate handling and installation of the lift table;
10. Mechanical safety chocks for maintenance;
11. Oiless bushings on pivot points;
12. Quick assembly joint for oil hose.





 Technical Data of 1000kg 'E' Shape Low Profile Electric Hydraulic Lift Table HE1000


Model	HE500	HE1000	HE1500	HE2000
Capacity    (kg)	500	1000	1500	2000
Max. height    H(mm)	885	885	885	820
Collapsed height    h (mm)	85	85	85	100
Platform      L×W (mm)	1400×1200	1400×1200	1500×1300	1500x1300
Lifting Time (s)	25~35	25~35	30~40	30~40
Power Pack  (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW	380V/50Hz, AC2.2KW
Net Weight  (kg)	207	280	380	500

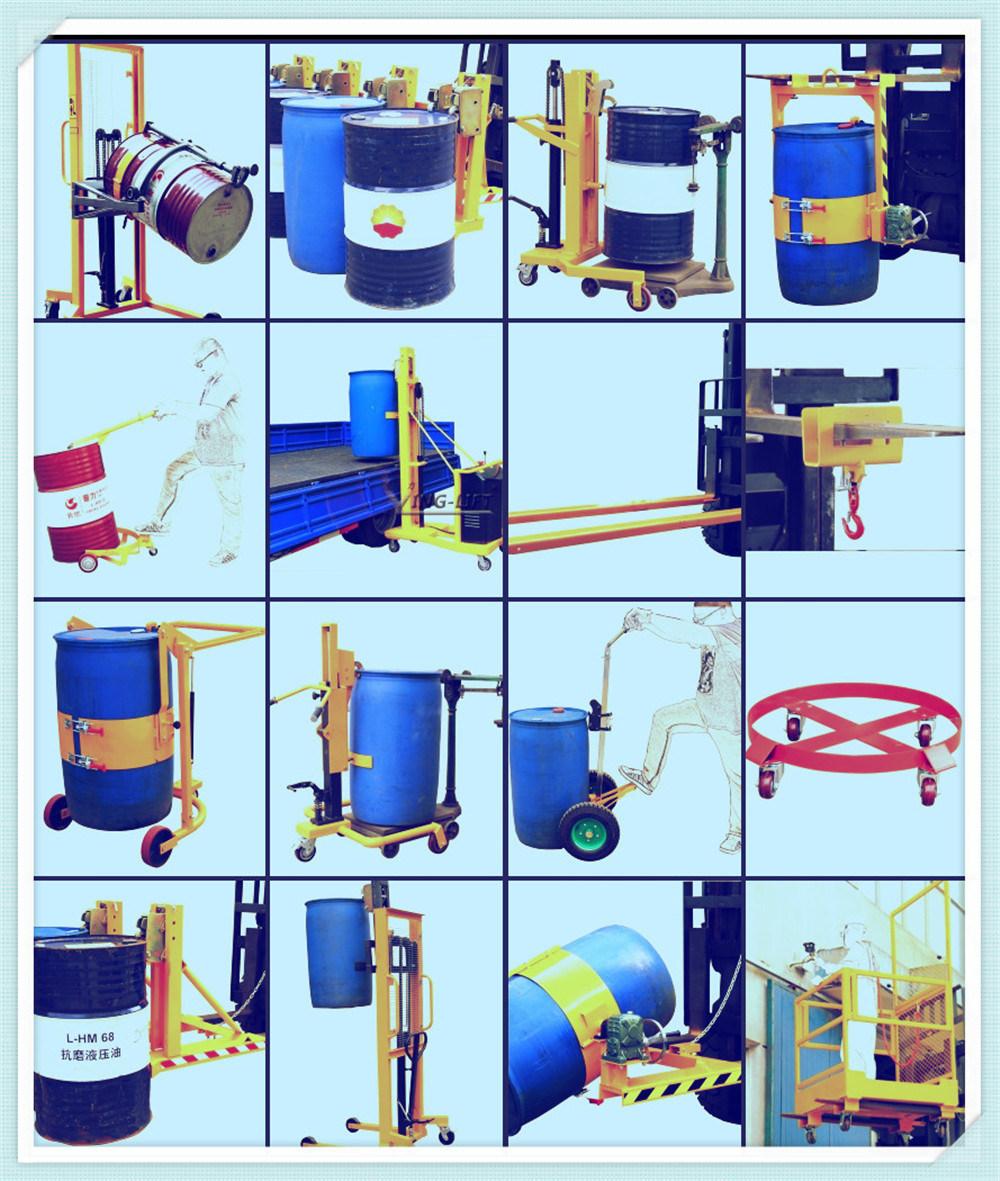

Related Other Drum Handlers
