Mini Portable Small Lift Marine Deck Crane Sq1za2t

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.

Product Name：Mini Portable Small Lift Marine Deck Crane Sq1za2t
Max Working Radius：3.25 M

Base Info

Model NO.：SQ1ZA2T
Top Load：500 Kg
Rotation Angle：330
Self Weight：330 Kg
Oil Tank Capacity：25 L
Installation Space：500 *1250 mm
Boom Type：Knuckle Boom 2 Sections
Remote Control：Optional Attachments
Transport Package：Wooden Cases
Specification：HQ60, HQ70, Q345
Trademark：BOB-LIFT
Origin：Jiangsu, China
HS Code：8426910000
Production Capacity：1500 Sets,Year

Description

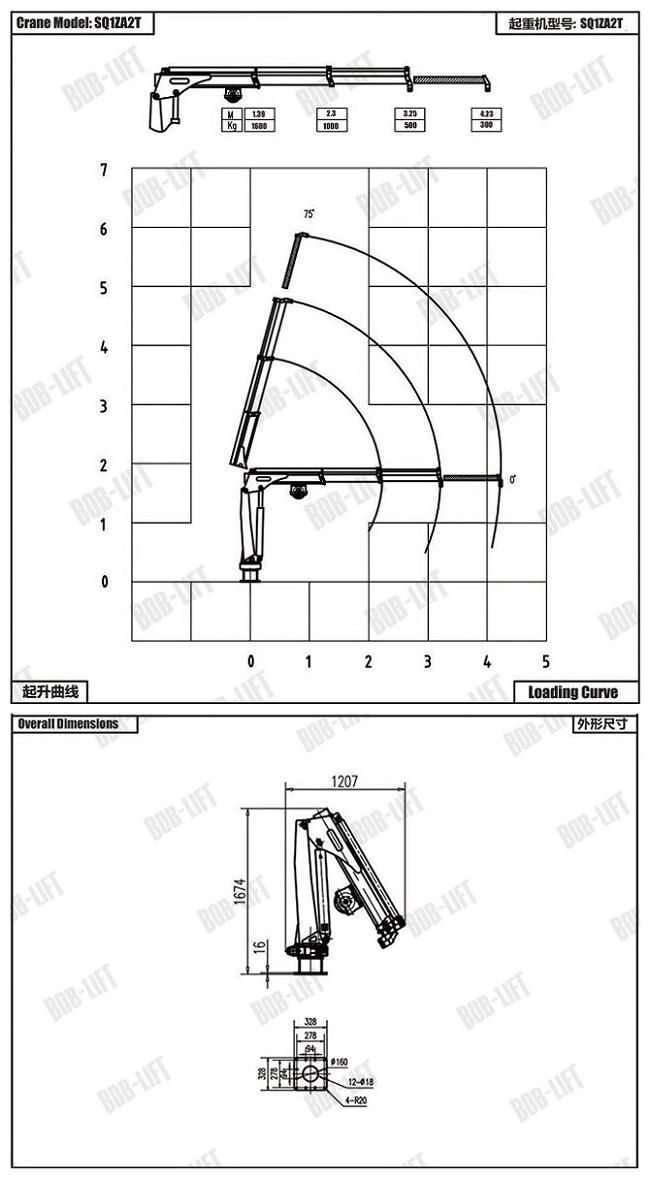

marine deck craneMax lifting capacityton1Max lifting momentton.m1.5Recommend powerKW7.5Hydraulic system flowL/Min15Hydraulic system pressureMpa18Oil tank capacityL25Installation spacemm500*1250Self weightkg330Rotation angle°3303).Technical drawings---Marine Deck Crane

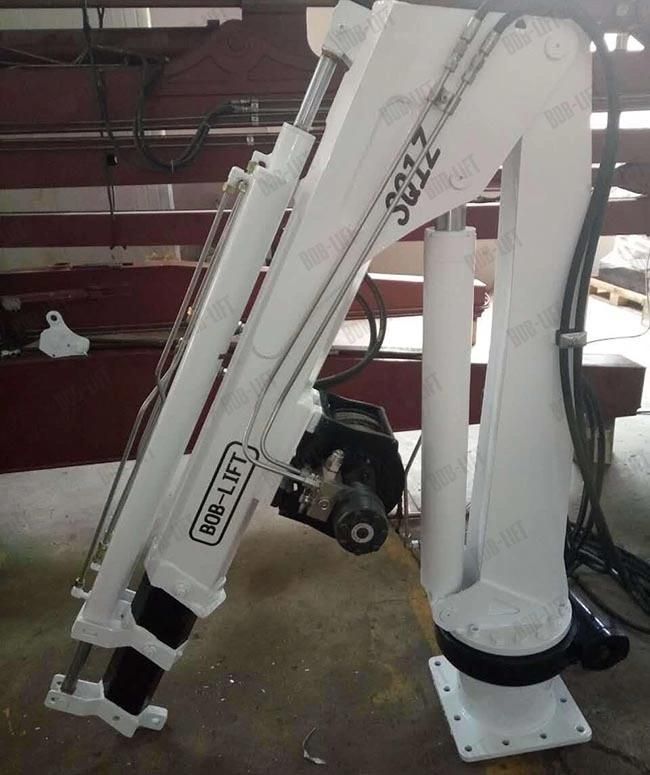

4).Product photos---Marine Deck Crane

5).Shipping details

6).Certificates
