CE Approved 7.5m Self-Propelled Double Mast Vertical Lift with Hydraulic Turning Wheel
Chenlift (Suzhou) Machinery Co., Ltd.- After-sales Service：Can Post Spare Parts Within 1 Week
- Warranty：One Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Moving
Base Info
- Model NO.：MG750-2S
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Platform Height：7.5m
- Working Height：9.5m
- Loading Capacity：200kg
- Platform Size：1.00*0.70m
- Lifting Motor：24V,2kw
- Overall Weight：1200kg
- Power Source：2*12V,115ah
- Transport Package：PVC Film Wrapped in Pallet
- Specification：1.50*1.00*1.99m
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Basic Info.
Model NO. MG750-2S Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 7.5m Working Height 9.5m Loading Capacity 200kg Platform Size 1.00*0.70m Lifting Motor 24V/2kw Overall Weight 1200kg Power Source 2*12V/115ah Transport Package PVC Film Wrapped in Pallet Specification 1.50*1.00*1.99m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per YearProduct Description
Self-Propelled Economical Vertical LiftSelf-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

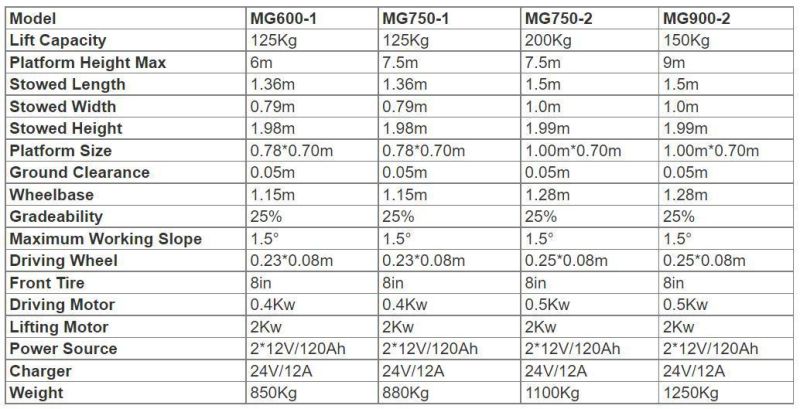

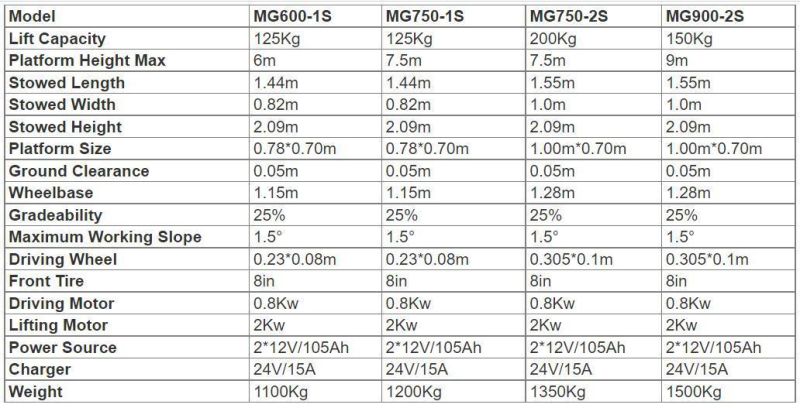

Specification:
Swivel Turning Type
Hydraulic Turning Type
Details:

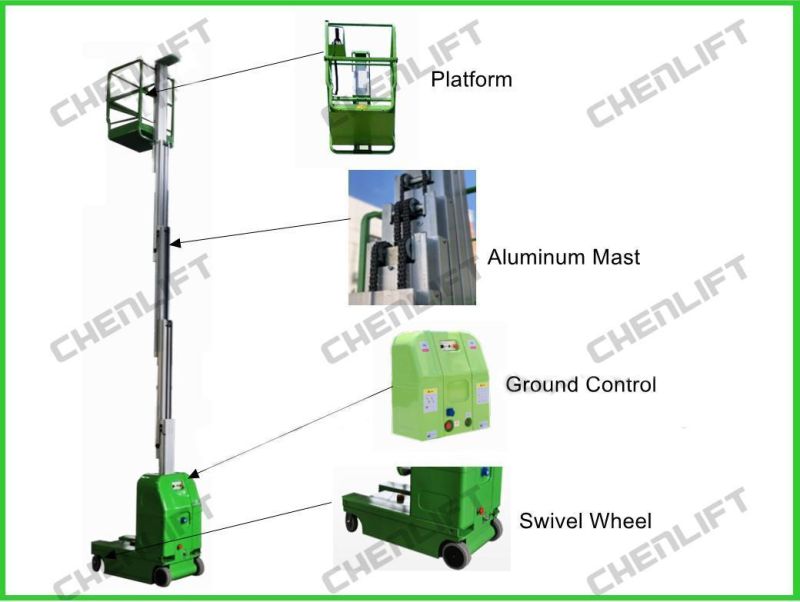

Swivel Turning Type

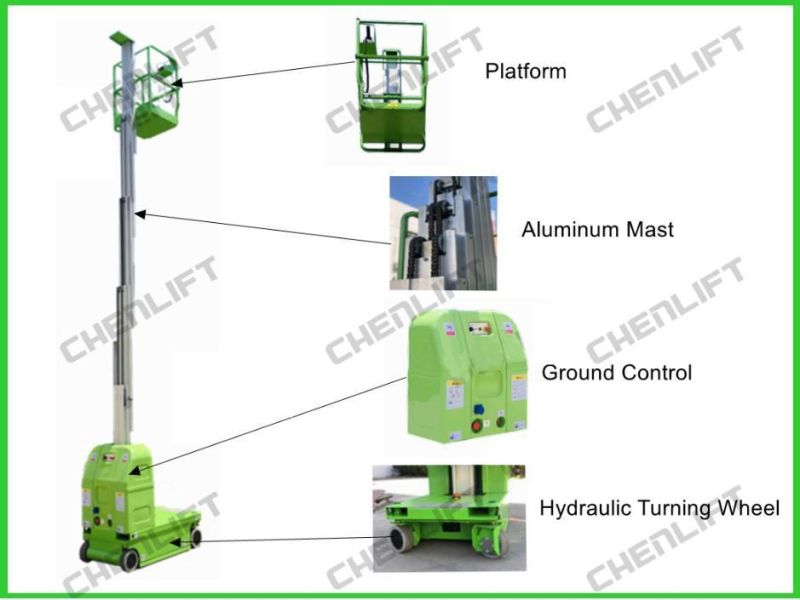

Hydraulic Turning Type
Standard Configuration for Self-Propelled Economical Vertical Lift
1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates
Factory Equipment
Customer Visiting

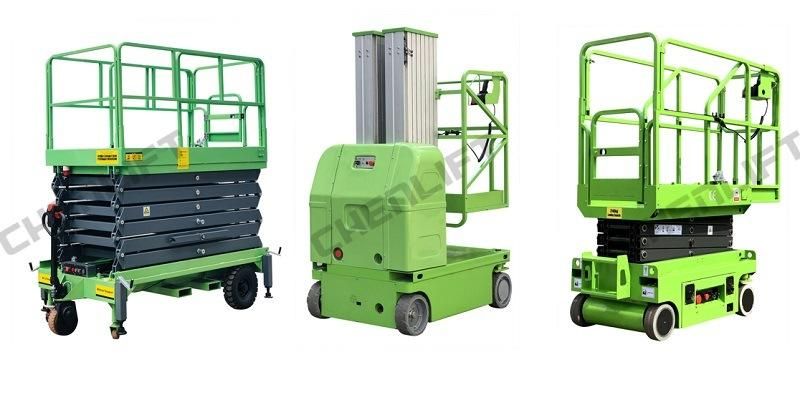

Other Related Products
