• Model NO.：MG900-2
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Platform Height：9m
• Working Height：11m
• Loading Capacity：150kg
• Platform Size：1.00*0.70m
• Lifting Motor：24V,2kw
• Gradeability：25%
• Weight：1250kg
• Power Source：2*12V,115ah
• Driving Motor：2*24V,0.5kw
• Transport Package：PVC Film Wrapped in Pallet
• Specification：1.5*1.00*2.08m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MG900-2 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 9m Working Height 11m Loading Capacity 150kg Platform Size 1.00*0.70m Lifting Motor 24V/2kw Gradeability 25% Weight 1250kg Power Source 2*12V/115ah Driving Motor 2*24V/0.5kw Transport Package PVC Film Wrapped in Pallet Specification 1.5*1.00*2.08m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

9m Platform Height 150kg Load Self Propelled Vertical Lift with Swivel Wheel
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

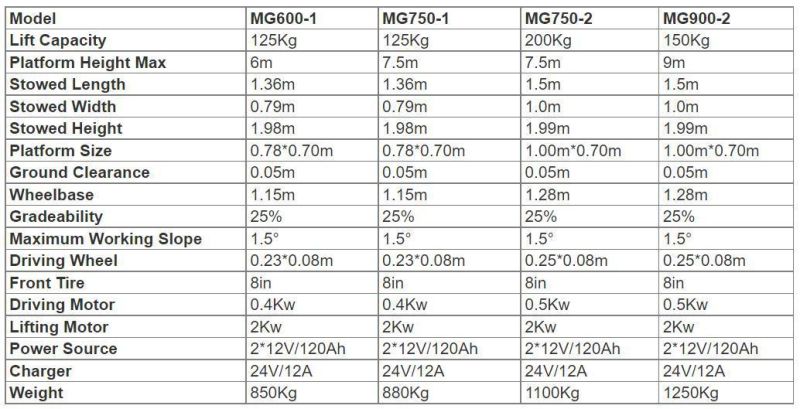

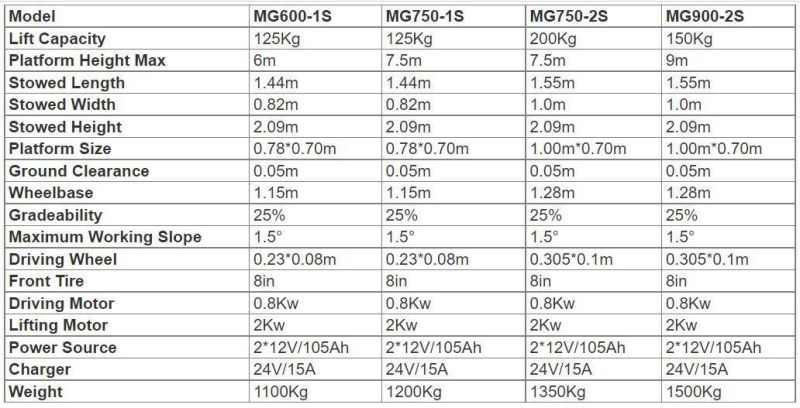

Specification:
Swivel Turning Type

Hydraulic Turning Type

Details:

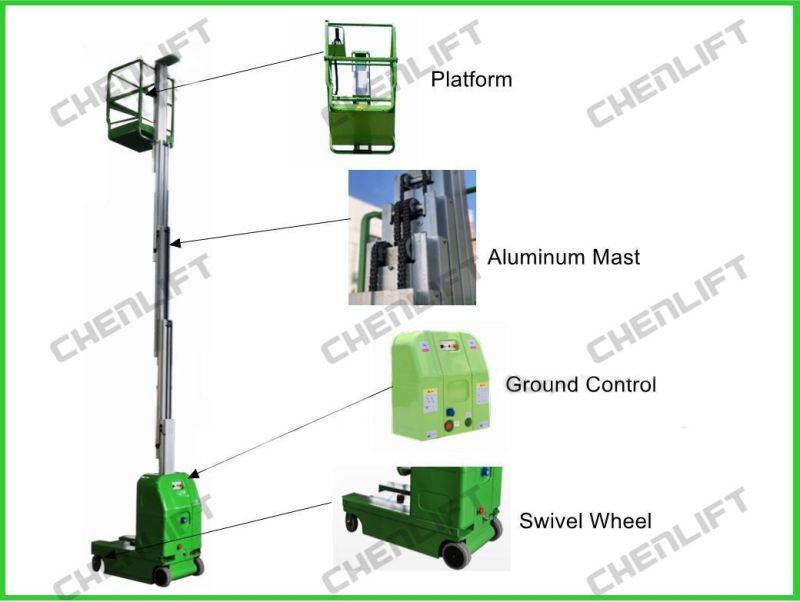

Swivel Turning Type

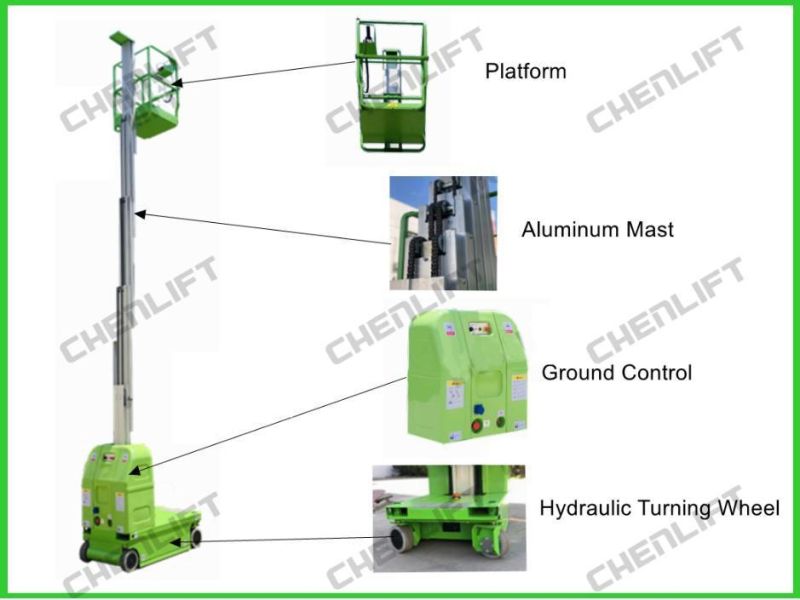

Hydraulic Turning Type

Standard Configuration for Self-Propelled Economical Vertical Lift
1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting


Optional Configuration for Self-Propelled Economical Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking

Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
