Lifting Chain Hoist Electric Chain Hoist Mode Hoist
Dele Electrical (Hangzhou) Co., Ltd.- After-sales Service：Support
- Warranty：12months
- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
Base Info
- Model NO.：DLXDM0301-2S
- Maximum Lifting Height：3m
- Chain Falls：1
- Certification：CE, SGS
- Condition：New
- Color：Yellow
- Deliverly Date：15-30days
- MOQ：1piece
- OEM：Yes
- Transport Package：Wooden Case
- Specification：3 ton
- Trademark：DELE
- Origin：Made in Hangzhou of China
- HS Code：84251900
- Production Capacity：8000pieces,Per Month
Description
Lifting Motor Power (Kw) Rotation Speed(r/min) Phases Voltage(V) Frequency(Hz/s) DLXDM00501-2S 0.5 3 6.8 0.75 1440 3 200-600 50 DLXDM0101-2S 1 3 6.6 1.5 1440 3 200-600 50 DLXDM0102-2S 1 3 3.4 0.75 1440 3 200-600 50 DLXDM01501-2S 1.5 3 8.8 3.0 1440 3 200-600 50 DLXDM0201-2S 2 3 6.6 3.0 1440 3 200-600 50 DLXDM0202-2S 2 3 3.3 1.5 1440 3 200-600 50 DLXDM02501-2S 2.5 3 5.4 3.0 1440 3 200-600 50 DLXDM0301-2S 3 3 5.4 3.0 1440 3 200-600 50 DLXDM0302-2S 3 3 4.4 3.0 1440 3 200-600 50 DLXDM0303-2S 3 3 2.2 1.5 1440 3 200-600 50 DLXDM0502-2S 5 3 2.7 3.0 1440 3 200-600 50 DLXDM07503-2S 7.5 3 1.8 3.0 1440 3 200-600 50 DLXDM07503-2SD-SD 7.5 3 1.8&0.45 3.0 1440&360 3 200-600 50 DLXDM1004-2S 10 3 2.7 3.0×2 1440 3 200-600 50 DLXDM1004-2SD-SD 10 3 2.7&0.67 3.0×2 1440&360 3 200-600 50 DLXDM1506-2S 15 3 1.8 3.0×2 1440 3 200-600 50 DLXDM1506-2SD-SD 15 3 1.8&0.45 3.0×2 1440&360 3 200-600 50 DLXDM2008-2S 20 3 1.4 3.0×2 1440 3 200-600 50 DLXDM2008-2SD-SD 20 3 1.4&0.35 3.0×2 1440&360 3 200-600 50 DLXDM2510-2S 25 3 1.1 3.0×2 1440 3 200-600 50 DLXDM2510-2SD-SD 25 3 1.1&0.28 3.0×2 1440&360 3 200-600 50 DLXDM3012-2S 30 3 0.9 3.0×2 1440 3 200-600 50 DLXDM3012-2SD-SD 30 3 0.9&0.23 3.0×2 1440&360 3 200-600 50 DLXDM3514-2S 35 3 0.8 3.0×2 1440 3 200-600 50 DLXDM3514-2SD-SD 35 3 0.8&0.2 3.0×2 1440&360 3 200-600 50 I-Beam(mm) Diameter×Chain Fall Power(Kw) Rotation Speed(t/min) Trolley Speed(m/min) DLXDM00501-2S 0.4 1440 11/21 58-153 Φ6.3×1 DLXDM0101-2S 0.4 1440 11/21 58-153 Φ7.1×1 DLXDM0102-2S 0.4 1440 11/21 58-153 Φ6.3×2 DLXDM01501-2S 0.4 1440 11/21 58-153 Φ10.0×1 DLXDM0201-2S 0.4 1440 11/21 82-178 Φ10.0×1 DLXDM0202-2S 0.4 1440 11/21 82-178 Φ7.1×2 DLXDM02501-2S 0.75 1440 11/21 82-178 Φ11.2×1 DLXDM0301-2S 0.75 1440 11/21 100-178 Φ11.2×1 DLXDM0302-2S 0.75 1440 11/21 100-178 Φ10.0×2 DLXDM0303-2S 0.75 1440 11/21 100-178 Φ7.1×3 DLXDM0502-2S 0.75 1440 11/21 100-178 Φ11.2×2 DLXDM07503-2S 0.75 1440 11/21 100-178 Φ11.2×3 DLXDM07503-2SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ11.2×3 DLXDM1004-2S 0.75 1440 11/21 150-220 Φ11.2×4 DLXDM1004-2SD-SD 0.75&0.18 2880&720 11/21 150-220 Φ11.2×4 DLXDM1506-2S 0.75×2 1440 11 150-220 Φ11.2×6 DLXDM1506-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×6 DLXDM2008-2S 0.75×2 1440 11 150-220 Φ11.2×8 DLXDM2008-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×8 DLXDM2510-2S 0.75×2 1440 11 150-220 Φ11.2×10 DLXDM2510-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×10 DLXDM3012-2S 0.75×2 1440 11 150-220 Φ11.2×12 DLXDM3012-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×12 DLXDM3514-2S 0.75×2 1440 11 150-220 Φ11.2×14 DLXDM3514-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×14
Dual speeds
Lifting Motor Power (Kw) Rotation Speed(r/min) Phases Voltage(V) Frequency(Hz/s) DLXDM00501SD-SD 0.5 3 6.8&1.7 0.75 1440&360 3 200-600 50 DLXDM0101SD-SD 1 3 6.6&1.65 1.5 1440&360 3 200-600 50 DLXDM0102SD-SD 1 3 3.4&0.85 0.75 1440&360 3 200-600 50 DLXDM0150SD-SD 1.5 3 8.8&2.2 3.0 1440&360 3 200-600 50 DLXDM0201SD-SD 2 3 6.6&1.65 3.0 1440&360 3 200-600 50 DLXDM0202SD-SD 2 3 3.3&0.82 1.5 1440&360 3 200-600 50 DLXDM0250SD-SD 2.5 3 5.4&1.35 3.0 1440&360 3 200-600 50 DLXDM0301SD-SD 3 3 5.4&1.35 3.0 1440&360 3 200-600 50 DLXDM0302SD-SD 3 3 4.4&1.1 3.0 1440&360 3 200-600 50 DLXDM0303SD-SD 3 3 2.2&0.55 1.5 1440&360 3 200-600 50 DLXDM0502SD-SD 5 3 2.7&0.67 3.0 1440&360 3 200-600 50 DLXDM07503-2S 7.5 3 1.8 3.0 1440 3 200-600 50 DLXDM07503-2SD-SD 7.5 3 1.8&0.45 3.0 1440&360 3 200-600 50 DLXDM1004-2S 10 3 2.7 3.0×2 1440 3 200-600 50 DLXDM1004-2SD-SD 10 3 2.7&0.67 3.0×2 1440&360 3 200-600 50 DLXDM1506-S 15 3 1.8 3.0×2 1440 3 200-600 50 DLXDM1506-2SD-SD 15 3 1.8&0.45 3.0×2 1440&360 3 200-600 50 DLXDM2008-2S 20 3 1.4 3.0×2 1440 3 200-600 50 DLXDM2008-2SD-SD 20 3 1.4&0.35 3.0×2 1440&360 3 200-600 50 DLXDM2510-2S 25 3 1.1 3.0×2 1440 3 200-600 50 DLXDM2510-2SD-SD 25 3 1.1&0.28 3.0×2 1440&360 3 200-600 50 DLXDM3012-2S 30 3 0.9 3.0×2 1440 3 200-600 50 DLXDM3012-2SD-SD 30 3 0.9&0.23 3.0×2 1440&360 3 200-600 50 DLXDM3514-2S 35 3 0.8 3.0×2 1440 3 200-600 50 DLXDM3514-2SD-SD 35 3 0.8&0.2 3.0×2 1440&360 3 200-600 50 I-Beam(mm) Diameter×Chain Fall Power(Kw) Rotation Speed(t/min) Trolley Speed(m/min) DLXDM00501SD-SD 0.4&0.1 2880&720 5&20 58-153 Φ6.3×1 DLXDM0101SD-SD 0.4&0.1 2880&720 5&20 58-153 Φ7.1×1 DLXDM0102SD-SD 0.4&0.1 2880&720 5&20 58-153 Φ6.3×2 DLXDM01501SD-SD 0.4&0.1 2880&720 5&20 58-153 Φ10.0×1 DLXDM0201SD-SD 0.4&0.1 2880&720 5&20 82-178 Φ10.0×1 DLXDM0202SD-SD 0.4&0.1 2880&720 5&20 82-178 Φ7.1×2 DLXDM02501SD-SD 0.75&0.18 2880&720 5&20 82-178 Φ11.2×1 DLXDM0301SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ11.2×1 DLXDM0302SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ10.0×2 DLXDM0303SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ7.1×3 DLXDM0502SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ11.2×2 DLXDM07503-2S 0.75 1440 11/21 100-178 Φ11.2×3 DLXDM07503-2SD-SD 0.75&0.18 2880&720 5&20 100-178 Φ11.2×3 DLXDM1004-2S 0.75 1440 11/21 150-220 Φ11.2×4 DLXDM1004-2SD-SD 0.75&0.18 2880&720 11/21 150-220 Φ11.2×4 DLXDM1506-2S 0.75×2 1440 11 150-220 Φ11.2×6 DLXDM1506-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×6 DLXDM2008-2S 0.75×2 1440 11 150-220 Φ11.2×8 DLXDM2008-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×8 DLXDM2510-2S 0.75×2 1440 11 150-220 Φ11.2×10 DLXDM2510-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×10 DLXDM3012-2S 0.75×2 1440 11 150-220 Φ11.2×12 DLXDM3012-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×12 DLXDM3514-2S 0.75×2 1440 11 150-220 Φ11.2×14 DLXDM3514-2SD-SD (0.75&0.18)×2 2880&720 5&20 150-220 Φ11.2×14
Certifications
Details Images

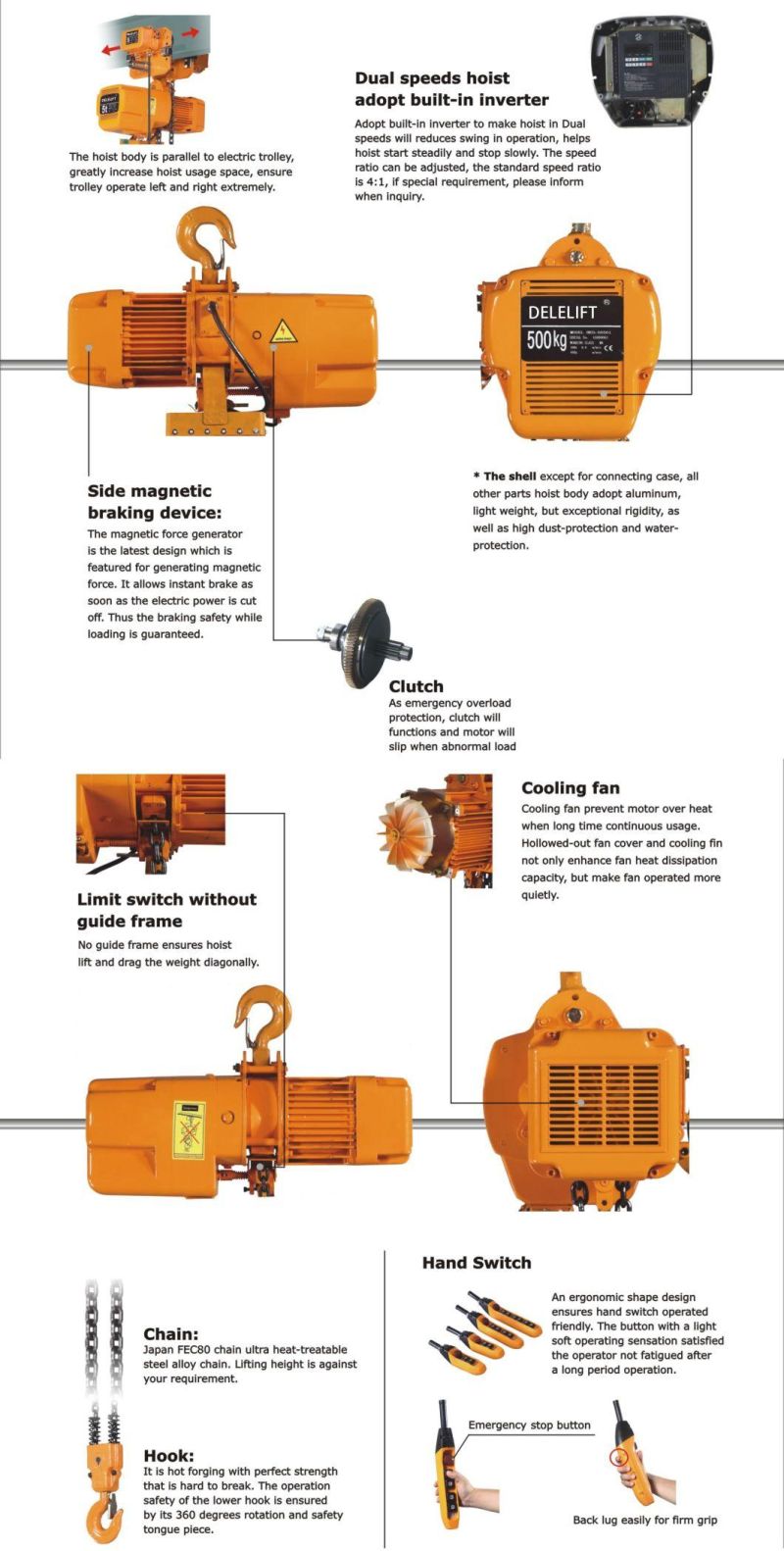

DLXDM series hoists Features

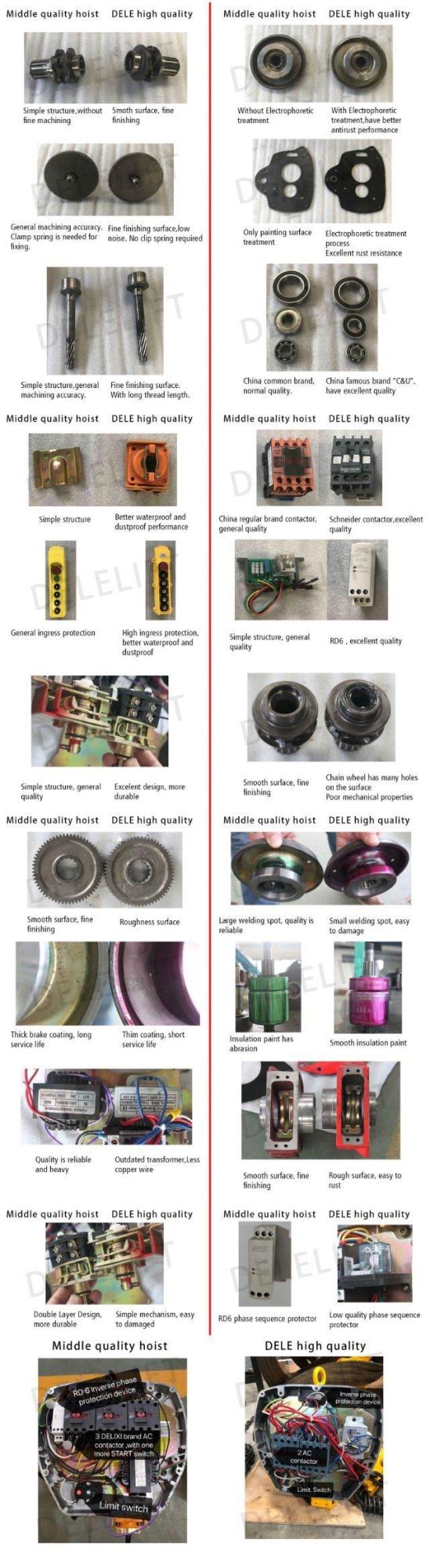

The Quality comparison of spare parts

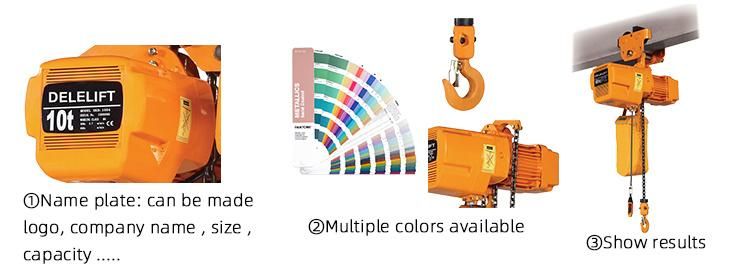

Customized Service
Factory

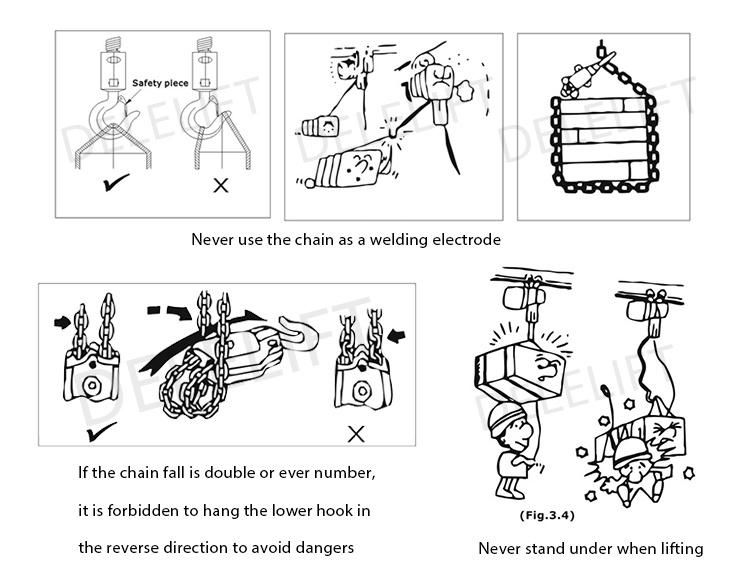

Usage
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
