• Model NO.：BG
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Construction Site, Boat,Vessel, Shipyard, etc
• Warranty：12 Months
• Gear Type：Planetary Gear
• Color：Customized
• Cable Speed：0-40m,Min or Customized
• Rope Capacity：Customer Requirement
• Transport Package：Wooden Package & Container
• Specification：20KN, 30KN, 50KN, 80KN, 100KN, etc.
• Trademark：NYBON
• Origin：Henan Province, China
• HS Code：84253990
• Production Capacity：100 Sets Per Month

Hydraulic winch installation

1, winch installation location and direction, allowing the drum axis as the center, any conversion position.
2, install the base plate bolt hole location installation. Note: The number and size of fixing bolts must comply with the requirements and
must not be reduced or replaced with small diameter bolts.
3, winch floor installation, must be fixed and reliable, shall not be bent in use, the installation of the flatness of not more than 0.5mm,
otherwise it will affect the smooth operation of the winch,
4, after the winch is installed, the base contact surface should be level and force evenly.
5, to ensure that the vertical axis of the drum and the pulley vertical, vertical axis of the drum and the pulley angle of not more than 1.5 degrees.
6, winch oil control valve should be a spring reset H-type three-way four-way valve, control valve installation location, according to the needs
of the operation on the appropriate location.
7, brake valve (ie, sequence valve) to open the pressure should be between 6 ~ 8Mpa, winch factory, the manufacturer has been adjusted,
please do not change.
8, winch use a wide range of occasions, single-use, the hydraulic system pressure, flow must be consistent with the requirements of the
instructions, otherwise it will affect the service life of the winch. According to the needs of users, the factory can provide supporting power source,
control valves and related pipelines.
9, under normal circumstances, when the operator facing the motor back to the operator relatively close to the port to enhance (into) the oil port.
This port can be based on the specific operator habits. But once you decide not to change it.
10, Before formal use, you must carefully check the connection of the pipeline, lubricating oil level, ventilation holes, system pressure, etc.
After everything is normal, turn back and forth for 2 minutes.
11, winch rope fixed, the lifting, the rope must be wound on the drum first 5 laps or more.
12, do not stampede, collision winch metal pipelines and joints, so as not to damage the winch.
13, winch lifting heavy objects, pay special attention to observe the motor drain port pressure gauge, such as back pressure over 1.4MPa,
the system must be carefully back to the oil return line to ensure smooth.
At present, the device can not be used to carry people.

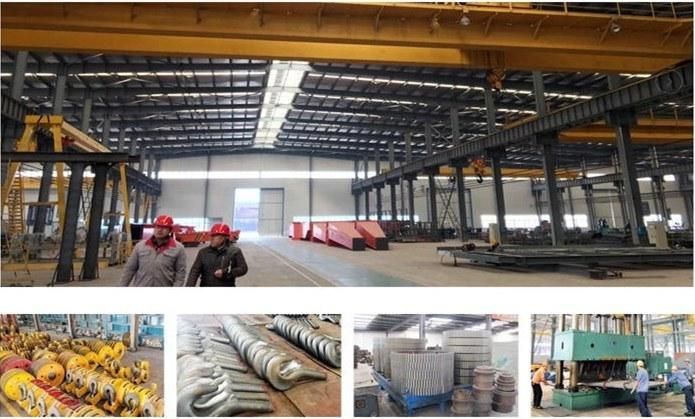

Nybon is a group of Lifting Business with Rich Experience, sercving abroad range of customers, including factory lifting
work, manufacturing and process industries, shipyards, ports and terminals. Regardless of your lifting needs, Nybon is
committed to providing you with lifting equipment and services that increase the value and effectiveness of your business

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

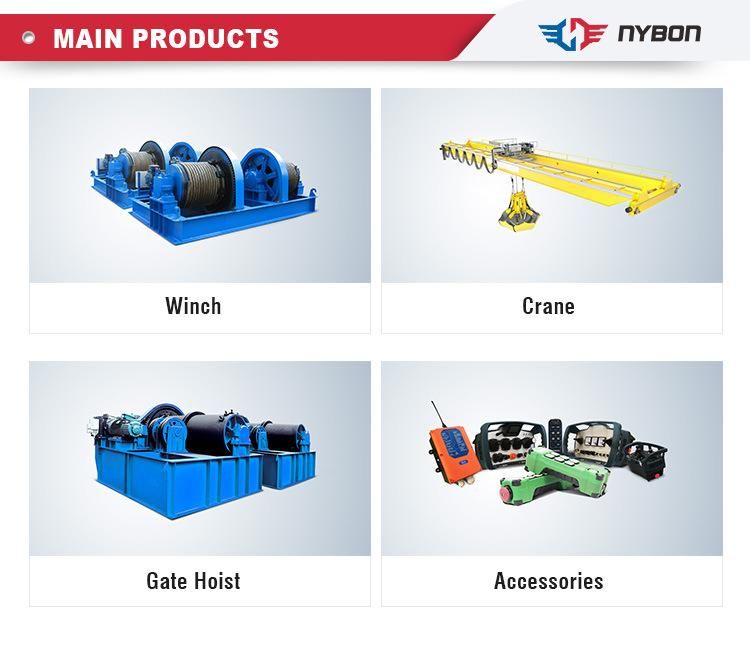

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
