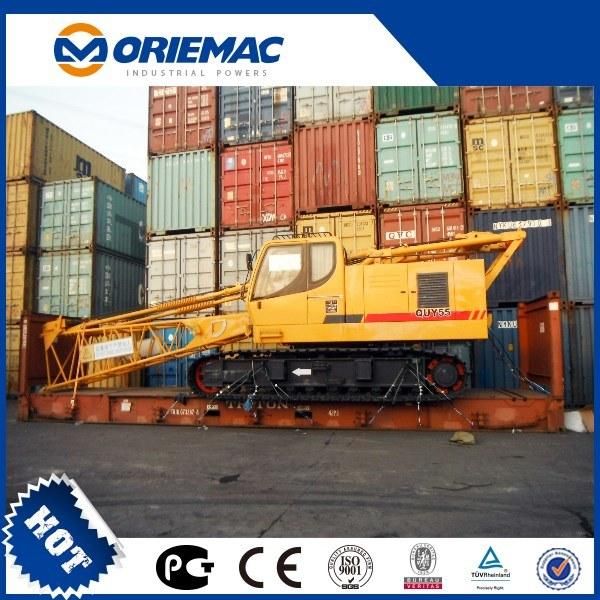

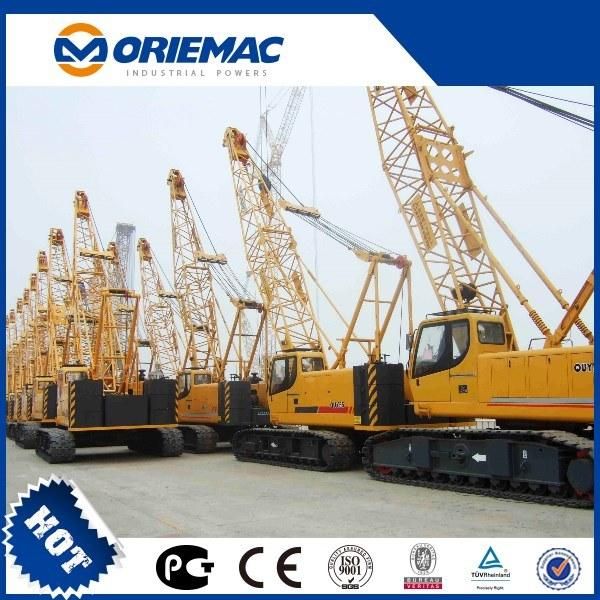

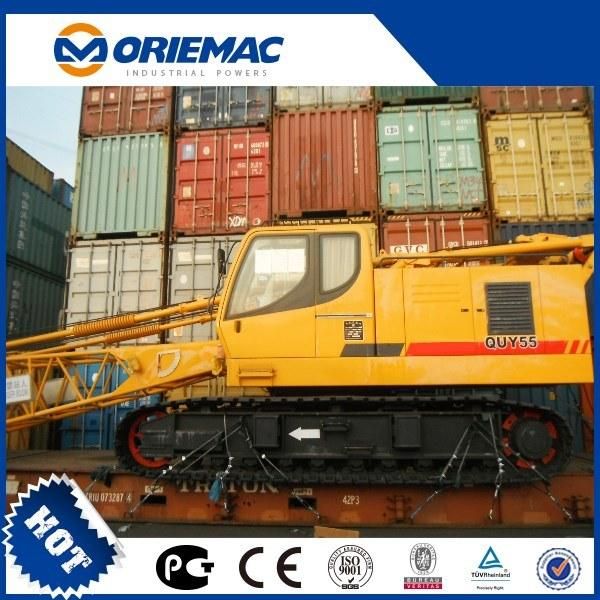

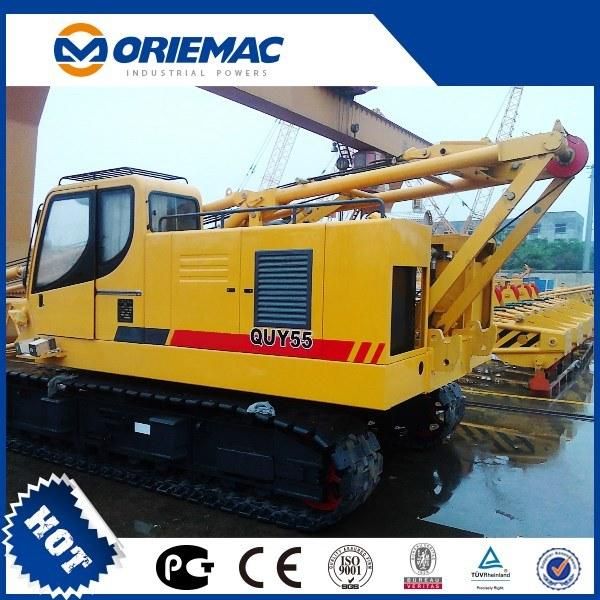

Hoisting Construction Machinery 55 Ton Hydraulic Crawler Crane Xgc55
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Max. Rated Lifting Capacity：55t
- Max Load Moment：1994kn
- Gradeability：40%
- Fixed Jib Length：9.15~15.25m
- Overall Weight：48.5m
- Size：11.5*3.47*3.4m
Base Info
- Model NO.：XGC55
- Hook：55 Tons ,32 Tons , 16 Tons , 8 Tons
- Engine Power：125kw
- Warranty：1 Year or 2000 Working Hours
- Transport Package：Nude Package
- Specification：ISO, CE, GOST
- Trademark：ORIEMAC
- Origin：Jiangsu, China(Mainland)
- HS Code：84295212
- Production Capacity：800PCS,Month
Description
Max. rated lifting capacityBasic boom t 55 Fixed jib t 5 Max load moment KN.m 1994 Boom length m 13~52 Boom luffing angle ° -3~80 Fixed jib length m 9.15~15.25 Max. single line speed for hoist mechanism (no load, at 5th layer ) m/min 121 Max. single line speed for boom luffing mechanism(at 1st layer) m/min 52 Max. swing speed r/min 1.5 Max. travel speed km/h 1.35 Gradeability % 40 Average ground pressure MPa 0.069 Engine power kW 125/158 Overall weight(main lifting hook,13m boom) t 48.5 Max. single unit weight for transportation t 31 Max. single unit dimensions for transportation(L×W×H) m 11.5×3.47×3.4
