• Model NO.：WL0.25-3.6
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Model：Wl0.25-3.6
• Loading Capacity：250kg
• Max. Lifting Height：3.6m
• Min. Lifting Height：60mm
• Self-Weight：850kg
• Platform Size：1420*900mm
• Warranty：12 Months
• Certificate：Ce
• Voltary：220V ,240V,380V,415V, Optional
• Control：Post Control, Platform Control, Remote Control
• Transport Package：Stretch Film & Plywood Case Outside of Wheelchair
• Specification：5100*1430*1400MM
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. WL0.25-3.6 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Model Wl0.25-3.6 Loading Capacity 250kg Max. Lifting Height 3.6m Min. Lifting Height 60mm Self-Weight 850kg Platform Size 1420*900mm Warranty 12 Months Certificate Ce Voltary 220V /240V/380V/415V, Optional Control Post Control, Platform Control, Remote Control Transport Package Stretch Film & Plywood Case Outside of Wheelchair Specification 5100*1430*1400MM Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 20 Units Per Month

Product Description

Product Detail

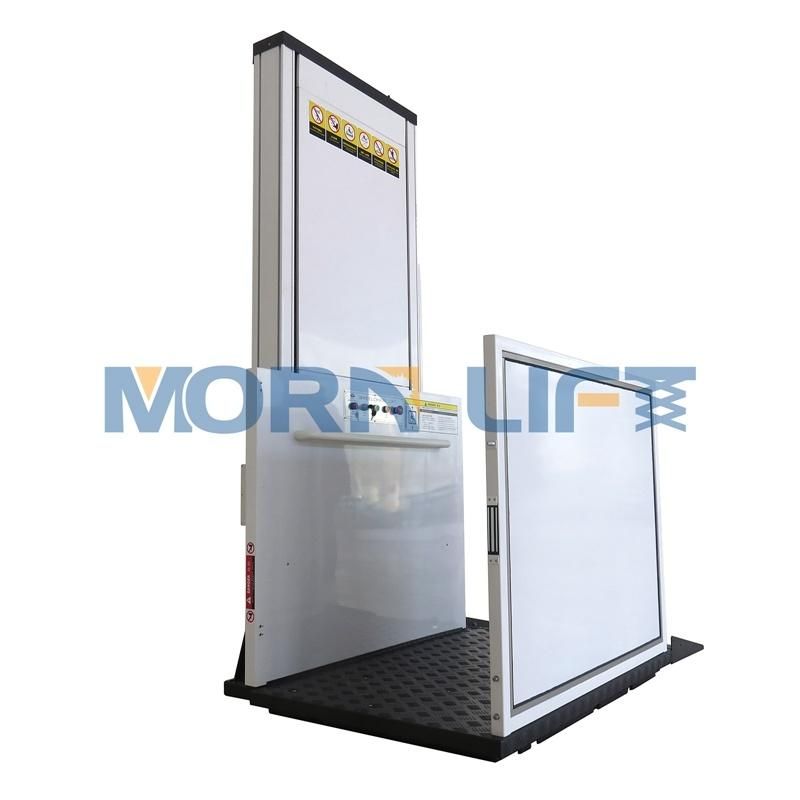

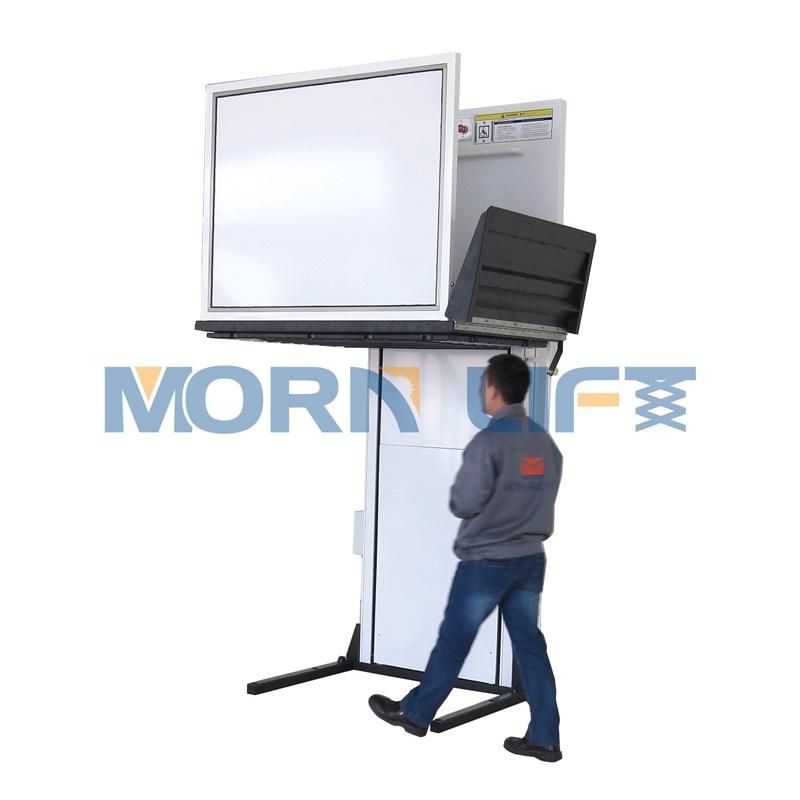

Outdoor wheelchair hydraulic platform lift

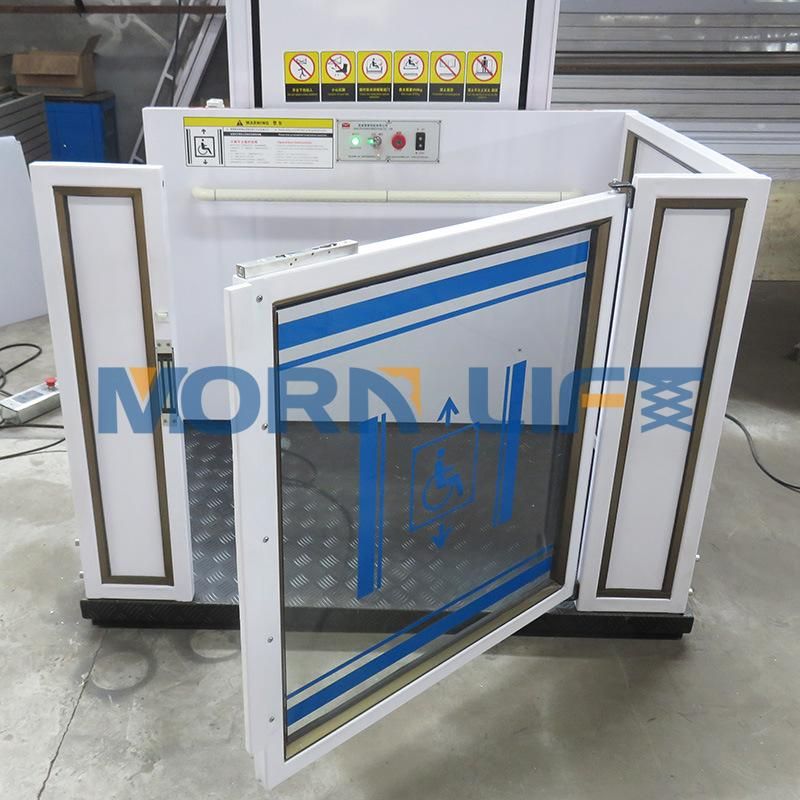

Our vertical hydraulic platform wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system, and easy-to-use operating controls.
The platform walls and the platform gate travel with the platform creating a barrier around the passenger. This wheelchair lift can be installed with little to no site modifications.
Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

Platform size	1420x900mm
Min Platform height	80mm
Speed	60mm/s
Lift height	1000 to 10000mm
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic or Screw type
Operation Panel	Stainless steel(Up Down and Emergency Stop)
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Non-pit installation	directly fixed to the concrete floor
Control Device	Calling box and remote controller
Optional	Landing door
	Customized-LOGO
	the customers' local Voltage

Safety devices for Vertical hydraulic platform wheelchair lift

   Safety sensor on the platform bottom
    It could make sure the machine stops immediately when touching something under the platform, especially there is children or pet. This could avoid many accidents because of sightless spot vision.



   The interlocking, electromagnetic lock and manual lock

    The machine would not start if the interlock is open.

    And the electromagnetic lock would make sure that the enter and exit door would not open when the machine up and down.

   The manual lock is a lock by hand after getting onto the lift to protect the safety in case of falling down.

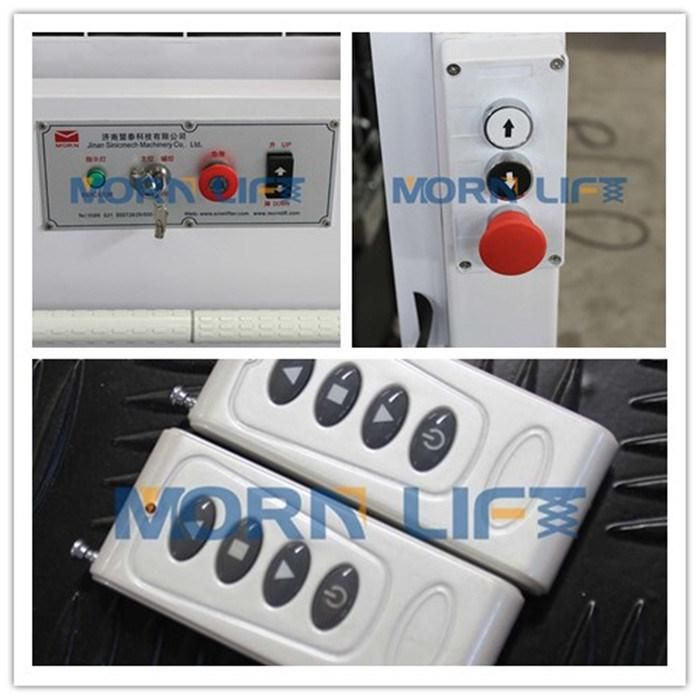

Three kinds of control: post control, platform control, remote control

Packing

Vertical hydraulic platform wheelchair lift will be packed into steel framed veneer case for safe shipment.



Application

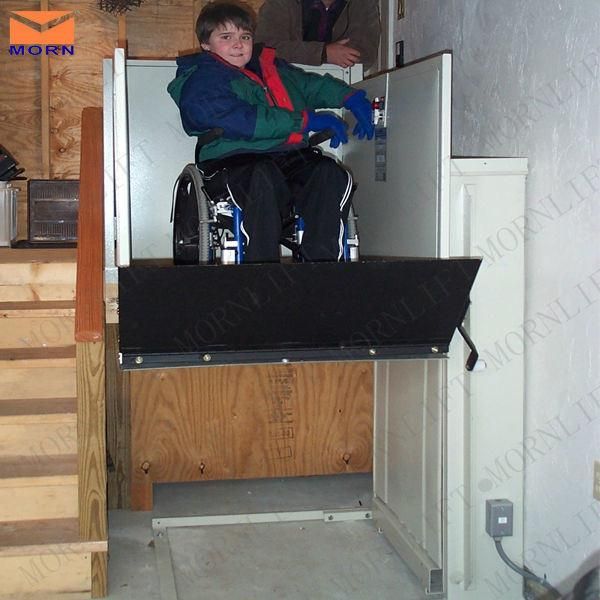

This lift is specifically designed to provide convenient and safe access for those in wheelchairs, or those who cannot use the stairs because of a physical disability.
