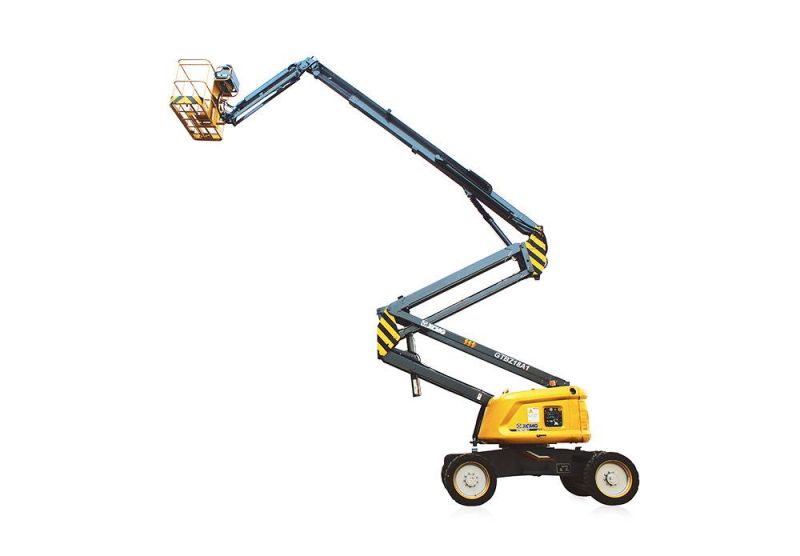

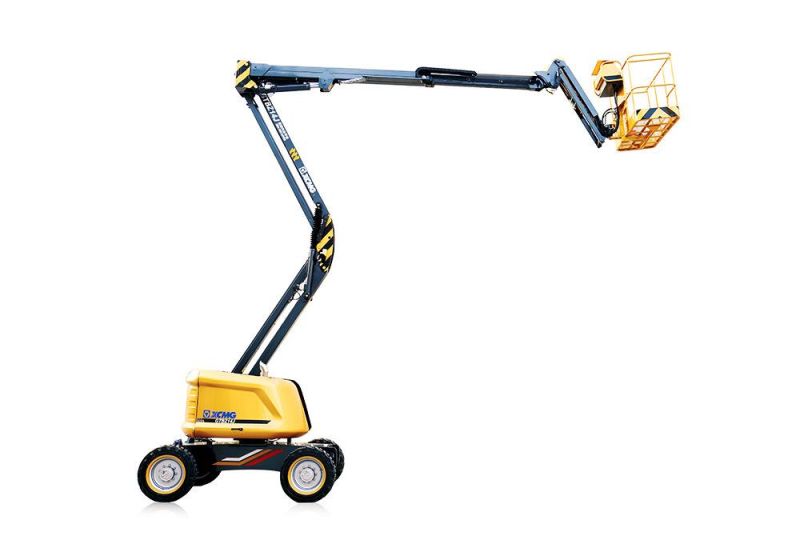

X C M G Gbtz28 28m Factory Produces High Quality Weight Lifting Platform Lift

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Screw Lift
  • Carrying Capacity：Middle-Level
  • Moves：Vehicular
  • Driven Type：Diesel
  • Running Mode：Moving

Base Info

  • Model NO.：GBTZ28
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Max. Working Height：28m
  • Max. Allowable Cargo：480kg
  • Max. Horizontal Reach：12.10m
  • Transport Package：Nude
  • Specification：28m
  • Trademark：DINGLI
  • Origin：China
  • HS Code：8705905900
  • Production Capacity：100units Per Month

Description

ItemUnitParametera Overall Lengthmm12100b Overall Widthmm2490c Overall Heightmm3050d Wheel Basemm3000Maximum Working Heightm27.9Maximum Platform Heightm26.2Maximum Working Rangem23.2Maximum Load Capacitykg340Boom Luffing Range °-5~+75Crank Arm Luffing Range °-65~+70Rotation Angle of Rotating Platform°360Maximum Tail Waggingmm1400Platform Sizemm2.4×0.9/1.8×0.8Rotation Angle of Platform °180Total Weightkg16600Maximum Travel Speedkm/h6.1Minimum Turning Radiusm6.7Minimum Ground Clearancemm320Maximum Grade Ability%45Tire Specification-385/65-22.5Engine Model-Foton CumminsQSF2.8-71HPRated Power of EnginekW/(r/min)53/(2200)
