• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Yellow, Red, Green, Customized
• Capacity：420kg
• Lifting Height：2400mm
• Machine Length：2840mm
• Machine Width：1180mm
• Turning Radius：2150mm
• Grade Ability：3%
• Wheel Size：Dia 250X80mm
• Brake Type：Electromagnetism Brake
• Drive Motor：1.2kw
• Lifting Motor：2.2kw
• Noise：<70 Dba
• Battery：24V,210A
• Rotation Angle：135 Degree
• Machine Weight：1000kg
• Transport Package：Timer Box
• Specification：5CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：47000

Basic Info.

Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Yellow, Red, Green, Customized Capacity 420kg Lifting Height 2400mm Machine Length 2840mm Machine Width 1180mm Turning Radius 2150mm Grade Ability 3% Wheel Size Dia 250X80mm Brake Type Electromagnetism Brake Drive Motor 1.2kw Lifting Motor 2.2kw Noise <70 Dba Battery 24V/210A Rotation Angle 135 Degree Machine Weight 1000kg Transport Package Timer Box Specification 5CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 47000

Product Description

420kg 600KG 800KG Self Propelled Counter Balanced Oil Drum Lifter
  Introduction:
1.This equipment is suitable for handling, lifting, loading and unloading of 55 gallon steel drums. The equipment adopts a dedicated walking control system for imported electric vehicles. Stable walking, lightweight and flexible, it can be operated by one person.
2.Man-machine multi-function control handle, walking stepless speed governor, high power reversing switch, integrated hydraulic pump station, high power walking drive wheel.
Loaded pedals reduce operator fatigue
3.Electro-hydraulic holding clamp, electro-hydraulic flip

Model		ST-600	ST-600A	ST-600B
Drive Type		Electric	Electric	Electric
Clamp and Rotate		Electric clamping& electric rotating	Manual clamping& electric rotating	Electric lifting& eagle-grip gator
Load Capacity	Kg	650	650	650
Lifting Height	mm	2400	2400	2400
Overall Length	mm	2290	2360	2050
Overall Width	mm	1180	1030	980
Overall Height	mm	1870	1870	1870
Turning Radius	mm	1840	1910	1710
Max Grade ability	%	3/5	3/5	3/5
Driving Wheel Size	mm	φ250*80	φ250*80	φ250*80
Tire		Polyurethane	Polyurethane	Polyurethane
Brake Type		Electromagnetic braking	Electromagnetic braking	Electromagnetic braking
Driving Motor	kw	1.2	1.2	1.2
Lifting Motor	kw	2.2	2.2	2.2
Noise Level	db(A)	<70	<70	<70
Battery	V/A	24/30	24/30	24/30
Charger	V/Ah	24/210	24/210	24/210
Tilting Angle	°	135 / 175	180	/
Net Weight	Kg	890	692	635
Gross Weight	Kg	940	742	680
Packing Size	mm	1800*1190*2050	1800*1190*2050	1800*990*2050

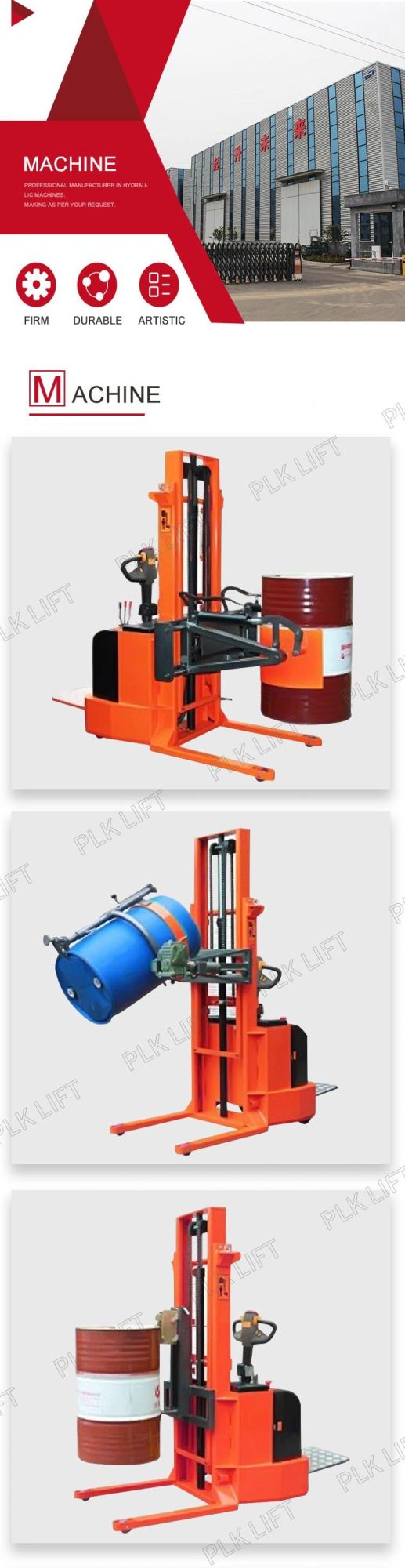

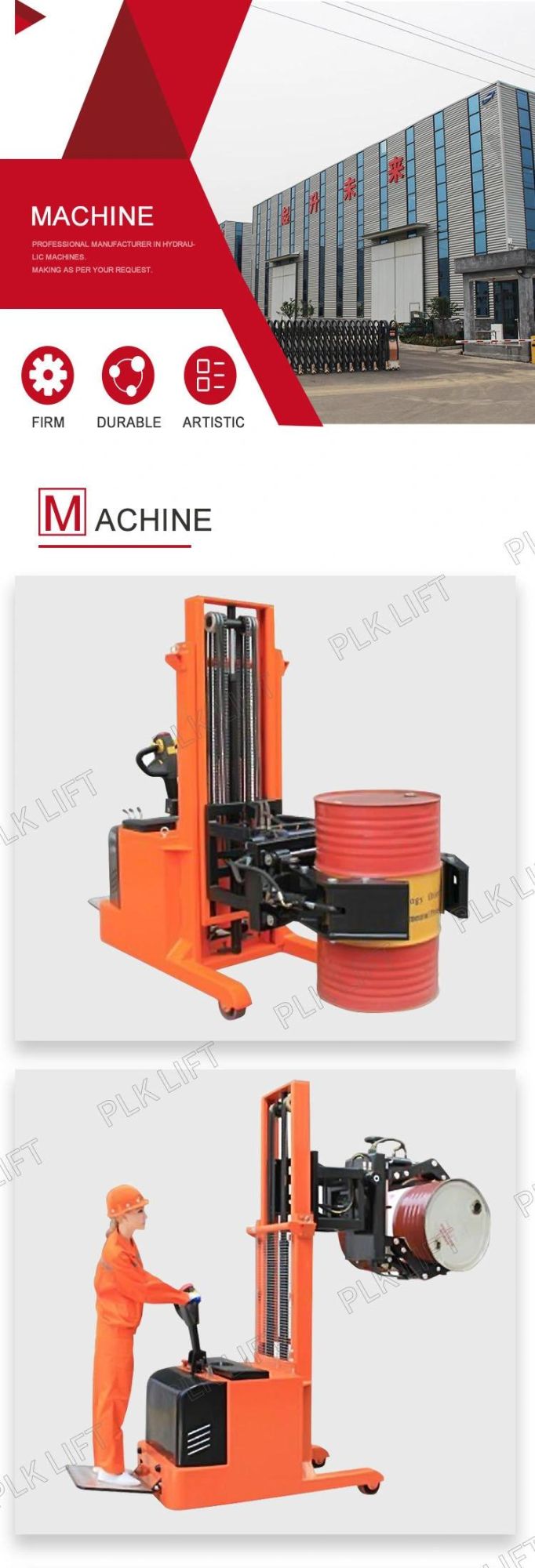

Photos Display:

Our Service:1.We can design the customerized aerial scissor man lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric scissor lift table break down to help you repair.
6.Parts of aerial scissor man lift can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer  buy parts once it break down?
The aerial scissor man lift adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the aerial scissor man lift.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

Factory Show:
