3m 4.5m 300kg Hydraulic Electric Self Propelled Order Picker

Jinan PLK Machinery Co., Ltd.

After-sales Service：Free Spare Parts Replacement
Warranty：1 Year
Motor：1.6kw
Max. Lifting Height：2700mm, 3300mm, 4000mm, 4500mm
Rated Loading Capacity：300kg
Platform Size：600*640mm

Base Info

Model NO.：OP3
Max.Drive Speed (Platform Stowed)：4.0 Km,H
Max.Drive Speed (Platform Elevated)：1.6 Km,H
Min.Turning Radius：1500mm
Max.Climbing Capacity：15~20%
Driving Wheel Size：230*80mm
Caster Size：6mm
Driving Motor：2*24V , 0.4kw
Lifting Motor：24V ,1.6kw
Battery：2*12V , 150ah
Charger：24V , 15A
Machine Weight：400kg - 800kg
Transport Package：Wrapped with Stretch Film
Specification：1530*700*1830
Trademark：PLK LIFT
Origin：China
HS Code：8428909090
Production Capacity：5000

Description

Overall Heightmm1830213018402000Overall Net Weightkg430450660680

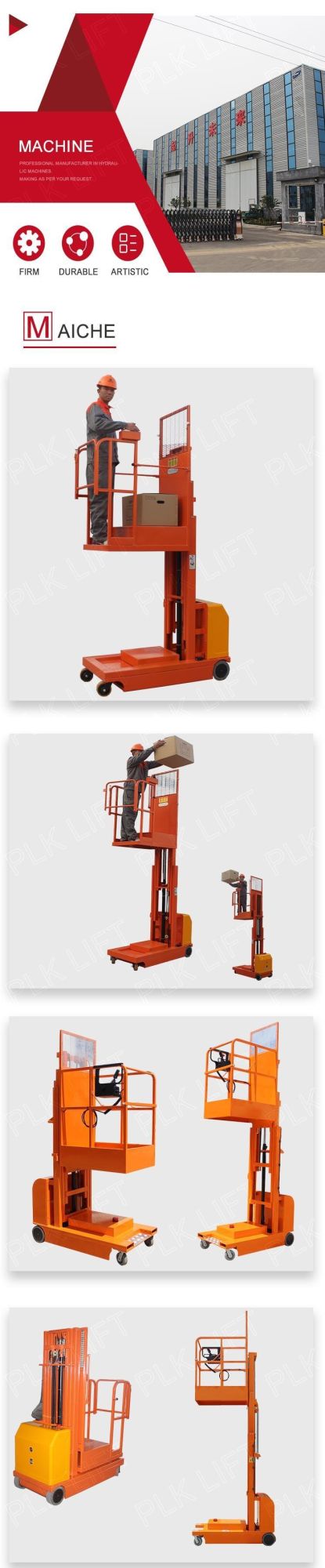

Product Show

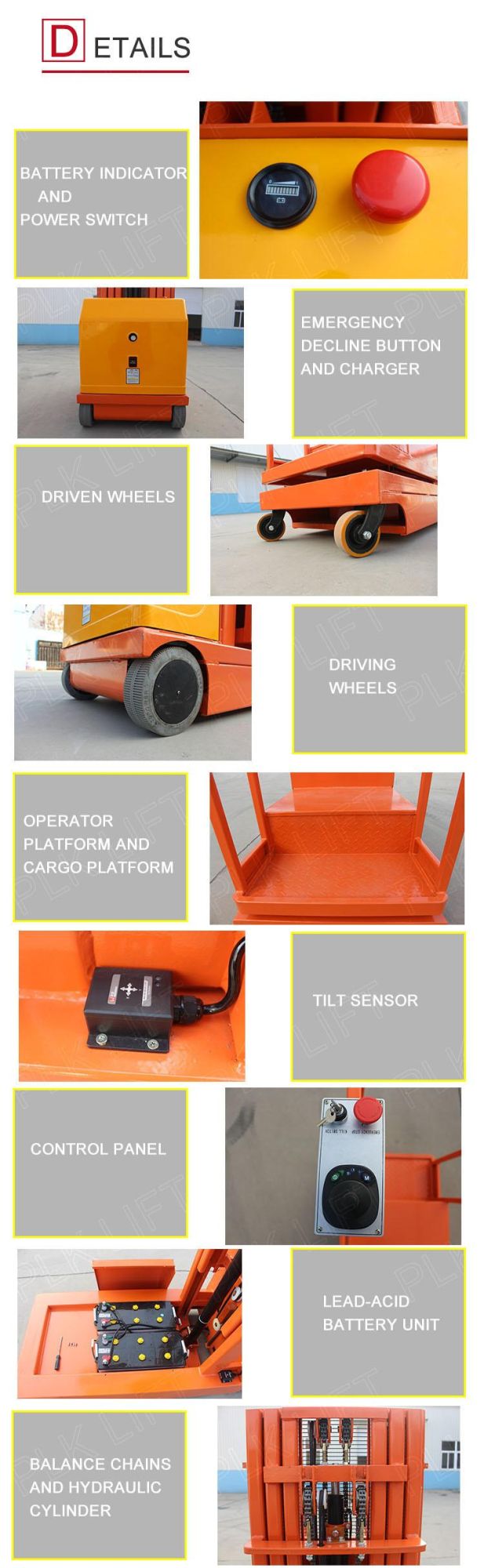

Details Show

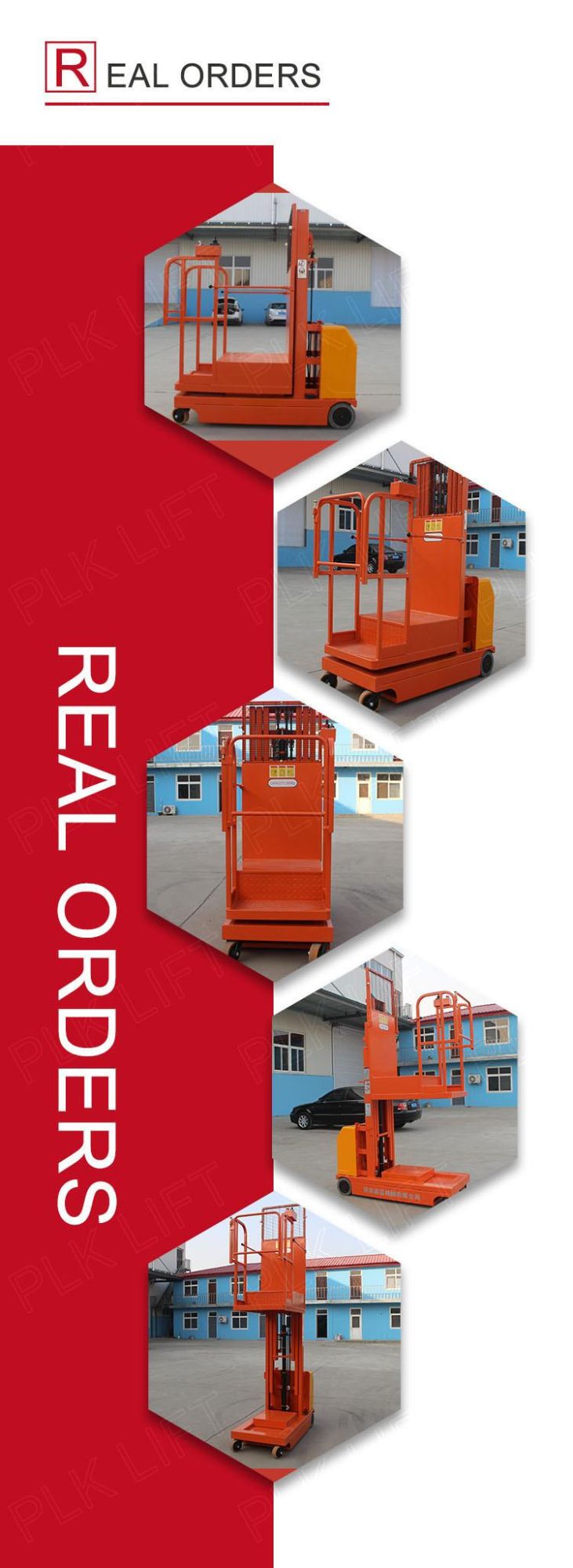

Real Order Show

Welcome to visit our factory and place the order with us
