Oriemac New 4X4 Drive 18m Diesel Articulated Boom Lifting Platform Xga18K for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Construction
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
Base Info
- Model NO.：XGA18K
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Model：Xga18K
- Weight：8700kg
- Engine：Yuchai Engine
- Traveling Motor：Danfos,Sunbun
- Maximum Working Range：8m
- Maximum Load Capacity：230kg
- Platform Size：1830X760X1150mm
- Maximum Travel Speed：5.5km,H
- Transport Package：40′hq Container
- Specification：CE, ISO
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- Production Capacity：1000unit,Month
Description
Basic Info.
Model NO. XGA18K Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Model Xga18K Weight 8700kg Engine Yuchai Engine Traveling Motor Danfos/Sunbun Maximum Working Range 8m Maximum Load Capacity 230kg Platform Size 1830X760X1150mm Maximum Travel Speed 5.5km/H Transport Package 40′hq Container Specification CE, ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 1000unit/MonthProduct Description
ORIEMAC New 4x4 Drive 18m Diesel Articulated Boom Lifting Platform XGA18K for Sale

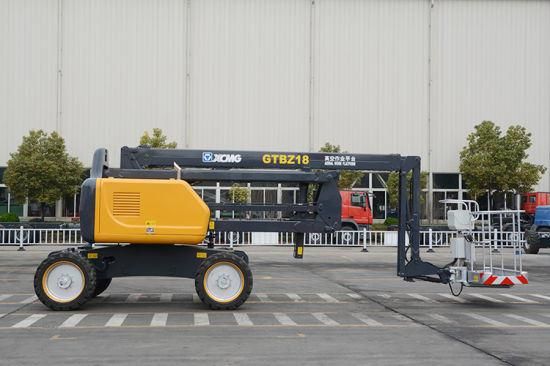

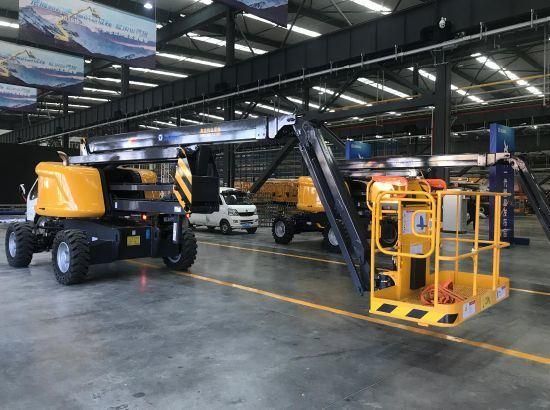

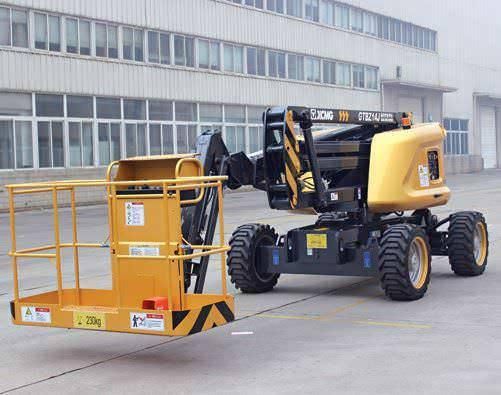

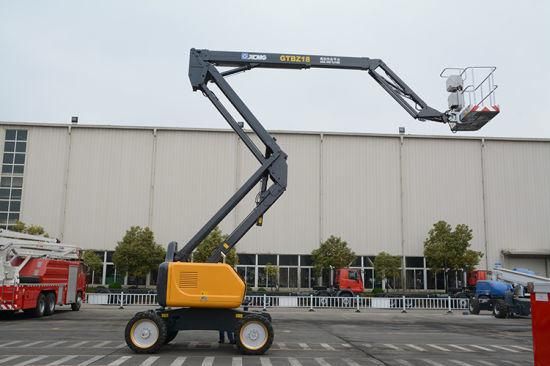

New 4x4 drive 18m articulated boom lifting platform XGA18K.
New 4x4 drive 18m articulated boom lifting platform XGA18K is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.
Articulated Boom Lift has models in the whole series, and the operation height covers 18m-26m and the maximum loading is 350kg.
The whole series meets the requirements of 4x4 drive, which has the advantages of zero emission and no noise, strong off-road performance, and can adapt to various complex and large-span working conditions.
Highlights:
1. Long endurance design.
2. Longer driving range capacity.
3. AC electric drive traveling technology steering differential control technology.
4. Independent emergency power source.
III. Configuration of XGA26 Main Parts
| Item | Unit | XGA18K |
| Overall length (stowed size) | mm | 7575 |
| Overall length (Transportation size) | mm | 5700 |
| Overall width | mm | 2320 |
| Overall height | mm | 2380 |
| Platform dimension | mm | 1830×760×1150 |
| Wheel base | mm | 2360 |
| Maximum working height | mm | 18015 |
| Platform maximum height | mm | 16015 |
| Maximum working radius | mm | 10270 |
| Maximum carrying mass | kg | 265 (Unrestricted) /350 (Restricted) |
| Travel speed (stowed) | km/h | 5.5 |
| Travel speed (elevated/extended) | km/h | 1 |
| No. 1 boom luffing range | ° | 0~65 |
| No. 2 boom luffing range | ° | -11~75 |
| Jib luffing range | ° | -60~70 |
| Turntable rotation angle | ° | 360 continuous |
| Tailswing | mm | 0 |
| Platform rotation angle | ° | 160 |
| Minimum turning radius (outside) | mm | ≤4700 |
| Minimum turning radius (inside) | mm | ≤1900 |
| Total mass | kg | 8700 |
| Maximum slope rating (counterweight uphill) | % | 45 |
| Maximum slope rating (counterweight downhill) | % | 30 |
| Maximum side slope rating | % | 25 |
| Engine model | Yuchai YCF3050-T302/Kubota V2403-M-DI-ET04e | |
| Engine rated power | kw | 36.8 /36.5 |
| Hydraulic tank capacity | L | 85 |
| Hydraulic system capacity | L | 170 |
| Fuel tank capacity | L | 65 |
