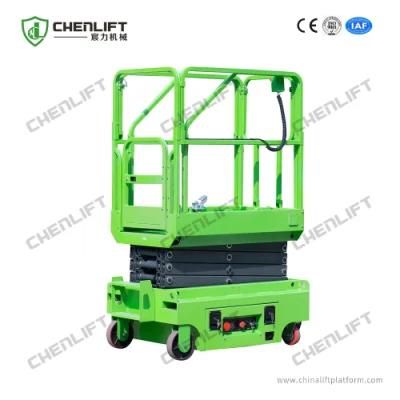

Small Width Electric Scissor Lift for Warehouse

Chenlift (Suzhou) Machinery Co., Ltd.

Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism：Lift Chain
Carrying Capacity：Middle-Level
Moves：Self-propelled
Driven Type：DC
Running Mode：Moving

Base Info

Model NO.：MX800SN
Feature：Explosion-Proof
Certification：CE, ISO 9001
Max Platform Height：8 M
Max Working Height：10 M
Load Capacity：230 Kg
Platform Size：2.27* 0.81 M
Platform Extension Length：0.9 M
Extension Load：113 Kg
Lift/Drive Motor：24V,3.3 Kw
Ground Clearance( Stowed/Raised)：0.1m,0.019m
Wheelbase：1.87 M
Gradeability：25%
Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
Specification：2.43*0.81* 1.87 m
Trademark：Bestmax
Origin：China
HS Code：8428909090
Production Capacity：3000 Units Per Year

Description

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw Details
Small Width Electric Scissor Lift for Warehouse

Small Width Electric Scissor Lift for Warehouse

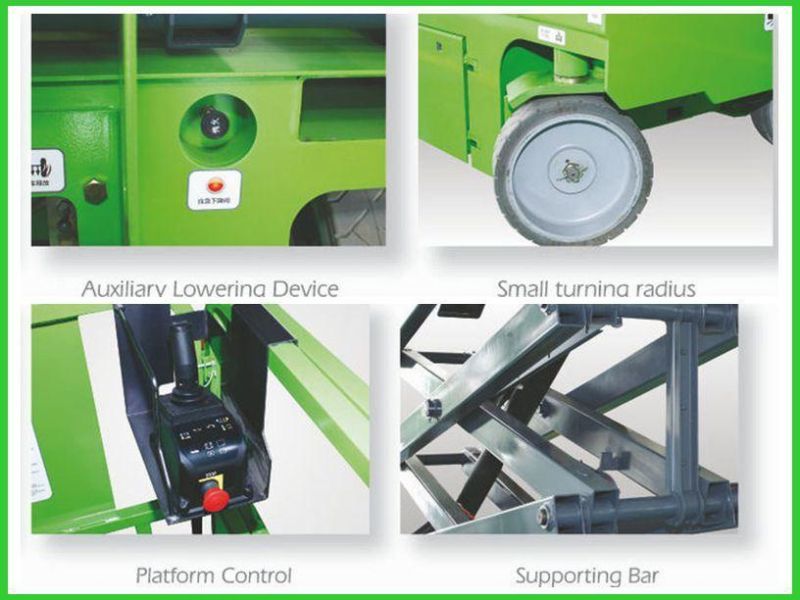

Safety Precaution

Auxiliary Lowering Devices
Anti-burst System
Emergency Stop Button
Tilting Protection System
Charging Protection System
Automatic Pothole Protection
Automatic Braking System
Buzzer and Horn

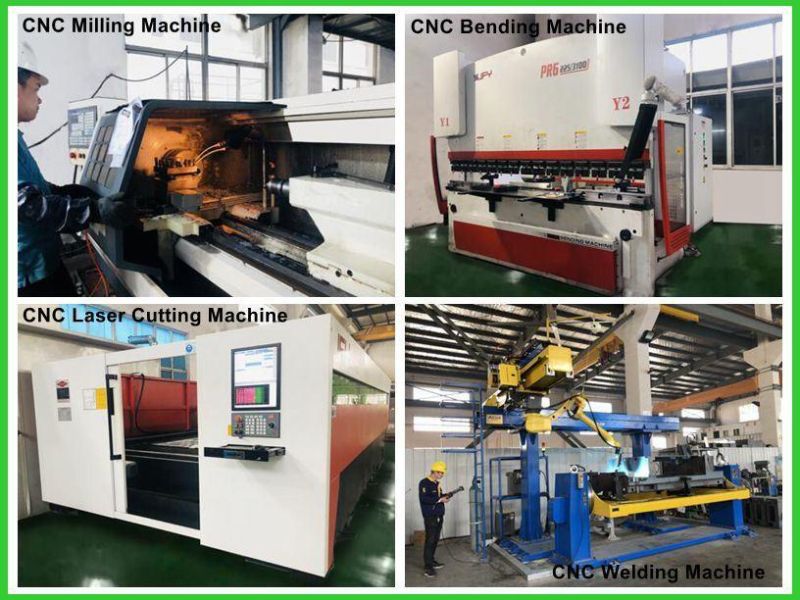

Factory Equipment

Client &Exhibition

Other Related Products

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
