• Model NO.：MX390R
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：3.9 M
• Max Working Height：5.9 M
• Load Capacity：240 Kg
• Platform Size：1.15* 0.6 M
• Platform Extension Length：Optional Configuration
• Lift/Drive Motor：24V 0.8 Kw,24V 0.3 Kw
• Ground Clearance( Stowed/Raised)：0.05 M
• Gradeability：25%
• Turning Radius：0
• Wheelbase：1.03 M
• Transport Package：Wrapped with Film
• Specification：1.3* 0.76*1.59 m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Model MX300R/MX300S MX390R/MX390SLoad240 kg240 kgPlatform Height3 m3.9 mWorking Height5 m5.9 mPlatform Size1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)1.15* 0.6 m (No Extension)
1.15* 0.7 m (With Extension)Optional Configuration:
Extension PlatformExtension Length: 0.55 m
Extension Load: 100 kgExtension Length: 0.55 m
Extension Load: 100 kgLift/Drive Motor24v 0.8kw/ 24v 0.3 kw24v 0.8kw/ 24v 0.3 kw2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)

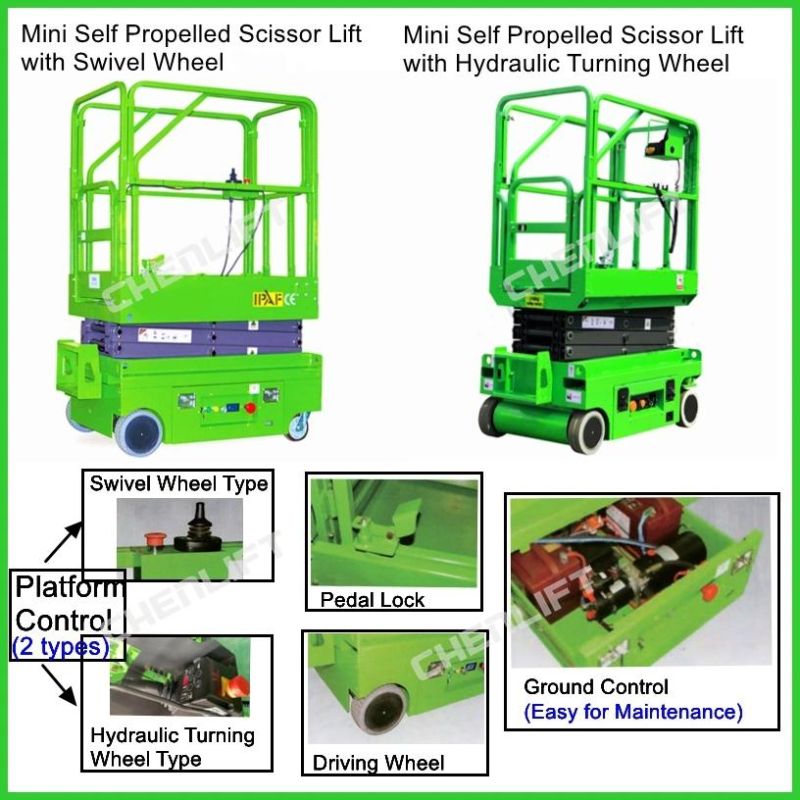

Details

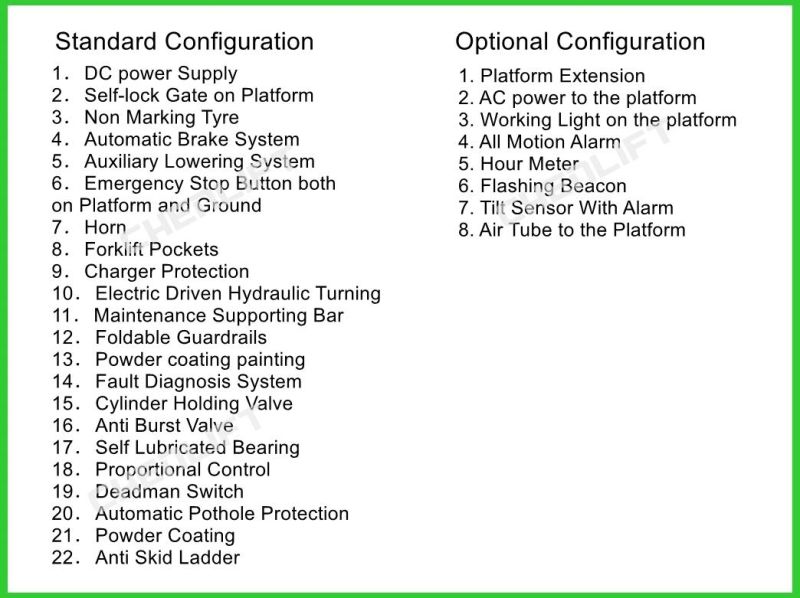

Configuration

 Safety Precaution

• Auxiliary Lowering Devices
• Anti-burst System
• Emergency Stop Button
• Tilting Protection System
• Charging Protection System
• Automatic Braking System
• Buzzer and Horn

Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.


Certificates


Factory Equipment


Client &Exhibition


Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
