Gcl Electric Hoist Beam Trolley
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Gantry Crane, Bridge Crane, Lifting Platform
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：HG-GCL
- Certification：ISO9001:2000
- Condition：New
- Color：Yellow
- Usage：Lifting
- Warranty：1 Year
- Loading Port：Shanghai
- Max Lifting Weight：10 Ton
- Transport Package：Wooden Boxes, Plywood
- Specification：ISO,CE
- Trademark：hugong, yiying
- Origin：Shanghai, China
- HS Code：3926909090
- Production Capacity：400000PCS,Year
Description
Model
Rated load (Ton)
Test (KG)
The Min curvature radius (M)
Main Size(MM)
I-Beam recommended(MM)
A
B
C
H
F
GCL-JA0.5
0.5
0.64
1
208
172
190
108
3
75-100
GCL-JA1
1
14.71
1
220
206
222
122
3
75-100
GCL-JA2
2
29.42
1.1
260
240
267
132
3
90-140
GCL-JA3
3
44.13
1.3
285
279
319
181
3
100-150
GCL-JA5
5
61.29
1.4
338
318
384
219
3
125-175
GCL-JA10
10
122.58
1.7
362
380
490
275
3
125-180

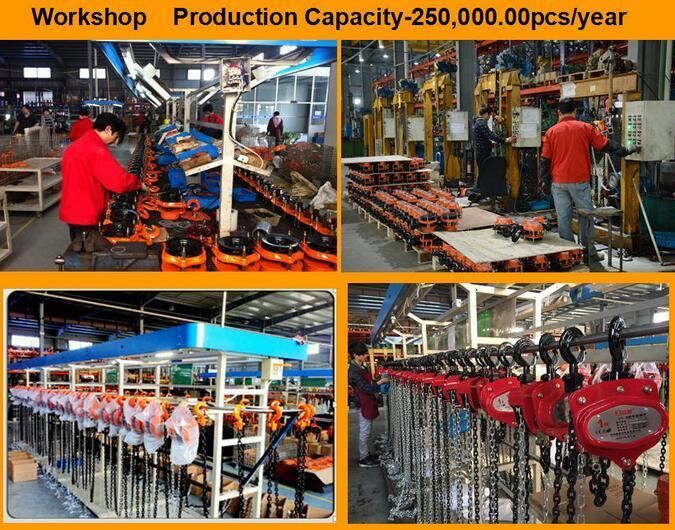

Factory View
Our Certificate & Service
