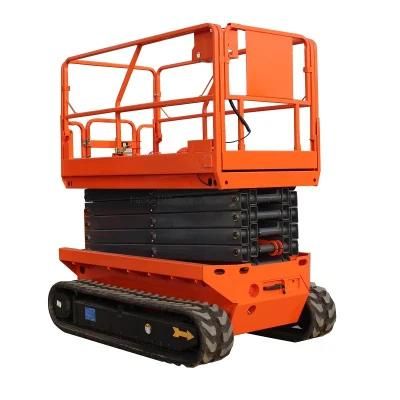

Rough Terrain Track Scissor Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Free Parts Replacement; Life Technical Support
- Warranty：1 Years
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：420kg
- Moves：Self-propelled
Base Info
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Platform Height：6m 8m 10m 12m
- Lift Method：Hydraulic
- Frequency：50Hz,60Hz
- Guardrail Height：1.1m
- Surface Treatment：Plastic Spray
- Safety Precaution 1：Anti Explosion Valve
- Certifications：CE
- Color：Red Yellow Blue Customized
- Lifting Speed：4-6m,Min
- Transport Package：Standard
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Sets,Year
Description
ModelGTJZ-C6 GTJZ-C8 GTJZ-C10 GTJZ-C12 Max. Platform Height m 6 8 10 12 Max. Work Height m 8 10 12 14 Load Capacity kg 450 450 320 320 Load Capacity of Extendable Platform kg 113kg 113kg 113kg 113kg Platform Size-B*D mm 2270*1120 2270*1120 2270*1120 2270*1120 Extendable Platform Length-S mm 900 900 900 900 Minimum turning radius ° 0 0 0 0 Lifting Motor v/kw 48/2.2 48/2.2 48/2.2 48/2.2 Driving Motor v/kw 2*48/4 2*48/4 2*48/4 2*48/4 Driving Speed km/h 2 2 0.5 0.5 Up/Down Time sec 24/34 28/38 38/46 38/46 Battery V/Ah 8*6/225 8*6/225 8*6/225 8*6/225 Battery Charger V/A 48/25 48/25 48/25 48/25 Max Climbing Ability 30% 30% 30% 30% Max Working Angle 1.5°/3° 1.5°/3° 2°/3° 2°/3° Speed Ratio 1:40 1:40 1:40 1:40 Overall Length-L mm 2440 2440 2440 2440 Overall Width-W mm 1390 1390 1390 1390 Overall Height (Guard rail fold)-H1 mm 1765 1890 2015 2130 Overall Height (Guard rail unfold)-H2 mm 2275 2400 2525 2545 Overall Net Weight kg 2420 2610 2890 3080
Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning all on the platform through the control system.
Factory Show Jinan PLK Machinery Co., Ltd is located in Jinan City, Shandong Province, and was established in 2003. In the past years, Jinan PLK has developed into a professional manufacturer of aerial working platforms, lifting machines and material lifts. PLK Machinery is committed to providing customers with best quality products and professional services. Every year, we invest a lot of money in product renewals. High quality products and professional services make us a leader in the industry.
------------------------------------------------------------------
