• Model NO.：BC30
• Color：Orange
• Beam Flanget Widh：80-322mm
• Load Capacity：3000kg

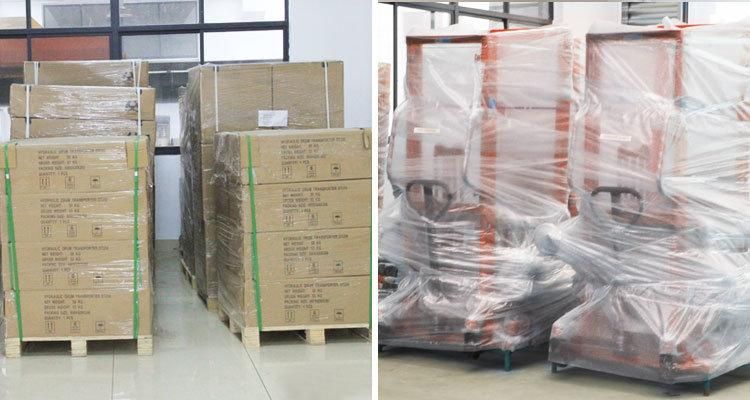

• Transport Package：Pallet Packing
• Trademark：Yinglift
• Origin：China
• HS Code：8425110000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. BC30 Color Orange Beam Flanget Widh 80-322mm Load Capacity 3000kg Transport Package Pallet Packing Trademark Yinglift Origin China HS Code 8425110000 Production Capacity 50000 Pieces/Year

Product Description

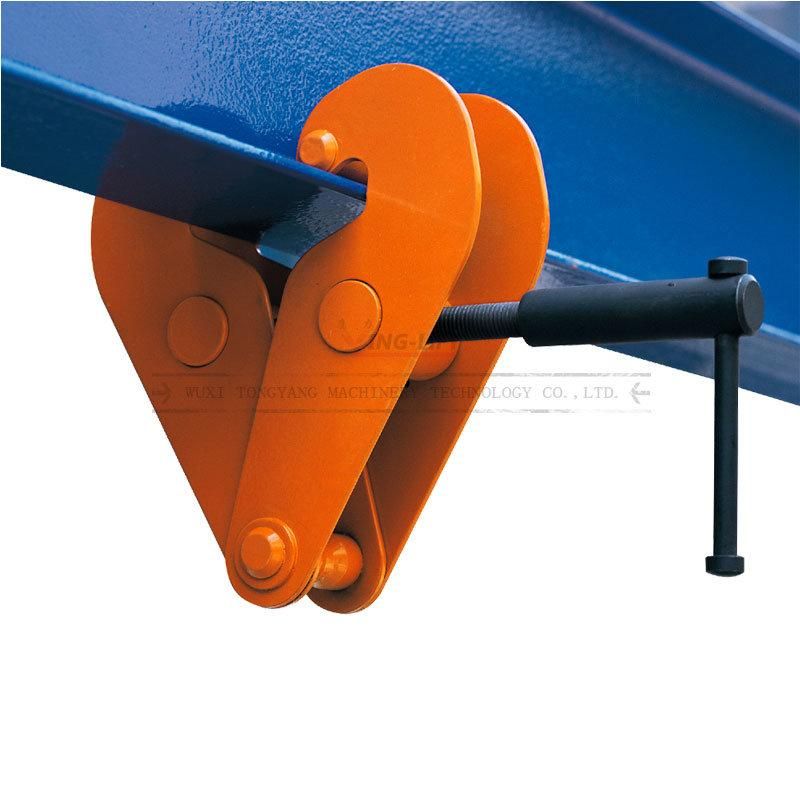

Beam Clamp

1. Capacity 1ton to 10 ton.

2. Clamp jaw is designed to reduce flange stress by distributing load away from I-beam flange edge.

3. Can be mounted easily with threaded handle.

4. Fits a wide range of flange widths and beams.

5. Suspension bar provides lower headroom.

6. Conforms to CE safety standard.

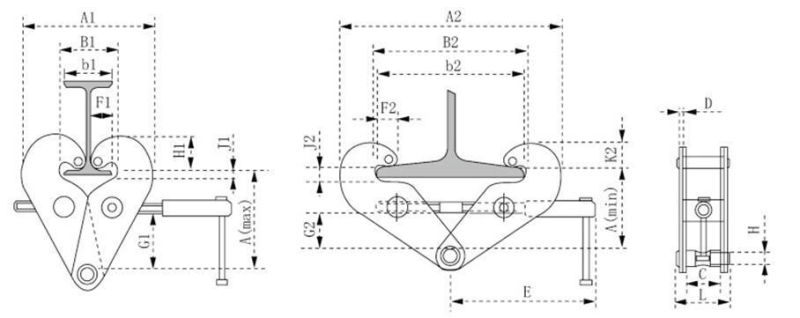

Model	BC10	BC20	BC30	BC50	BC100
Capacity                                 kg	1000	2000	3000	5000	10000
Beam Flange Width               mm	75-230	75-230	80-322	90-322	90-322
Amin                                       mm	116	116	180	180	176
Amax                                      mm	151	151	225	225	221
B1                                           mm	78	78	80	90	90
B2                                           mm	247	247	322	322	322
A1                                           mm	186	186	232	242	268
A2                                           mm	350	350	455	445	480
b1                                           mm	75	75	80	90	90
b2                                           mm	230	230	322	312	322
C                                            mm	50	50	70	70	70
D                                            mm	4	6	8	10	12
E                                            mm	215	215	255	255	275
F1                                          mm	34	35	35	35	35
F2                                          mm	17	18	21	21	20
G1                                          mm	83	83	121	117	111
G2                                          mm	45	45	76	76	67
H                                            mm	20	20	22	28	38
J1                                           mm	14	14	30	30	34
J2                                           mm	21	21	34	34	35
K1                                           mm	48	50	60	60	60
K2                                           mm	31	32	40	42	40
L                                             mm	84	94	122	129	146
Net Weight                              kg	3.9	4.7	9.2	11	17.5

FAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?

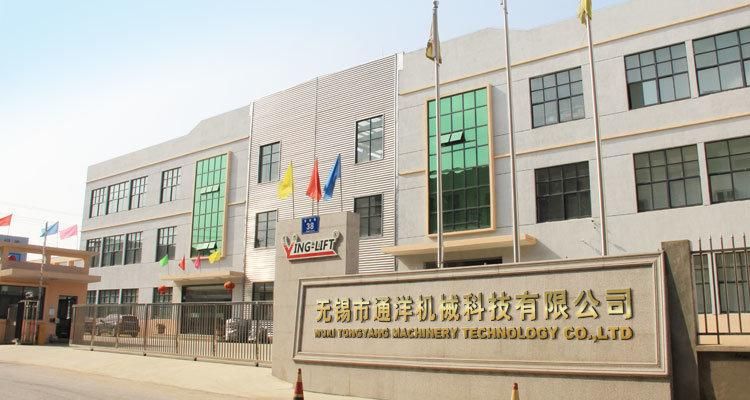

   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

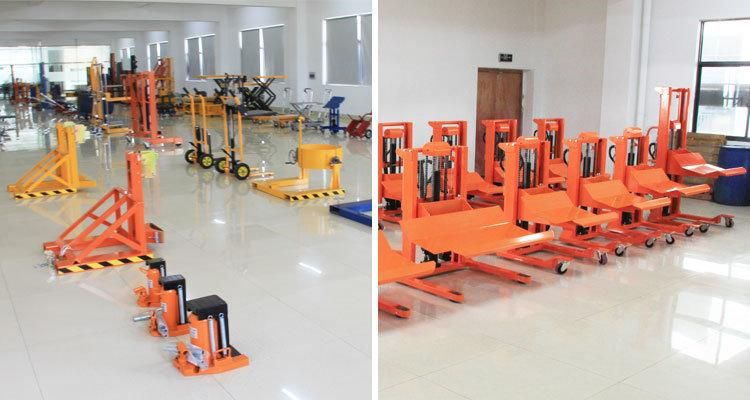

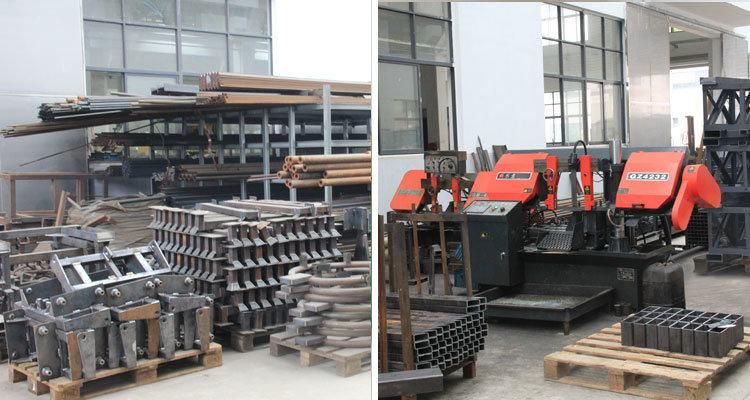

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
