Disable Vertical Lift Mechanism with 250kg Load Capacity

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Online Service, Free Express Accessories.
  • Warranty：12 Months
  • Application：Wheelchair Elevator
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Stationary

Base Info

  • Model NO.：WL
  • Driven Type：Hydraulic
  • Running Mode：Stationary
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Power：2.2kw
  • Rated Loading Capacity：250kg
  • Min. Lifting Height：100mm
  • Max. Lifting Height：1m-10m
  • Weight：450~1300kg
  • Guiderail Material：Aluminum Alloy
  • Surface Treatment：Plastic Spraying
  • Transport Package：Wooden Box
  • Specification：2000*1430*1300mm
  • Trademark：PLK-LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：1000

Description

  1. One control panel on the platform
  2. Install two column switches on ground, which can be fixed at any floor needed.
  3. Remote control, user can operate lift within 20m.

 2. Photos Review:
Disable Vertical Lift Mechanism with 250kg Load Capacity

Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

3. Details Display:
Disable Vertical Lift Mechanism with 250kg Load Capacity

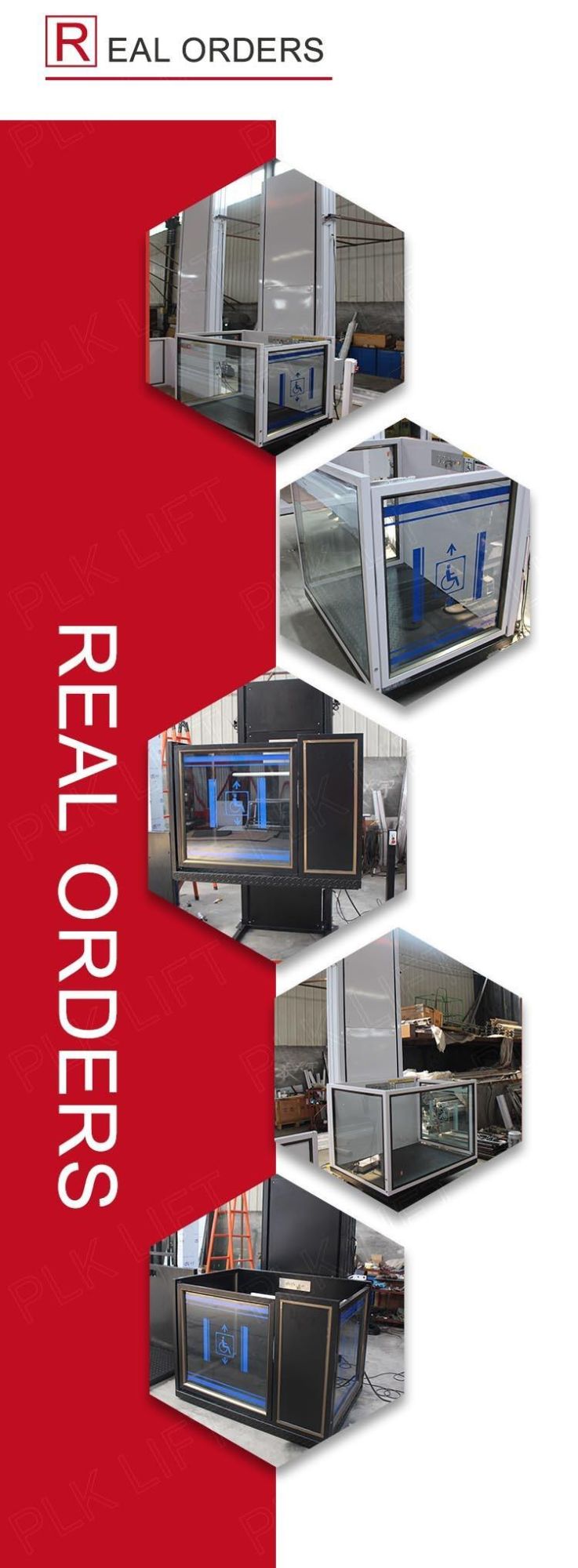

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)

Disable Vertical Lift Mechanism with 250kg Load Capacity

5. Welcome to visit our factory and place the order with us.
Disable Vertical Lift Mechanism with 250kg Load Capacity
