CE Certified Mobile Lift Aerial Basket Man Cradle Air Worker Lift Airborne Scaffolding
Jinan PLK Machinery Co., Ltd.- After-sales Service：Free Spare Parts, Life Support Service, Video Link
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：500kg-2000kg
- Moves：Moving
Base Info
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Height：Customized
- Voltage：Local Standard
- Transport Package：Standard
- Specification：500-2000
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets
Description
Basic Info.
Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Height Customized Voltage Local Standard Transport Package Standard Specification 500-2000 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500setsProduct Description

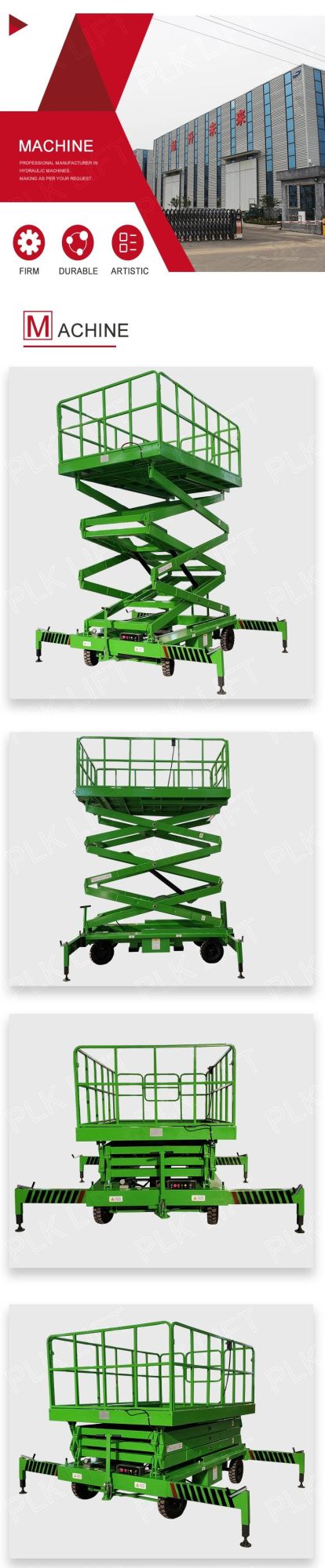

Scissor Lift China Scissor Lift Equipment Push Mobile Scissor Lift
Electric scissor lift comes with CE certificate, which is a must in aerial working industry. Equipped with two fixed wheels and two universal ones, the moving and turning job is easily done.
It has power failure self locking function and emergency descent system guaranteeing the worker safety.
There're multipe power sources for you to choose from, AD, DC Or the two combined, all tailored to your needs and all you need to do is ask.
| Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size (m) | Motor (kw) | Wheels(φ) | Net Weight (kg) |
| SJY4506-H | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 1.5 | 200 PU | 800 |
| SJY4507-H | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 1.5 | 400-8 Rubber | 1000 |
| SJY4509-H | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 1.5 | 400-8 Rubber | 1200 |
| SJY4511-H | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 2.2 | 500-8 Rubber | 1580 |
| SJY4512-H | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 3 | 500-8 Rubber | 2450 |
| SJY4514-H | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 3 | 500-8 Rubber | 2650 |
| SJY1006-H | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 2.2 | 500-8 Rubber | 1100 |
| SJY1009-H | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 3 | 500-8 Rubber | 1510 |
| SJY1012-H | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 4 | 500-8 Rubber | 2700 |
| SJY0316-H | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 3 | 500-8 Rubber | 3200 |

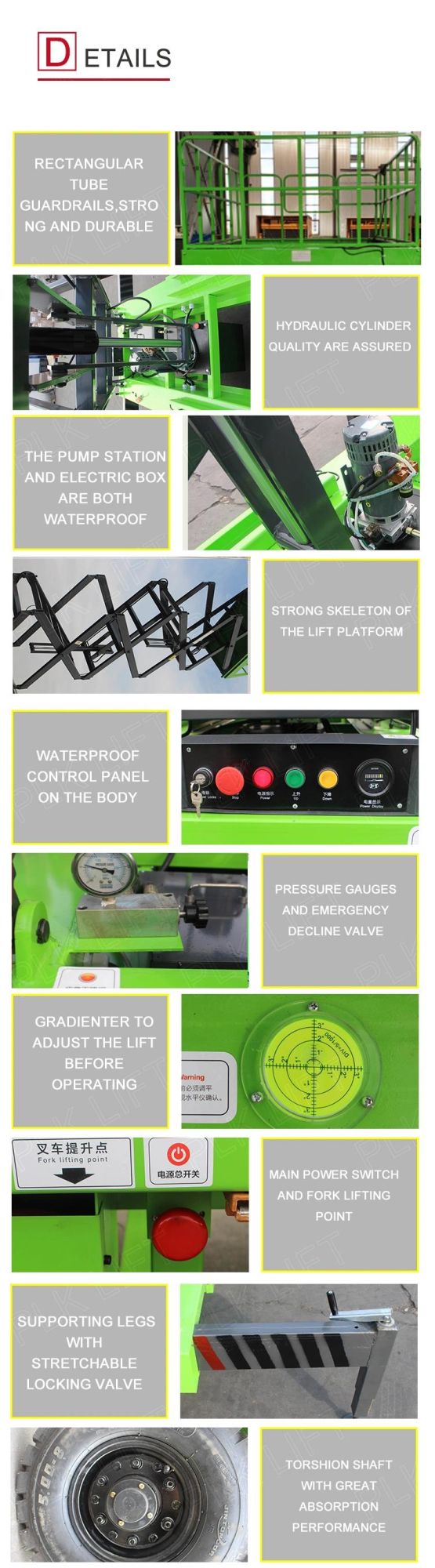

CE certificationSimple structure, easy to maintain.
Manual pulling, two universal wheels, two fixed wheels, convenient for moving and turning
Moved by man or towed by tractor. Lifting by AC(without battery) or DC (with battery).
Electrical protection system:
a. The main circuit is equipped with main and auxiliary double contactors, and the contactor is faultless.
b. With limit switch.
c. Equipped with emergency stop button on the platform
d.Power failure self-locking function and Emergency descent system
