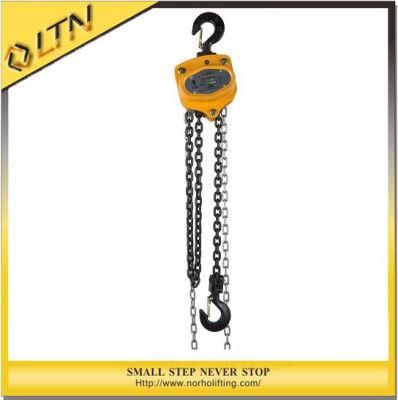

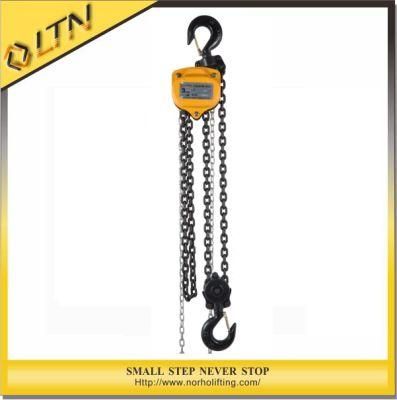

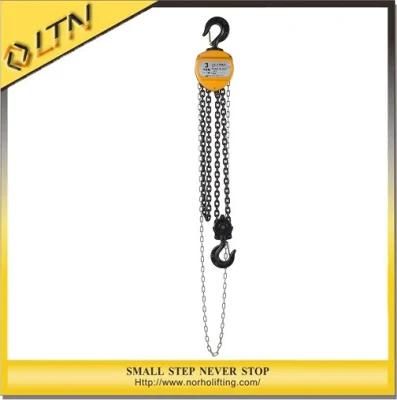

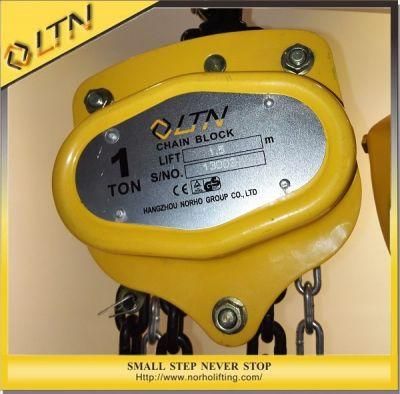

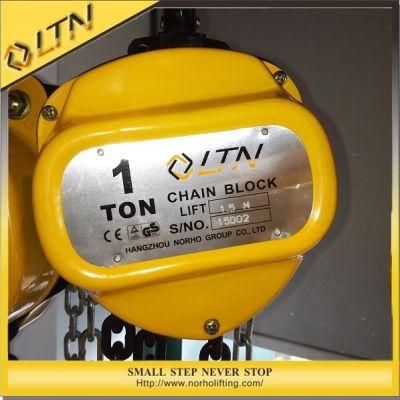

Low Price Professional Manual Chain Pulley Hoist (CH-WD)
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：<2m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：CH-WD
- Certification：CE, ISO9001:2000, GS, TUV
- Condition：New
- Color：Orange
- Rate Load：0.5-10t
- Lifting Height：3m as Standard, Others Also Available
- Net Weight：11-78.8kg
- Overload Protection：Available
- Shell：Alloy Steel
- Hook：High- Class Alloy Steel
- Chain：G80 Load Chain
- Warranty：One Year
- Transport Package：Carton Packing or Wooden Pallet Packing
- Specification：CE GS and TUV
- Trademark：LTN or OEM
- Origin：Hangzhou China
- HS Code：84251900
- Production Capacity：10000 Sets, Month
Description
ModelCH-WD0.5 CH-WD1 CH-WD1.5 CH-WD2 CH-WD3 CH-WD5 CH-WD10 Capacity (Ton) 0.5 1 1.5 2 3 5 10 Standard lift (M) 2.5 2.5 2.5 2.5 3 3 3 Running Test Load (T) 0.75 1.5 2.25 3 4.5 7.5 15 No.of falls of Load Chain 1 1 1 1 1 2 4 Load Chain Diamter (MM) 5 6 7.1 8 10 9 9 Diamensions(MM) a 132 151 173 175 176 189 189 b 148 172 196 210 230 280 463 c 23 27 33 35 39 45 54 d 35 40 45 50 55 65 75 Hmin 345 376 442 470 565 688 765 Net Weight (Kg) 11 12.5 17.8 19.5 32 41.3 78.8
==========Packaging & Delivery==========
Packaging Details: Standard Wooden Case or at Your Requirements
Delivery Detail: 25-30 Days after Received Deposit for Container Order
=============Our Services================
1- We can make special sample according to the customer's requirement.
2- We have more than 50 professional technical team, provide best after-sales service
3- Fast delivery time
4- We have CE, TUV and GS certification.
5- Test one by one.
