• Model NO.：50ton
• Tonnage：50ton
• Reel Number：2
• Running Mode：Moving
• Feature：Antiseptic, Insulating, Explosion-Proof
• Certification：CE, ISO 9001, CCS
• Standard：Nonstandard
• Rated Pull：500 Kn
• Holding Load：1500 Kn
• Nomial Speed：≥7 M,Min
• Rope Dia：52mm
• Drum Capacity：600 M
• Motor Power：200 Kw

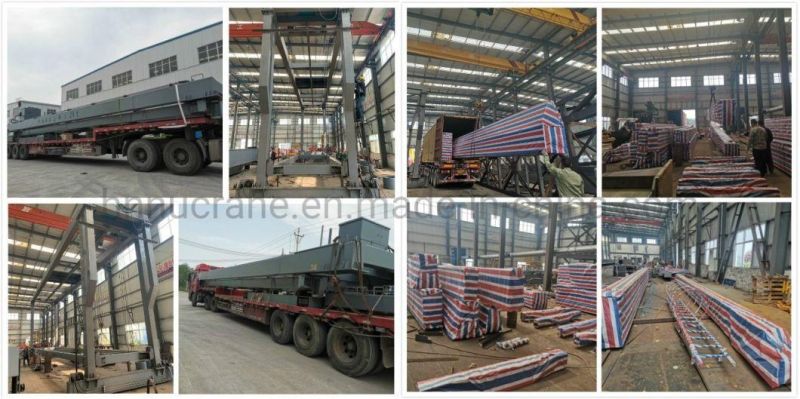

• Transport Package：Container Transportation
• Specification：20 or 40 feet container
• Trademark：Nucrane
• Origin：China, Henan
• Production Capacity：1000sets,Years

Basic Info.

Model NO. 50ton Tonnage 50ton Reel Number 2 Running Mode Moving Feature Antiseptic, Insulating, Explosion-Proof Certification CE, ISO 9001, CCS Standard Nonstandard Rated Pull 500 Kn Holding Load 1500 Kn Nomial Speed ≥7 M/Min Rope Dia 52mm Drum Capacity 600 M Motor Power 200 Kw Transport Package Container Transportation Specification 20 or 40 feet container Trademark Nucrane Origin China, Henan Production Capacity 1000sets/Years

Product Description

Electric Vertical Windlass Capstan Winches Eanchor Capstan Winch WindlassElectric mooring winch is electrically driven by the motor, vessels use it for drawing out and pulling in the lines of cable, rope or chain to attach to docks and stop there safely without drifting and moving; except that, the winch also has other functions, for example, loading and unloading weights. The winches can also be powered by hydraulic pump or diesel engine, that is to say, there are also hydraulic mooring winch and diesel mooring winch optional to meet different mooring needs.

Model	Rated pull(KN)	Rated speed(m/min)	Drum capacity(mmxm)	Braking force(KN)	Motor power(KW)	Dimensions(mm)	Weight(Ton)
NE-20	20	12	15×200	60	11	1800x1150x1825	2.5
NE-30	30	12	16×200	90	15	1950x1200x1900	3
NE-50	50	12	22×220	150	22	2050x1200x2000	3.5
NE-80	80	12	28×220	240	37	2175x1250x2100	4
NE-100	100	12	30×220	300	45	2320x1285x2175	5
NE-125	125	12	32×220	375	55	2385x1325x2250	5.5
NE-150	150	12	36×220	450	75	2500x1465x2400	6
NE-200	200	10	39.5×350	600	75	2600x1670x2625	9
NE-250	250	10	43×450	750	90	2850x1800x2900	12.5
NE-320	320	8	47×550	960	90	3050x1975x3100	18
NE-400	400	8	52×600	1000	110	3375x2050x3400	22
NE-500	500	9	56×600	750	180	4750x2800x3850	25

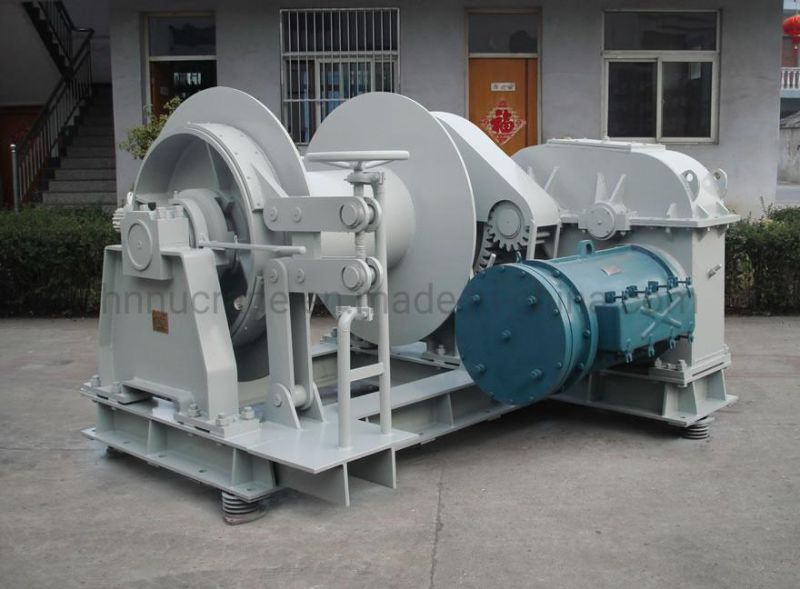

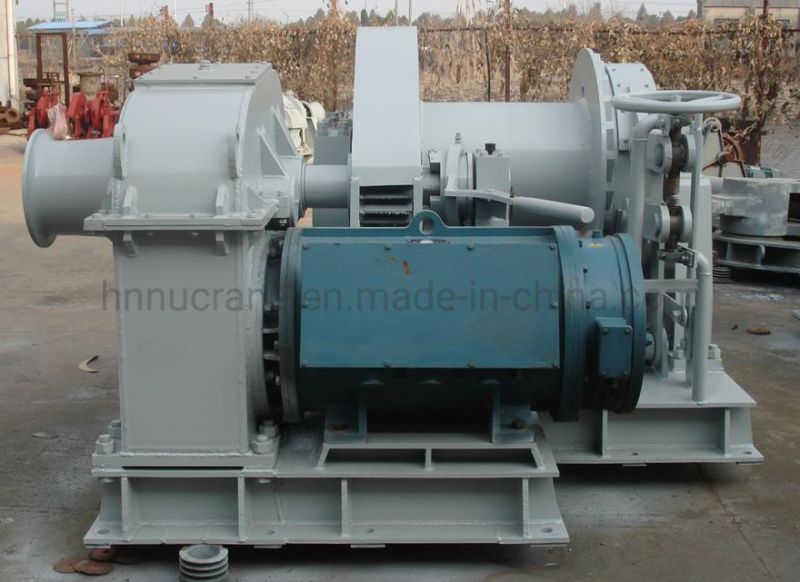

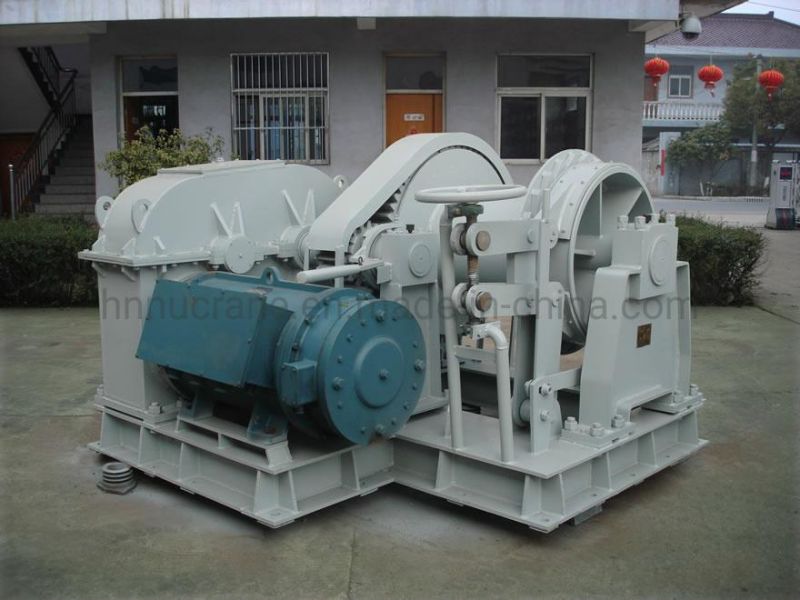

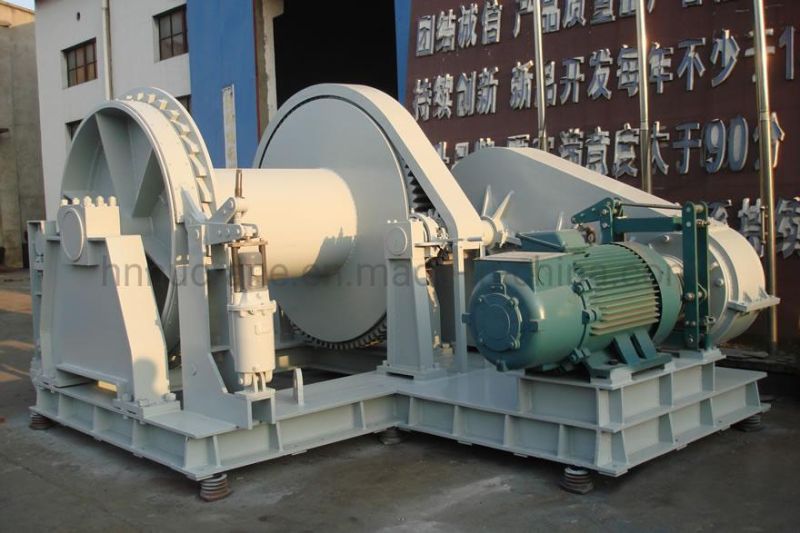

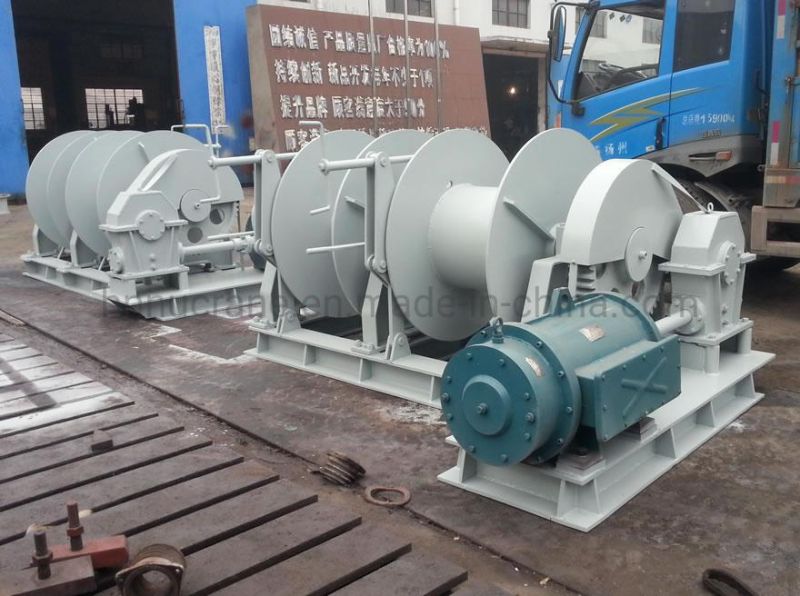

The main parts of mooring winch comprise electric motor, mooring drum, warping head (optional), gypsy wheel (for combined winch), gearbox, clutch unit, brake system, and so on. The electric motor drives the winch drum by gearbox to wind rope or cable during mooring work, the brake is fixed between the motor and input shaft. The winch operators can wrap the rope, cable or chain around the winch drum in mooring operations.

As an important marine device, mooring winch is used to hold a boat or ship in place at a pier or similar fixture to secure the boat or ship. The winch can be installed on the deck of the ship, which allows the operators to position and secure the ship carefully when it comes to the port.

On the ship deck, the operators can control the winch directly, and some mooring winches are also equipped with remote control, which allows the operators to control the winch device at a certain distance. When the winch is not in use, it can be covered to reduce and limit the exposure to the elements and to reduce the risks of injuries. It is worth mentioning that before the mooring work, unnecessary personnel should keep away from the winch for safety reasons.

The main components of the winch include: hydraulic motor (low speed or high speed motor), hydraulic NC multi-plate brake, gearbox, clutch (optional), drum ( single drum or double drum), support shaft, frame spooling device (optional) etc. The winch motor has high mechanical efficiency. The brakes and gearbox are installed in the winch drum, and the drum, support shaft and frame are designed in accordance with mechanical requirements, which makes the overall structure simple and reasonable with sufficient strength and rigidity.

Features Of Marine Hydraulic Winch
In structure: the winch structure is compact, and it has nice appearance with small volume and light weight, etc.;
In function: the hydraulic winches have high safety and efficiency, large starting torque, good stability with low speed, low noise, reliable operation etc;
In application: the marine hydraulic winches can be used on ship deck, in port, on offshore platforms and so on. They can be used for anchoring, mooring, towing and other marine operations, to meet different work requirements, there are marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch supplied by us.
