• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Green, Red, Blue, Yellow, Customized
• Transport Package：Timer Box
• Specification：10 CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set,Year

Basic Info.

Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Green, Red, Blue, Yellow, Customized Transport Package Timer Box Specification 10 CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set/Year

Product Description

600kg Glass Vacuum Lifter Factory Price Sale
PLK LIFT - GL-HD series vacuum lifter robots are specially designed for handling different kinds of plates, glass sheets or other plane articles. Vacuum lifter is very usefull in the mounting or transporting of steel board, glass sheets, marble or granite blocks.

It's usually used by putting a crane belt or rope through the eyelet of the vacuum lift. After the objects are firmly secured on the suction caps, the crane lifts the machine.

See below for models and specs.

Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015(4x30)	GL-HD-4015(4x30)
Max. Load Capacity	800kgs	800kgs	600kgs	400kgs
Safe Load Capacity	400kgs	400kgs	300kgs	200kgs
Lifting Height	1500mm	2500mm	1500mm	1500mm
QTY of Caps (customized)	6pcs	8pcs	4pcs	4pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (or customized)	3660x2440mm	3660x2440mm	2440x1830mm	1220x1830mm
Drive Motor	24V/900W	24V/900W	24V/700W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah	2x12V/70Ah
Charger	24V/20A	24V/20A	24V/15A	24V/10A

Advantages
1. Integrated control system guarantees vertical and horizontal positioning quickly and automatically.
2. DC24V reliable actuators for the lifting, extending and tipping action, efficient and accurate. Self propelled and with multiple-channel vacuum suction.
3. Competitive pricewise, labor cost reducing and environmentally friendly.
4. Vacuum lifters are treated with shot blasting and stoving varnish, endowed with anti-corrosion function.
5. High quality pump station makes stable lift and fall.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift in case of hose burst.
7. Pressure relief valve prevents overload; Flow control valve makes descending speed adjustable.
8. Simple structure makes it much easier to operate and maintain.

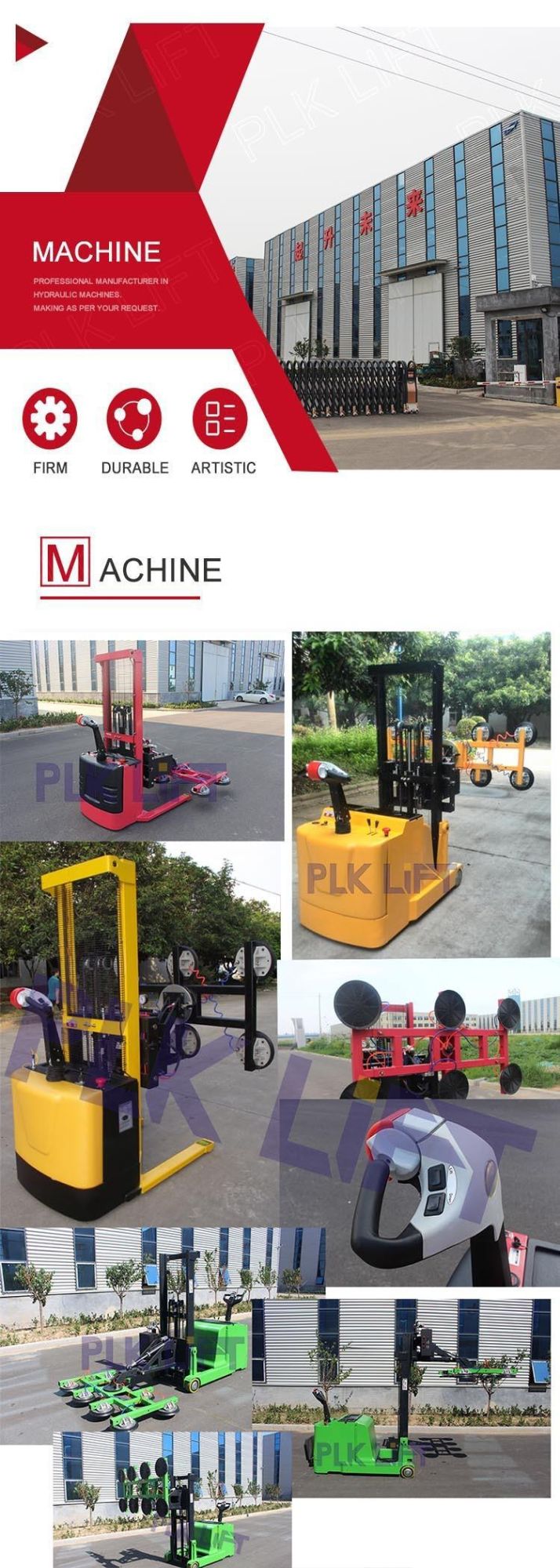

Machines Display:
