6-12m 320kg Load AC/DC Power Electric Driven Self-Propelled Hydraulic Scissor Lift
SHANDONG BELIFT MACHINERY CO., LTD.- After-sales Service：Spare Parts Provided
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
Base Info
- Model NO.：JCPT
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Max.Platform Height：6m-12m
- Max.Working Height：8m-14m
- Lifting Capacity：320kg
- Extended Platform Capacity：113kg
- Platform Size：2.26*1.13*1.1
- Overall Size-Guardrail Unfolding：2.48*1.17*2.21
- Overall Size-Guardrail Removed(M)：2.48*1.17*1.76
- Extended Platform Size(M)：0.9
- Ground Clearance(M)：0.1,0.02
- Wheel Base(M)：1.92
- Minimum Turn Radius-Inner Wheel：0
- Minimum Turn Radius-Outer Wheel(M)：2.2
- Driving Motor(V/Kw)：2*24,0.75
- Lifting Motor(V/Kw)：24,1.5
- Lifting Speed(M/Min)：4
- Transport Package：Wrapped by Paper Bag and Film
- Specification：6m to 12m
- Trademark：Blift
- Origin：China
- HS Code：8428909090
- Production Capacity：99999PCS,Year
Description

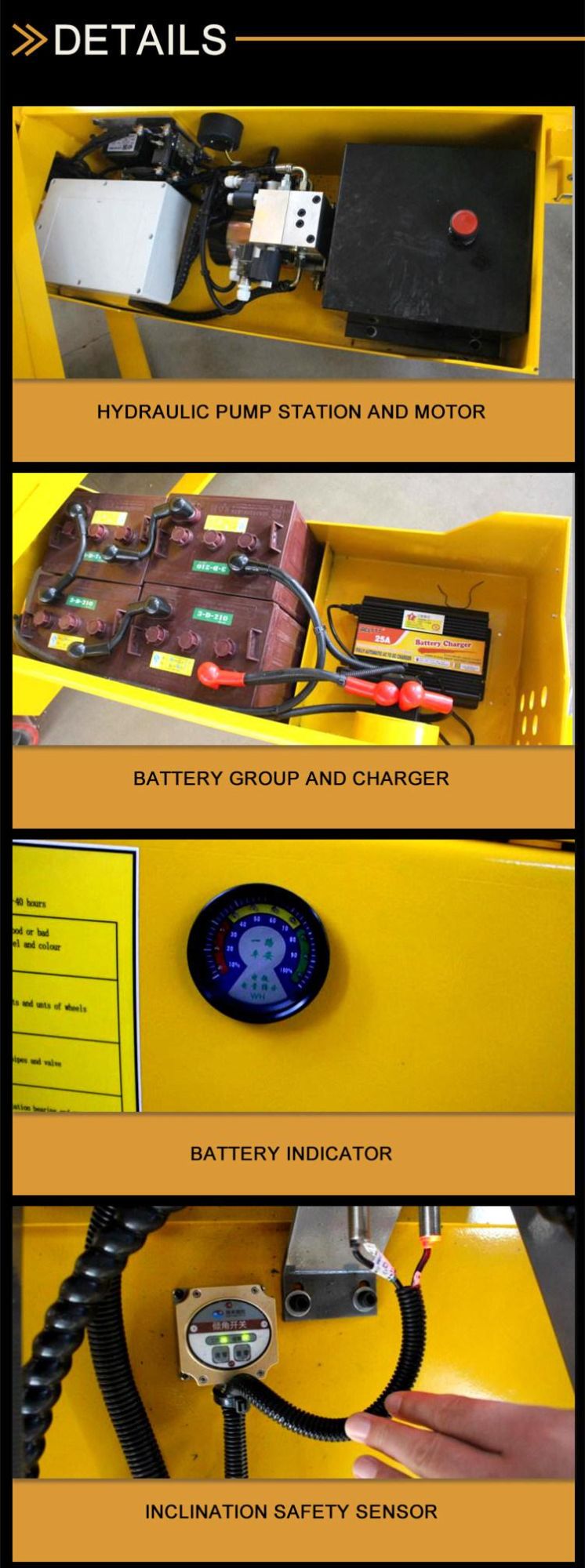

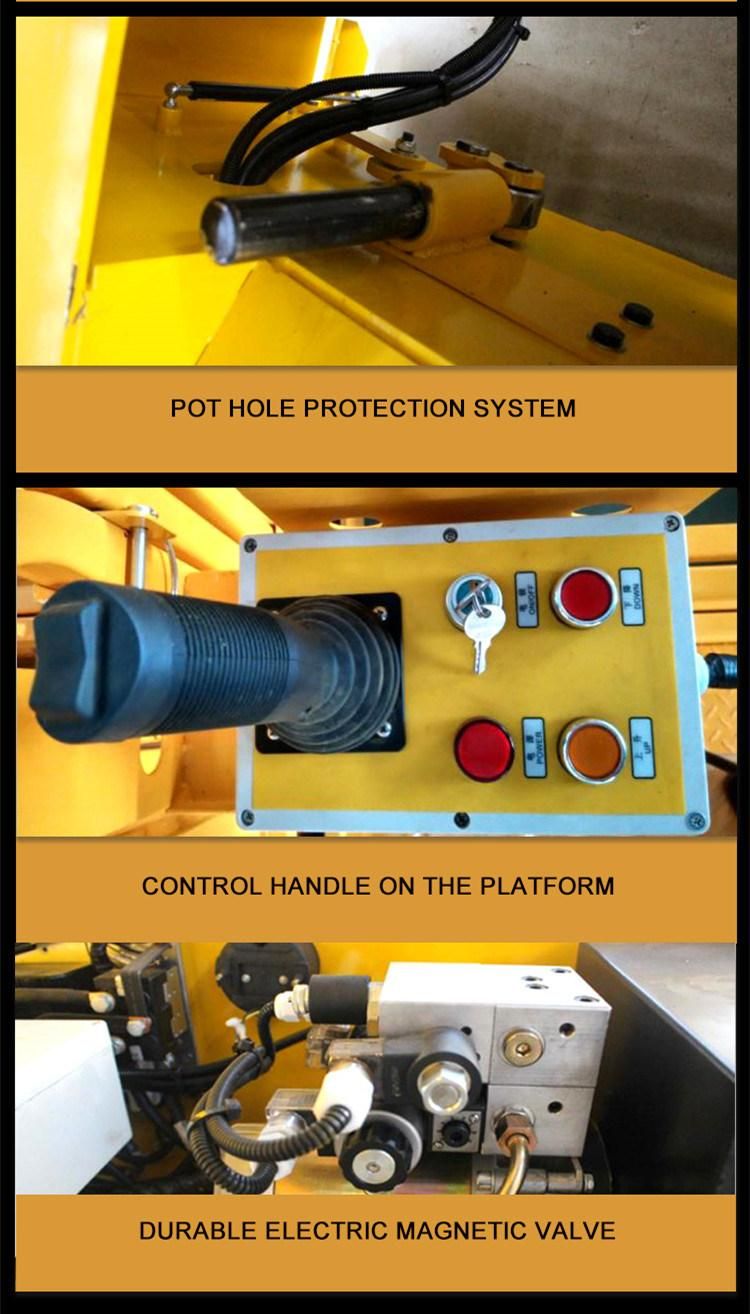

Product ParametersDetailed Photos
Company Profile
After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.
