• Model NO.：SEP2-4.5
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Max. Platform Height：4.5m
• Max. Machine Height：6.1m
• Loading Capacity：200kg
• Platform Size：600*640 mm
• Lifting Motor：12V,1.6kw
• Overall Weight：420kg
• Transport Package：PVC Film Wrapped in Pallet
• Specification：1.32*0.85*2m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. SEP2-4.5 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Max. Platform Height 4.5m Max. Machine Height 6.1m Loading Capacity 200kg Platform Size 600*640 mm Lifting Motor 12V/1.6kw Overall Weight 420kg Transport Package PVC Film Wrapped in Pallet Specification 1.32*0.85*2m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

0.2t Load Semi Electric Aerial Order Picker with Lifting Height 4500mm
Product Description
Semi-electric aerial order picker is with high safety, moving easily and convenient working. This product is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles. Offered in various technical specifications, this range of order picker is available at the most reasonable prices.

Features
Environment-Friendly:
Low noise and non-pollution electricity energy adopted ensure the semi electric order picker Environment-Friendly.

Reliability:
Adequate protection of brake and bolts, to ensure safe use.
Rigid steel body design to ensure steady operation.

Strict Quality Inspection System:
ISO9001-2008, CE approved.

Application
Semi-electric Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.

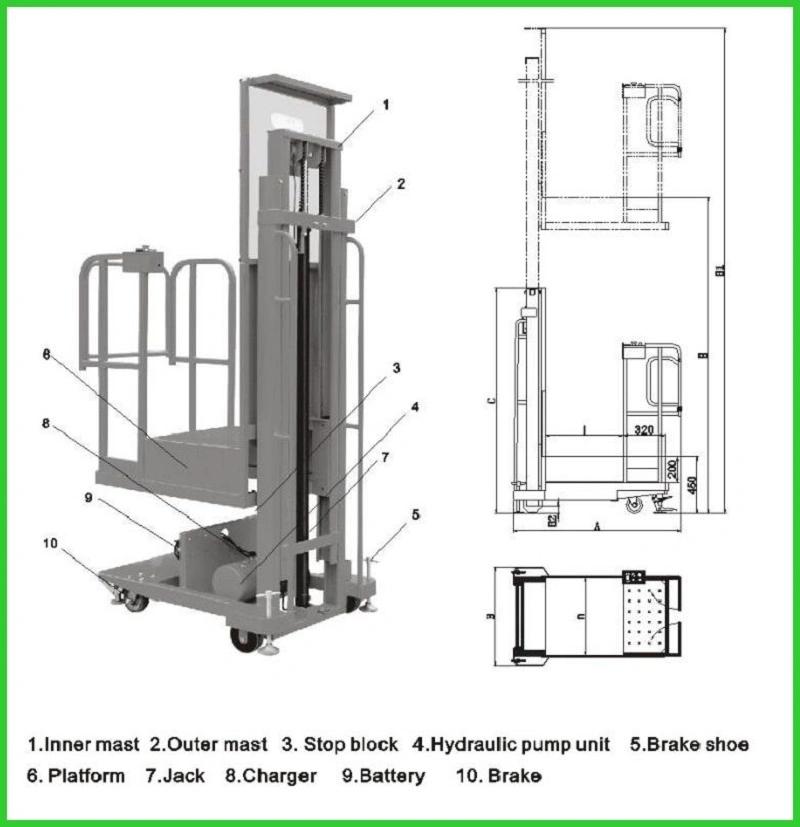

Major Parameter of Semi-Electric Aerial Order Picker

Model	SEP2-2.7	SEP2-3.3	SEP2-4.0	SEP2-4.5
Loading Capacity	200Kg	200Kg	200Kg	200Kg
Max. Platform Height	2.72m	3.30m	4.00m	4.50m
Max. Machine Height	4.02m	4.90m	5.40m	6.10m
Platform Size	600*640mm	600*640mm	600*640mm	600*640mm
Stowed Length	1.30m	1.30m	1.32m	1.32m
Stowed Width	0.85m	0.85m	0.85m	0.85m
Stowed Height	1.76m	2.04m	1.83m	2.00m
Ground Clearance	30mm	30mm	30mm	30mm
Lift Motor	12V/1.6Kw	12V/1.6Kw	12V/1.6Kw	12V/1.6Kw
Battery	12V/120Ah	12V/120Ah	12V/120Ah	12V/120Ah
Charger	12V/15A	12V/15A	12V/15A	12V/15A
Overall Weight	270Kg	320Kg	380Kg	420Kg

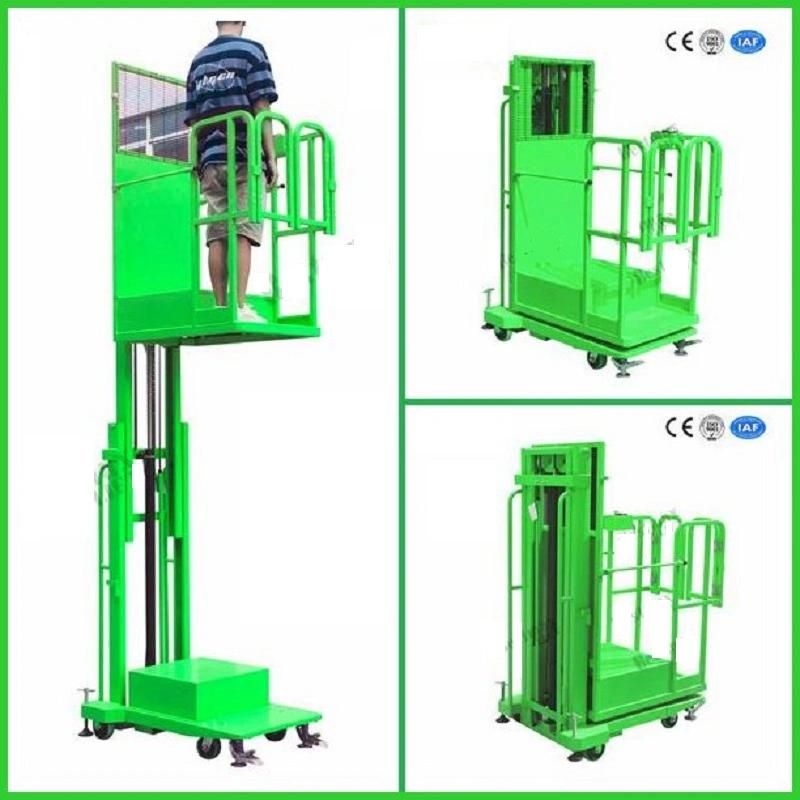

Product Details

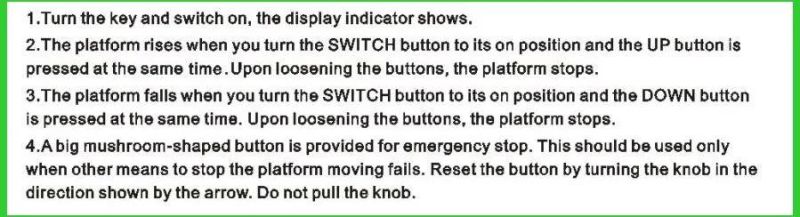

Operation of Picker


Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.


Certificates


Factory Equipment


Customer Visiting


Other Related Products


Why choose Our Order Picker?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience

Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
