XCMG 30m Mobile Elevated Aerial Work Platform Xgs34 Self-Propelled Telescopic Boom Lift for Sale
Xuzhou Construction Machinery Group Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Weight Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：XGS34
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Engine：Perkins
- Max. Load Capacity：230 (Unrestricted),340 (Restricted)Kg
- Dimension of Platform：2400*900mm
- Engine Rated Power：55.5,(2400)Kw,(R,Min)
- Transport Package：Comply with Export Packaging Requirements
- Specification：14300*2490,3800*3070mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：8428909090
- Production Capacity：10000,Year
Description
Basic Info.
Model NO. XGS34 Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Engine Perkins Max. Load Capacity 230 (Unrestricted)/340 (Restricted)Kg Dimension of Platform 2400*900mm Engine Rated Power 55.5/(2400)Kw/(R/Min) Transport Package Comply with Export Packaging Requirements Specification 14300*2490/3800*3070mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 8428909090 Production Capacity 10000/YearProduct Description

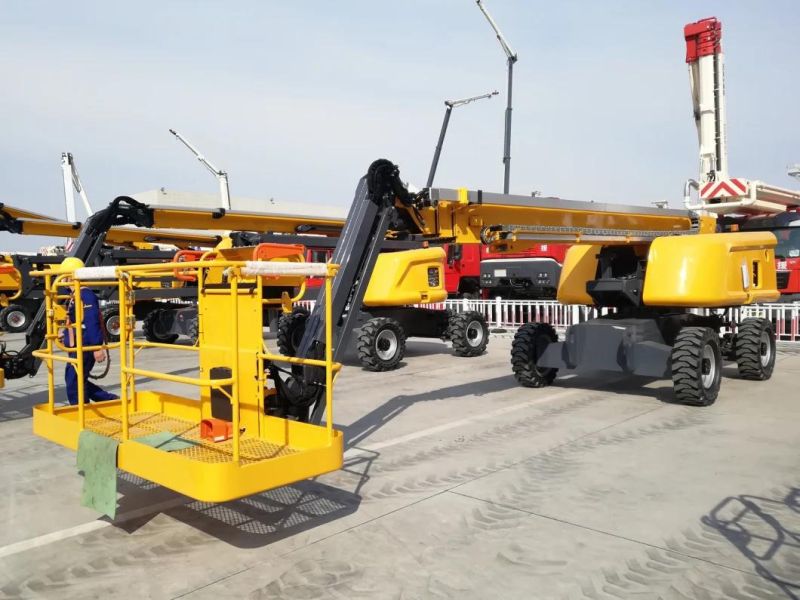

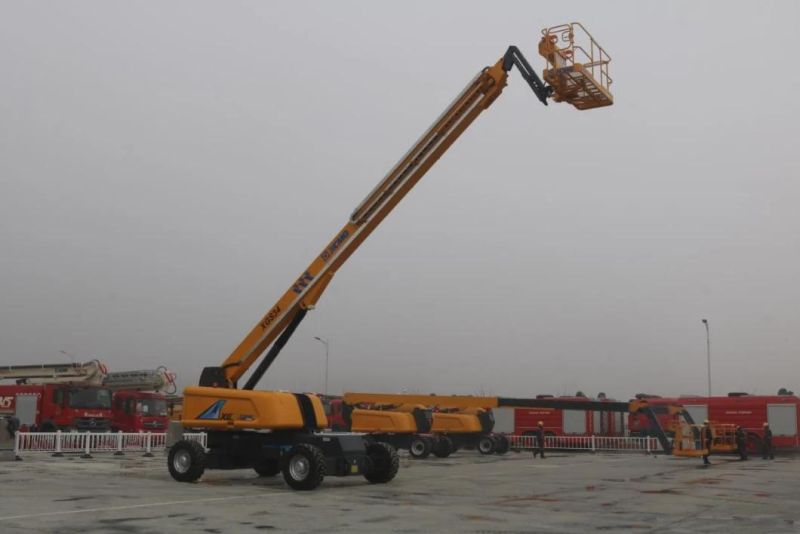

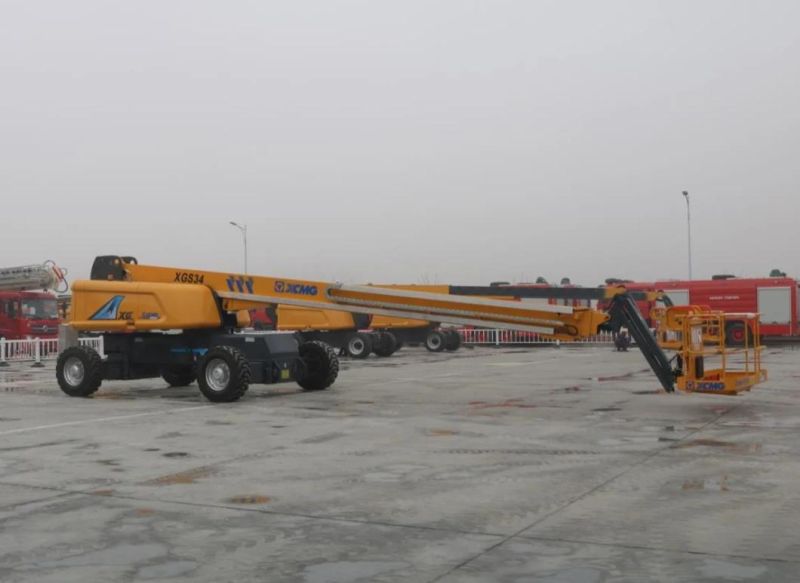

XCMG 30m mobile elevated Aerial Work Platform XGS34 Self-propelled Telescopic Boom Lift for sale

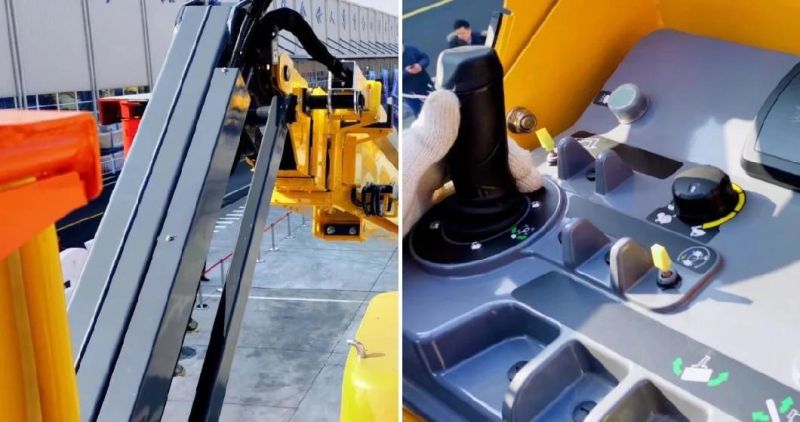

XGS34 self-propelled Telescopic Mobile Elevating Work Platform: electronic control turning, wide foam tires, excellent climbing driving, adaptive to various complicated road conditions.
Dual loading operation curves for real-time loading control; the widest operation reach of products of the same class.

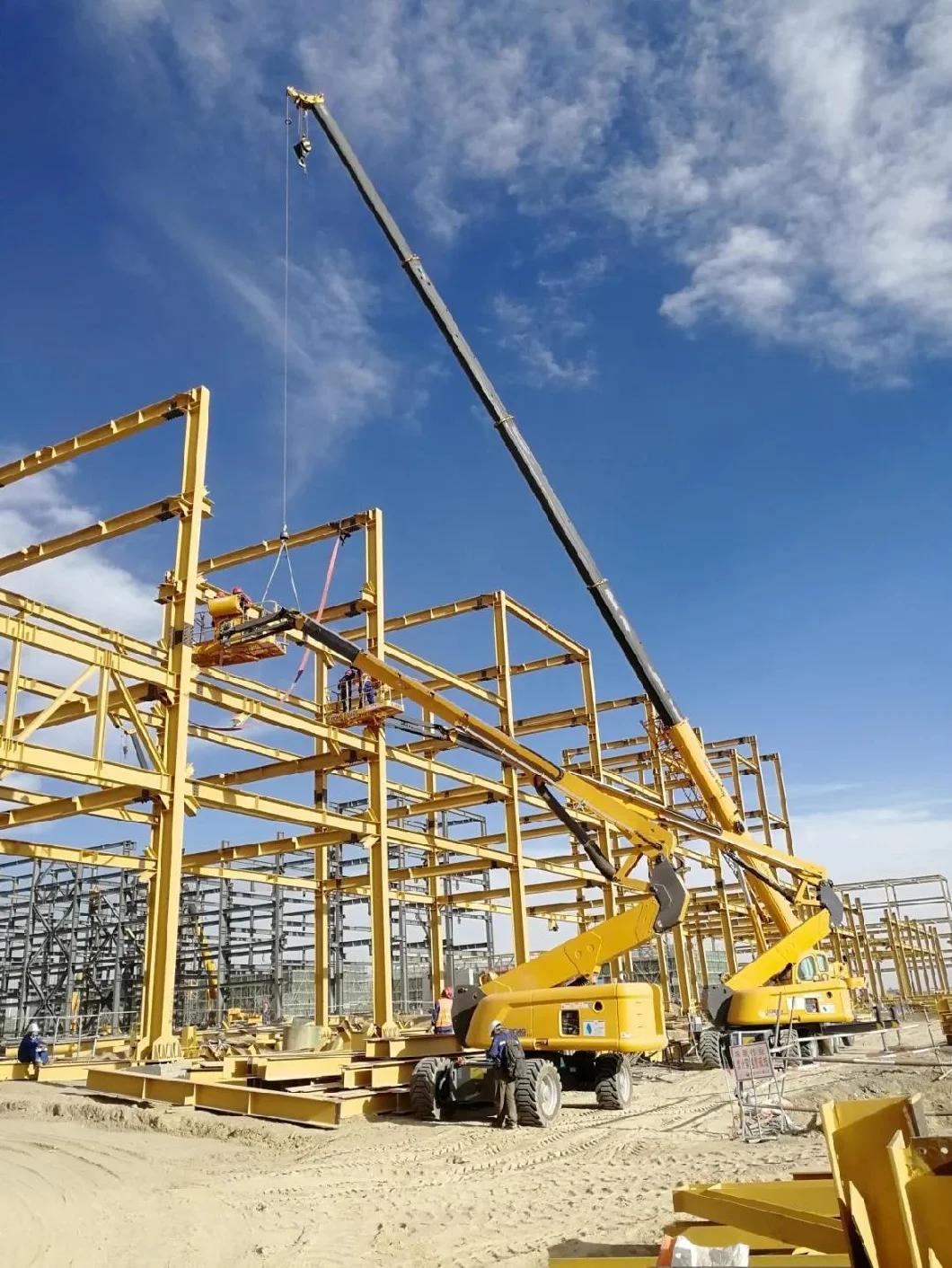

The machine meets demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry.
| Item | Unit | Parameter |
| a. Overall length of complete machine | mm | 14300 |
| b. Overall width (With shaft retracted/extended) | mm | 2490/3800 |
| c. Overall height | mm | 3070 |
| d. Wheelbase | mm | 3800 |
| Max. working height | m | 34.2 |
| Max. platform height | m | 32.2 |
| Max. working range | m | 24.6 |
| Max. load capacity | kg | 230 (unrestricted)/340 (restricted) |
| Luffing range of boom | ° | -6 ~ +75 |
| Slewing angle of turntable | ° | 360° |
| Max. rearward slewing (With shaft retracted/extended) | mm | 2085/1430 |
| Dimension of platform | mm | 2400×900 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 18400 |
| Max. traveling speed | km/h | 5 |
| Min. turning radius (axle retracted/extended) | m | 8.2/10.8 (Two-wheel steering) |
| 5.8/6.8 (Four-wheel steering) | ||
| Min. ground clearance | mm | 260 |
| Max. gradeability | % | 45 |
| Specification of tire | - | 385/65D22.5 |
| Engine model | - | Perkins1104D-44T |
| Engine rated power | kW/(r/min) | 55.5/(2400) |
