Selling CE Approved Cheap Hoist
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：<2m,min
- Maximum Lifting Height：12m
- Chain Falls：2
Base Info
- Model NO.：CH-JA
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Orange
- Warranty：1year
- Transport Package：Carton Packing or Wooden Pallet Packing
- Specification：CE, GS, TUV, ISO9001
- Trademark：LTN OR OEM
- Origin：Zhejiang, China (Mainland)
- HS Code：84251900
- Production Capacity：300000 PCS,Month
Description
Basic Info.
Model NO. CH-JA Certification CE, ISO9001:2000 Condition New Color Orange Warranty 1year Transport Package Carton Packing or Wooden Pallet Packing Specification CE, GS, TUV, ISO9001 Trademark LTN OR OEM Origin Zhejiang, China (Mainland) HS Code 84251900 Production Capacity 300000 PCS/MonthProduct Description
1. Low own weight, small mounting sizes and small lever force at full load.2. Asbestos free brake, holding load at any desired height.
3. Top & bottom hooks are fitted with safety latches as standard.
4. For DC type, the load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason free chains can not be done when the hoist is under load.
5. Short hand lever with rubber grip.
6. Hand lever operates with little effort due to optimal gear ratio.
7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8. The hoist is fitted with high grade alloy load chain.
9. Inspection of lever hoist & manuals.
| Model | CH-JA005 | CH-JA010 | CH-JA015 | CH-JA020 | CH-JA030 | CH-JA050 | CH-JA100 | CH-JA200 | |
| Capacity(Ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lift(M) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
| Running Test Load(Kn) | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 150 | 250 | |
| Effort Required to Lift Max.Load(N) | 221 | 304 | 343 | 314 | 343 | 381 | 392 | 392 | |
| No.of falls of Load Chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load Chain Diamter(MM) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Net Weight(Kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 155 | |
| Extra Weight per Meter Extra Lift(Kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |

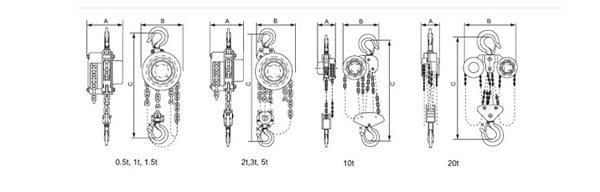

| Diamensions(MM) | a | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 189 |
| b | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 82 | |
| c | 24 | 28 | 34 | 34 | 38 | 48 | 64 | 210 | |
| e | 120 | 142 | 178 | 142 | 178 | 210 | 210 | 155 | |
| Hmin | 240 | 270 | 347 | 380 | 470 | 600 | 700 | 1000 |
