6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level
  • Moves：Moving

Base Info

  • Model NO.：MG600-1S
  • Driven Type：Hydraulic
  • Running Mode：Moving
  • Certification：CE, ISO 9001
  • Platform Height：6m
  • Working Height：8m
  • Load Capacity：125kg
  • Platform Size：0.78*0.70m
  • Gradeability：25%
  • Driving Motor：2*24V,0.4kw
  • Lifting Motor：24V,2kw
  • Power Source：2*12V,115ah
  • Charger：24V,12A
  • Weight：1102kg
  • Transport Package：PVC Film Wrapped in Pallet
  • Specification：1.36*0.79*2.08m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Basic Info.

Model NO. MG600-1S Driven Type Hydraulic Running Mode Moving Certification CE, ISO 9001 Platform Height 6m Working Height 8m Load Capacity 125kg Platform Size 0.78*0.70m Gradeability 25% Driving Motor 2*24V/0.4kw Lifting Motor 24V/2kw Power Source 2*12V/115ah Charger 24V/12A Weight 1102kg Transport Package PVC Film Wrapped in Pallet Specification 1.36*0.79*2.08m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

Self-Propelled Economical Vertical Lift
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

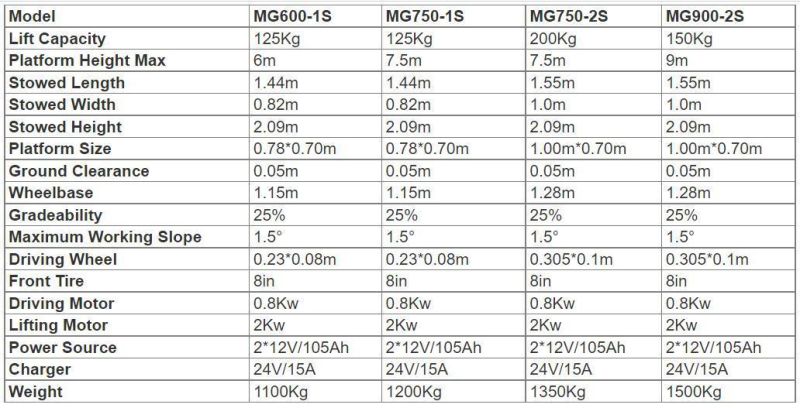

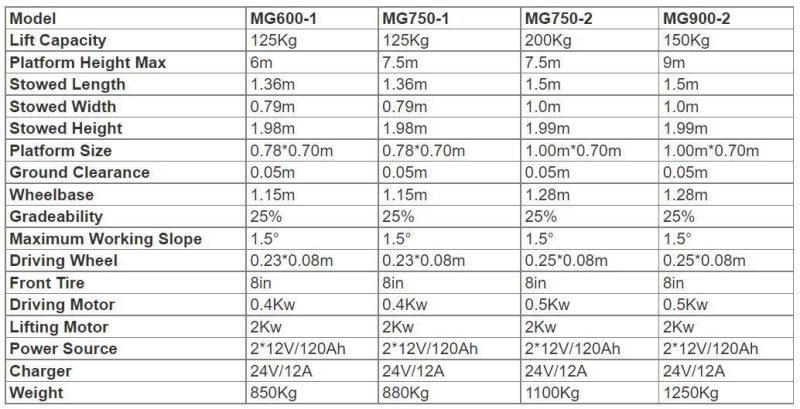

Specification:
Swivel Turning Type

6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift
Hydraulic Turning Type
6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift
Details:

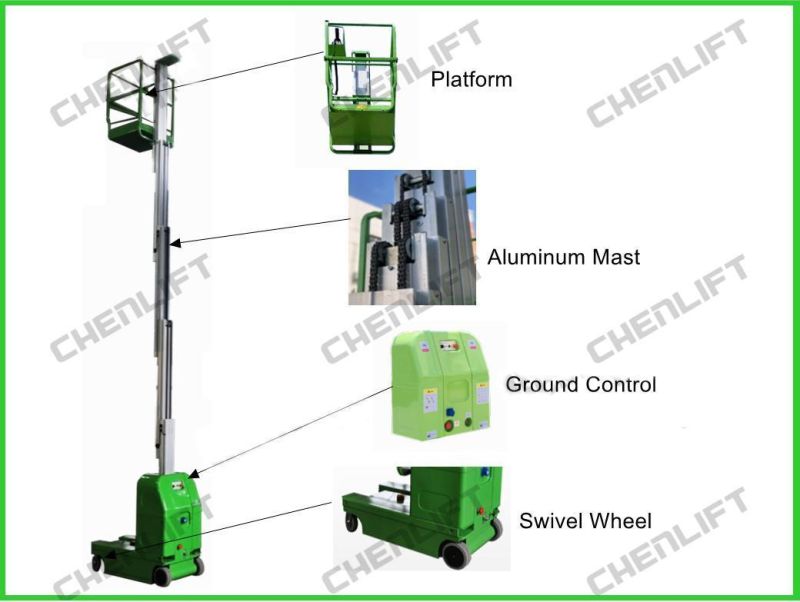

Swivel Turning Type

6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

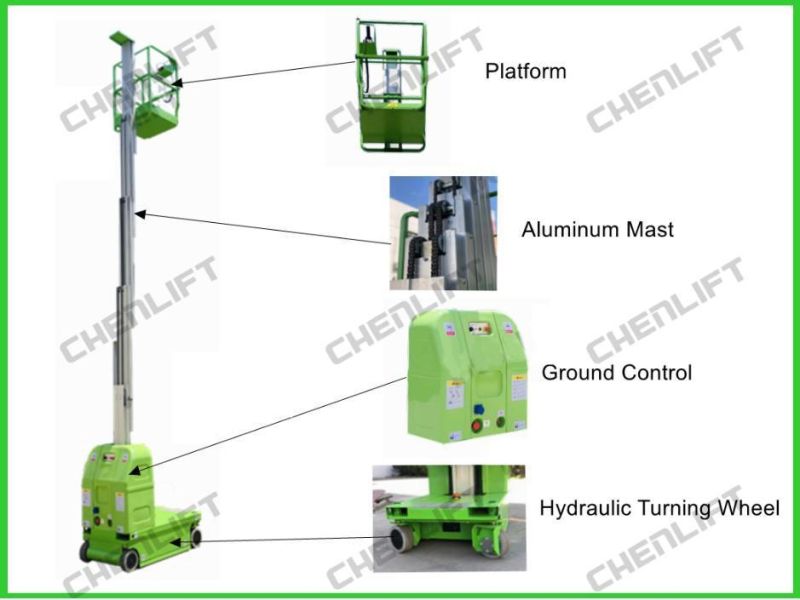

Hydraulic Turning Type

6m Single Mast Aluminum Aerial Lift Platform Electric Vertical LiftFactory Equipment
6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

Client &Exhibition
6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

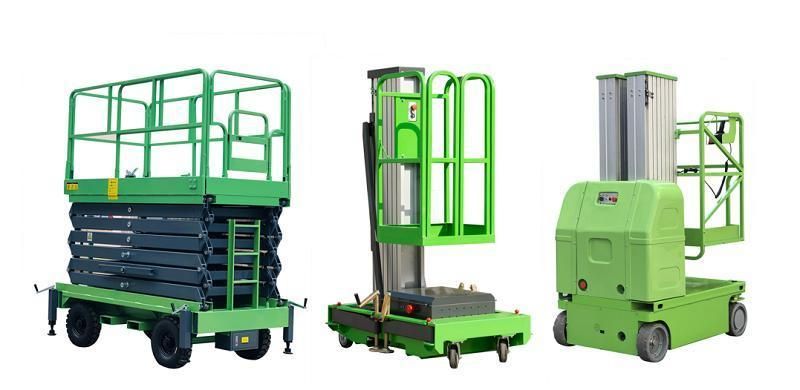

Other Related Products
6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
