Standard Low Profile U Shape Industrial Hydraulic Scissor Lift Table
Jinan PLK Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：HU-W
- Feature：Explosion-Proof, Insulating
- Certification：CE, RoHS, ISO 9001
- Color：Custom
- Load Capacity(Kg)：600 1000 1500
- Max. Platform Height (mm)：860
- Min. Platform Height (mm)：85 105
- Base Size (mm)：1335X947
- Lifting Time(S)：25-35 30-40
- Voltage (V)：Customized
- Net Weight(Kg)：207 280 380
- Transport Package：Wooden Pallet and High Quality Paper Boxes with St
- Specification：1450*985*100
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Set Per Year
Description
Basic Info.
Model NO. HU-W Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Color Custom Load Capacity(Kg) 600 1000 1500 Max. Platform Height (mm) 860 Min. Platform Height (mm) 85 105 Base Size (mm) 1335X947 Lifting Time(S) 25-35 30-40 Voltage (V) Customized Net Weight(Kg) 207 280 380 Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per YearProduct Description
Electric Hydraulic Lift Table U Shape Scissor Lift TablePLKLIFT Brands U Shape Scissor Lift Table are one of the most ideal equipment to lift goods within production lines and manufacturing environments.It is widely used in the warehouse, factory etc, to help people lifting the wooden or plastic pallet.
We produce the U shape scissor lift from 600kg~1500kg,also we can customize the products according to your specific requirement.
Data Sheet
| Model | Load Capacity(kg) | Max. Platform Height (mm) | Min. Platform Height (mm) | Platform Size (mm) | Size A (mm) | Size B (mm) | Size C (mm) | Base Size (mm) | Lifting time(s) | Voltage (v) | Net weight (KG) |
| HU600 | 600 | 860 | 85 | 1450x985 | 200 | 1080 | 585 | 1335x947 | 25-35 | customized | 207 |
| HU1000 | 1000 | 860 | 85 | 1450x1140 | 280 | 1080 | 580 | 1335x947 | 25-35 | customized | 280 |
| HU1500 | 1500 | 860 | 105 | 1600x1180 | 300 | 1194 | 580 | 1335x947 | 30-40 | customized | 380 |
This scissor lift table equipped with safety valve, to protect the safety both for goods and user. And the max. platform height is 860mm ,making the work more convenient.

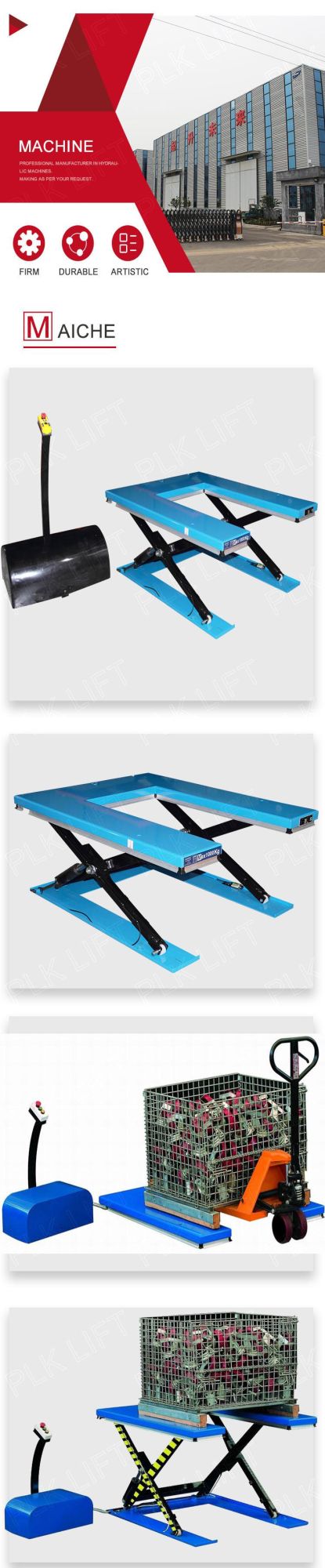

Product Show

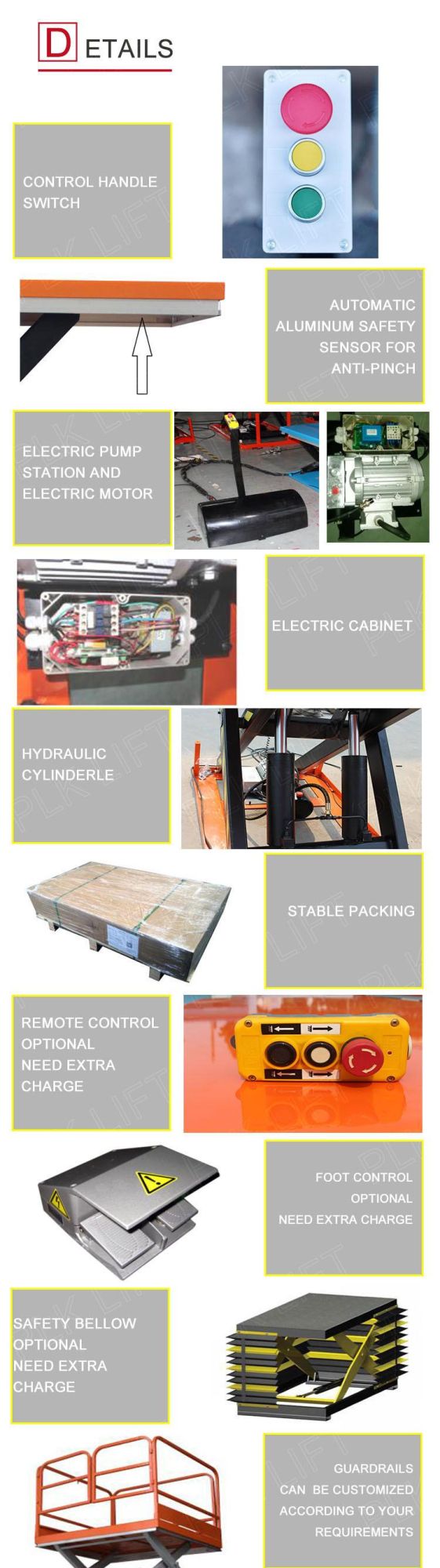

Details Show

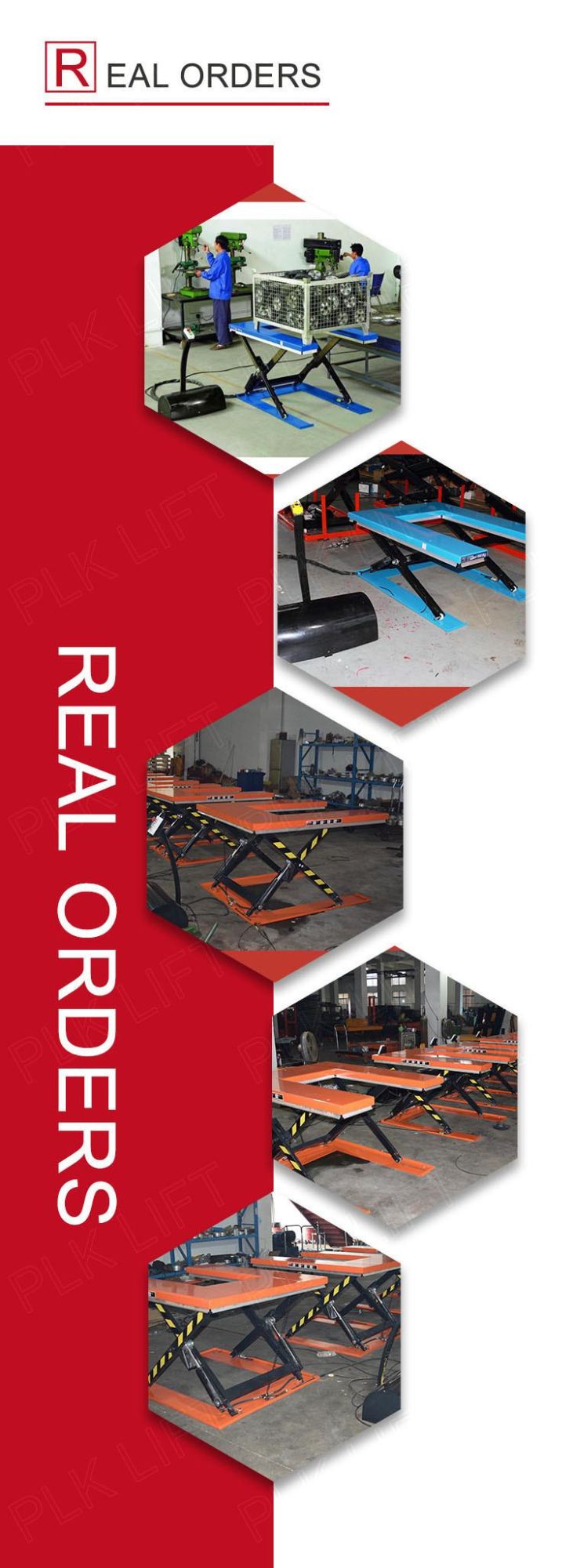

Bulk Order Show
Factory Show
