• Model NO.：DY0101159
• Running Mode：Stationary
• Certification：CE, ISO 9001
• Standard：National Standards
• Driven Mode：Electric Operated
• Chain Size：12.5mm to 120mm
• Transport Package：1sets Per Wooden Case
• Specification：CCS, BV, GL.
• Trademark：Deyuan
• Origin：China
• Production Capacity：60sets Per Month

Basic Info.

Model NO. DY0101159 Running Mode Stationary Certification CE, ISO 9001 Standard National Standards Driven Mode Electric Operated Chain Size 12.5mm to 120mm Transport Package 1sets Per Wooden Case Specification CCS, BV, GL. Trademark Deyuan Origin China Production Capacity 60sets Per Month

Product Description

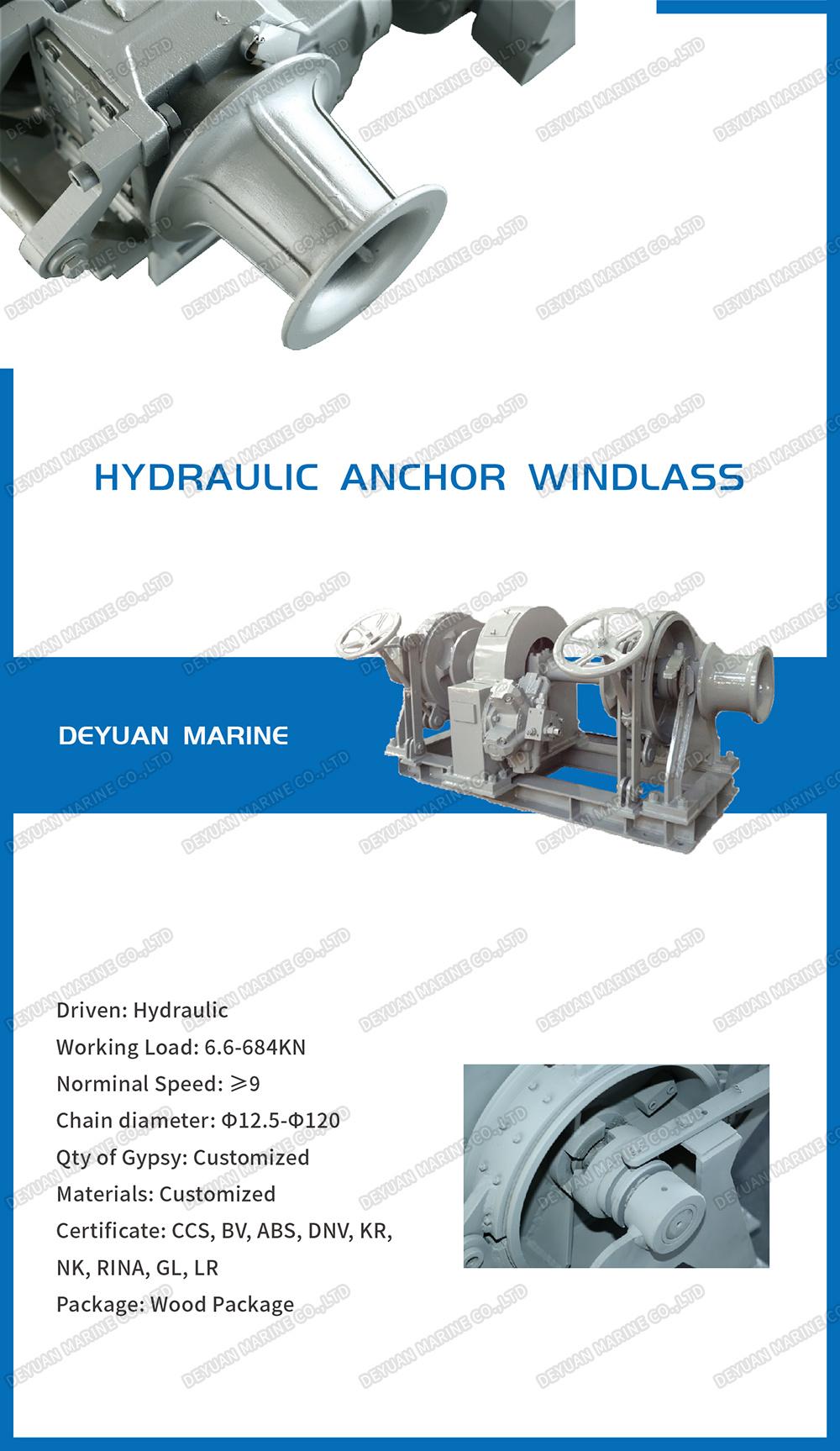

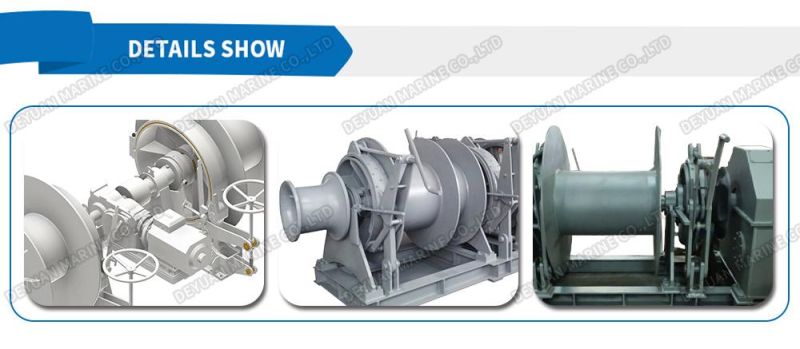

Marine Hydraulic Double gypsies Anchor Windlass
China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine deck equipment, we can offer marine hydraulic steering gear, anchor windlass, marine mooring rope capstan, marine winches. Class certificate such as CCS, ABS, DNV, BV, RINA are available, our products are in good quality with very compectitive price. If you are interested, pls feel free to contact us at any time.

Anchor Windlass Features:
1) Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 12.5mm to 120mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake

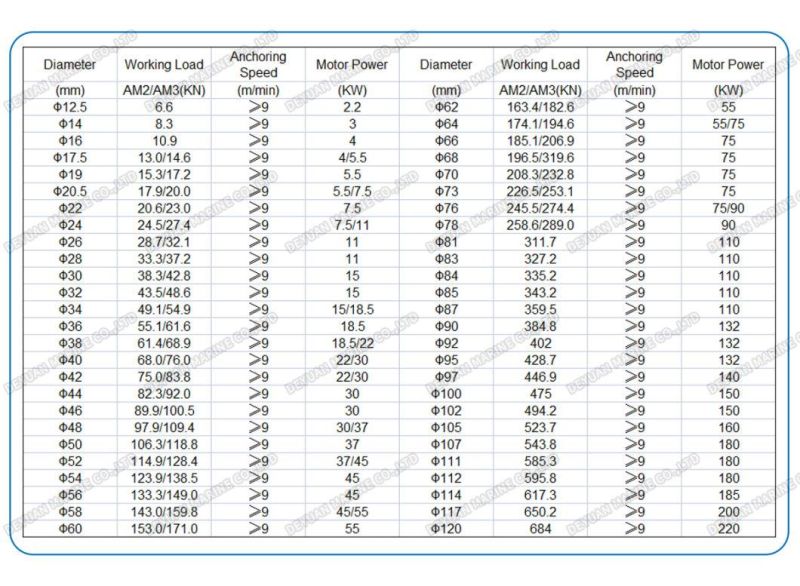

Windlasses Parameter:

Diameter	Working Load	Anchoring Speed	Motor Power
(mm)	AM2/AM3(KN)	(m/min)	(KW)
Φ12.5	6.6	≥9	2.2
Φ14	8.3	≥9	3
Φ16	10.9	≥9	4
Φ17.5	13.0/14.6	≥9	4/5.5
Φ19	15.3/17.2	≥9	5.5
Φ20.5	17.9/20.0	≥9	5.5/7.5
Φ22	20.6/23.0	≥9	7.5
Φ24	24.5/27.4	≥9	7.5/11
Φ26	28.7/32.1	≥9	11
Φ28	33.3/37.2	≥9	11
Φ30	38.3/42.8	≥9	15
Φ32	43.5/48.6	≥9	15
Φ34	49.1/54.9	≥9	15/18.5
Φ36	55.1/61.6	≥9	18.5
Φ38	61.4/68.9	≥9	18.5/22
Φ40	68.0/76.0	≥9	22/30
Φ42	75.0/83.8	≥9	22/30
Φ44	82.3/92.0	≥9	30
Φ46	89.9/100.5	≥9	30
Φ48	97.9/109.4	≥9	30/37
Φ50	106.3/118.8	≥9	37
Φ52	114.9/128.4	≥9	37/45
Φ54	123.9/138.5	≥9	45
Φ56	133.3/149.0	≥9	45
Φ58	143.0/159.8	≥9	45/55
Φ60	153.0/171.0	≥9	55
Φ62	163.4/182.6	≥9	55
Φ64	174.1/194.6	≥9	55/75
Φ66	185.1/206.9	≥9	75
Φ68	196.5/319.6	≥9	75
Φ70	208.3/232.8	≥9	75
Φ73	226.5/253.1	≥9	75
Φ76	245.5/274.4	≥9	75/90
Φ78	258.6/289.0	≥9	90
Φ81	311.7	≥9	110
Φ83	327.2	≥9	110
Φ84	335.2	≥9	110
Φ85	343.2	≥9	110
Φ87	359.5	≥9	110
Φ90	384.8	≥9	132
Φ92	402	≥9	132
Φ95	428.7	≥9	132
Φ97	446.9	≥9	140
Φ100	475	≥9	150
Φ102	494.2	≥9	150
Φ105	523.7	≥9	160
Φ107	543.8	≥9	180
Φ111	585.3	≥9	180
Φ112	595.8	≥9	180
Φ114	617.3	≥9	185
Φ117	650.2	≥9	200
Φ120	684	≥9	220



If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.
