• Model NO.：HSY
• Certification：CE
• Condition：Used
• Color：Yellow
• Hook：Forged
• Voltage：220-440V
• Phase：3 Phase
• Standard Lifting：3m
• Chain Hoist：Yes
• Double Speed：Can Supply
• Delivery Time：Within 5 Days After Payment
• Transport Package：Wooden Case
• Specification：70*37*43
• Trademark：hugo
• Origin：China
• HS Code：84251100
• Production Capacity：5000

Basic Info.

Model NO. HSY Certification CE Condition Used Color Yellow Hook Forged Voltage 220-440V Phase 3 Phase Standard Lifting 3m Chain Hoist Yes Double Speed Can Supply Delivery Time Within 5 Days After Payment Transport Package Wooden Case Specification 70*37*43 Trademark hugo Origin China HS Code 84251100 Production Capacity 5000

Product Description

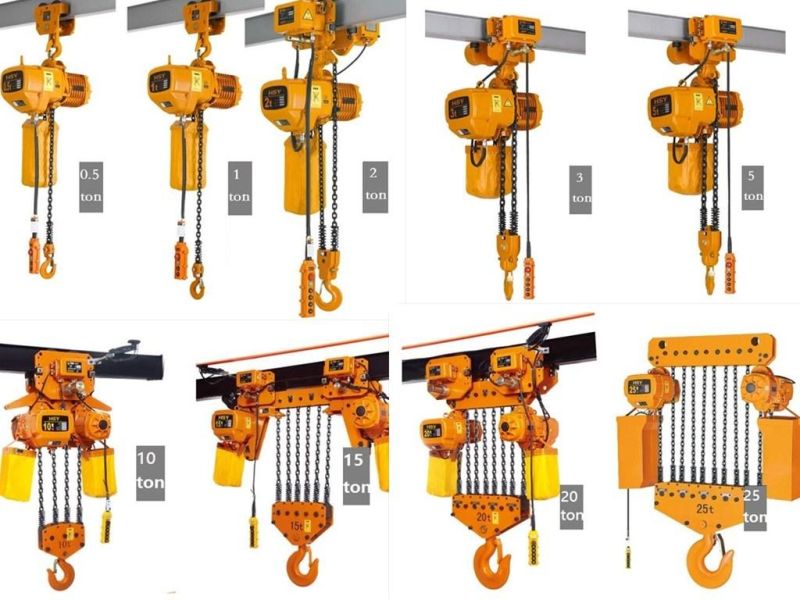

380v 3 phase electric chain hoist with hand trolley for lifting winch


1. Hooks
Instructions of Latest Hot Selling!! Custom Design low clearance electric chain hoist with good prices
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.
4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Fits operator's hand operation. Impact and chemical atmosphere resistant.

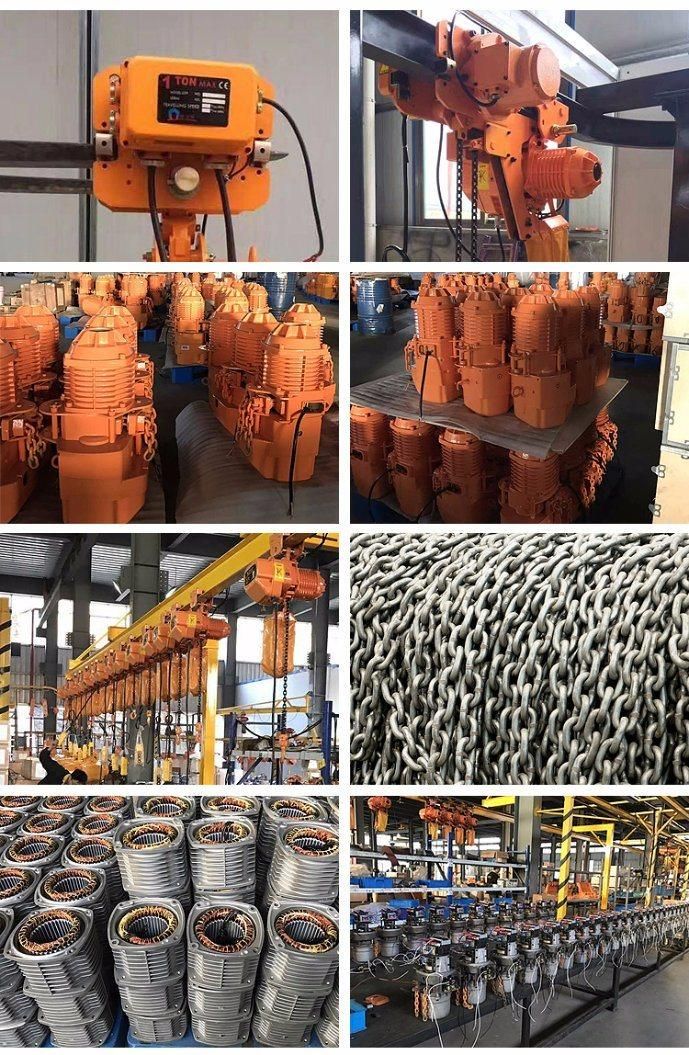

  Before delivery HUGO brand electric hoist is tested by the no-load and load for many times.
