• Model NO.：MINI-UVL-750
• Certification：CE
• Volt：12-24V
• Platform Size：750mm*1100mm
• Loading Capacity：300kg
• Overall Width：970mm
• Overall Length：1615mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. MINI-UVL-750 Certification CE Volt 12-24V Platform Size 750mm*1100mm Loading Capacity 300kg Overall Width 970mm Overall Length 1615mm Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

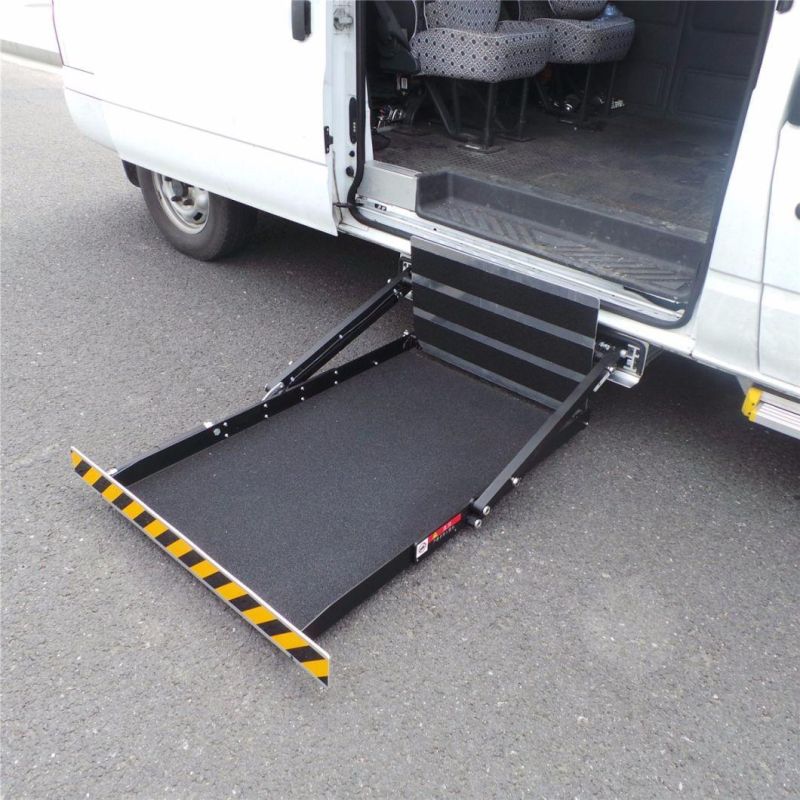

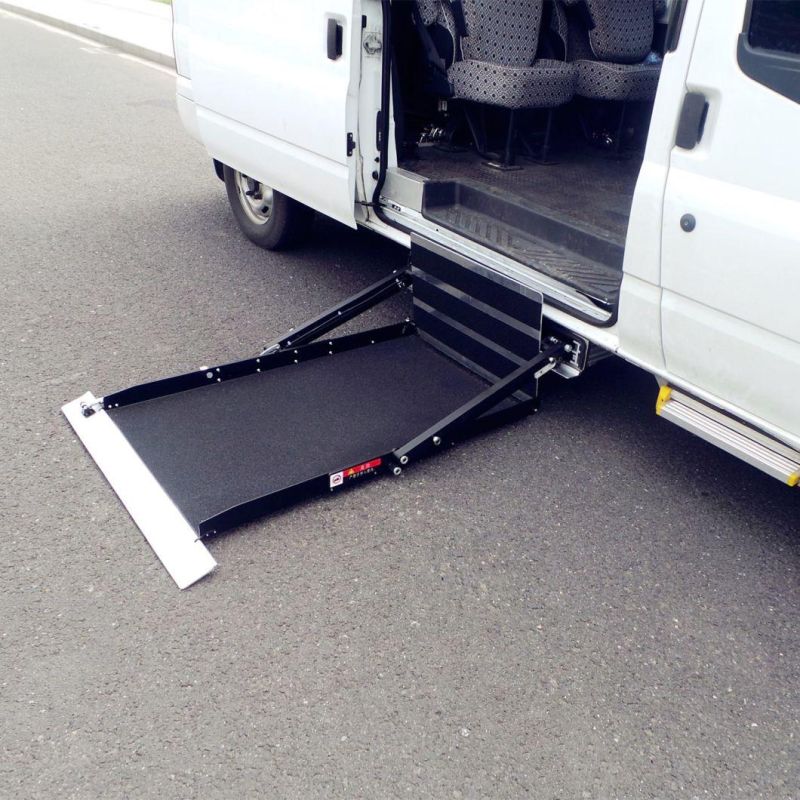

• This lift is designed for van to help wheelchair occupant to get on van while seated on his wheelchair.

• It is installed under the chassis of van side door.

• It stays out of way and out of signt when not in use, so it can provide clear path and good visibility for passengers.

• The frame is super thin with thickness only 90mm.

• This lift can be operated by the wired remote control or your mobilephone, and it can be operated manually for emergency.

• Loading capacity is 300kg;

Advantages:

• Super thickness, only 90mm;

• Door interlock function;

• Inside safety locking device;

• Provides clear path and good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Anti-skid platform;

• Manual backup function;

• CE certificate;

• High-gloss polyester powder coat finish to prevent corrosion;

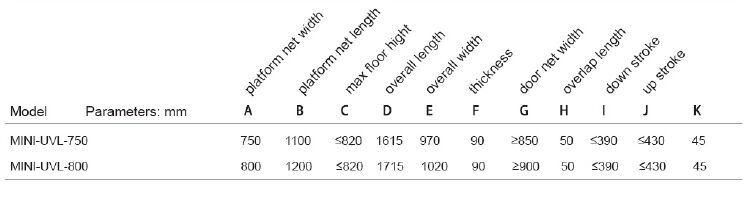

Model	Platform Size	Overall Length	Overall Width	Floor Height	Volt	Loading Capacity
MINI-UVL-750	750mm*1100mm	1615mm	970mm	820mm	12-24V	300KG
