• Model NO.：JMM
• Tonnage：15T
• Reel Number：1
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Cranes,Construction Site,Boat,Vessel,Shipyard,etc
• Motor Type：Yzr250m2-8
• Voltage：380V 50Hz 3p or Customized
• Transport Package：Wooden Package & Container
• Specification：3750*2400*1850mm
• Trademark：NYBON
• Origin：Henan Province, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JMM Tonnage 15T Reel Number 1 Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Cranes,Construction Site,Boat/Vessel,Shipyard,etc Motor Type Yzr250m2-8 Voltage 380V 50Hz 3p or Customized Transport Package Wooden Package & Container Specification 3750*2400*1850mm Trademark NYBON Origin Henan Province, China Production Capacity 100 Sets Per Month

Product Description

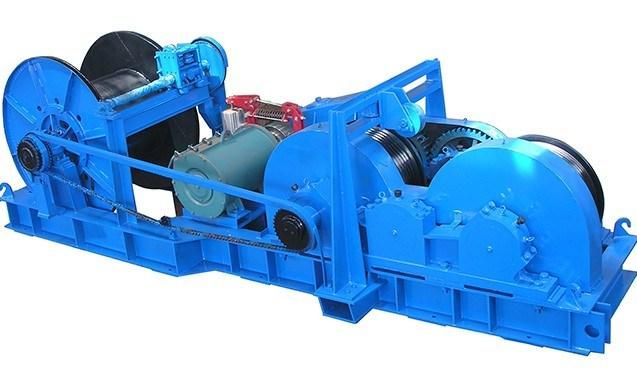

JMM Heavy load double drum Electric Winch for PortJMM Heavy load double drum Electric Winch for Port, is one kinds of small lifting equipment. It can be vertical, horizontal and
inclined lifting or pulling heavy objects.Not only be used alone but be used for crane manufacturing as main hoisting
mechanism .Reasonable designed structure ,easy operation and excellent working performance .Electric winch be widely
used in construction site, mine, factory, port pier, crane manufacturing ,etc material lifting or traction.

Type	Rated Load	Rated Speed	Rope Capacity(m)	Rope Dia.	Motor Type	Dimension(mm)	Weight(kg)
JMM10	100	10	4800	30	YZR225M-6	1980*2650*850	6000
JMM16	160	11	1000	34.5	YZR225M2-6	3350*1920*1320	9500
JMM20	200	11	3600	39	YZR280S-6	3500*1960*1320	10000
JMM32	320	10	3200	52	YZR280M-6	4330*2350*1760	16000
JMM55	550	5	2000	60	YZR280M-6	5000*2800*1900	22000

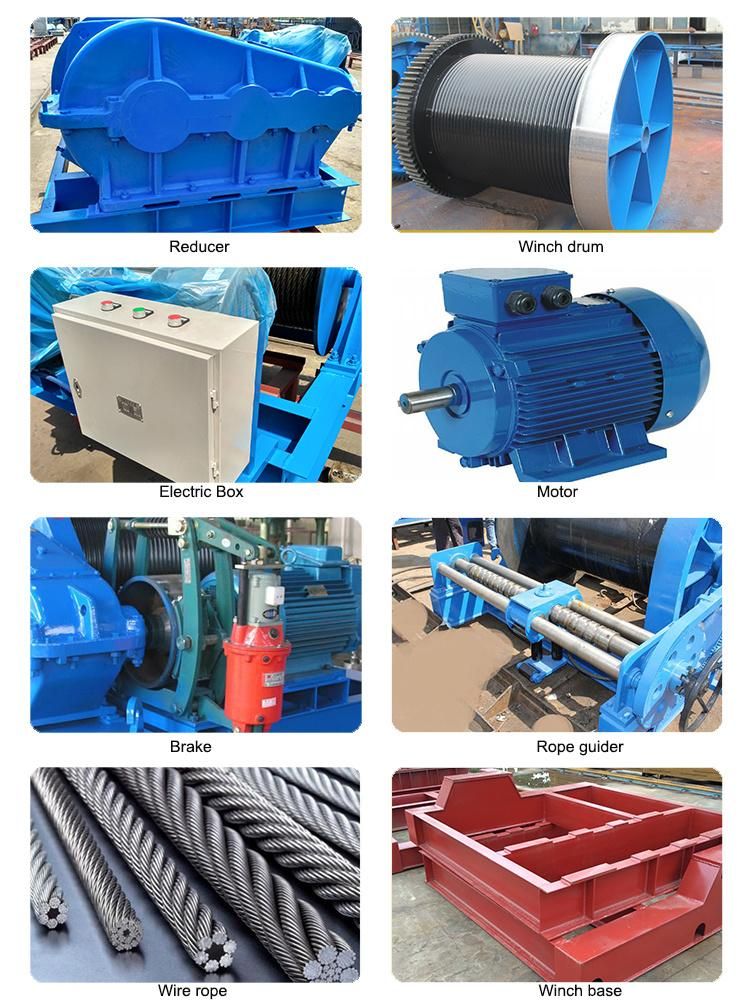

Conponents of JMM Heavy load double drum Electric Winch for Port

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

8. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
