• Model NO.：ATB0.2-16
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Power：2.2kw
• Min. Lifting Height：2.1m
• Transport Package：Stretch Film & Plywood Case
• Specification：900*700mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：10 Units, Month

Basic Info.

Model NO. ATB0.2-16 Feature Explosion-Proof Certification CE, ISO 9001 Power 2.2kw Min. Lifting Height 2.1m Transport Package Stretch Film & Plywood Case Specification 900*700mm Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 10 Units/ Month

Product Description

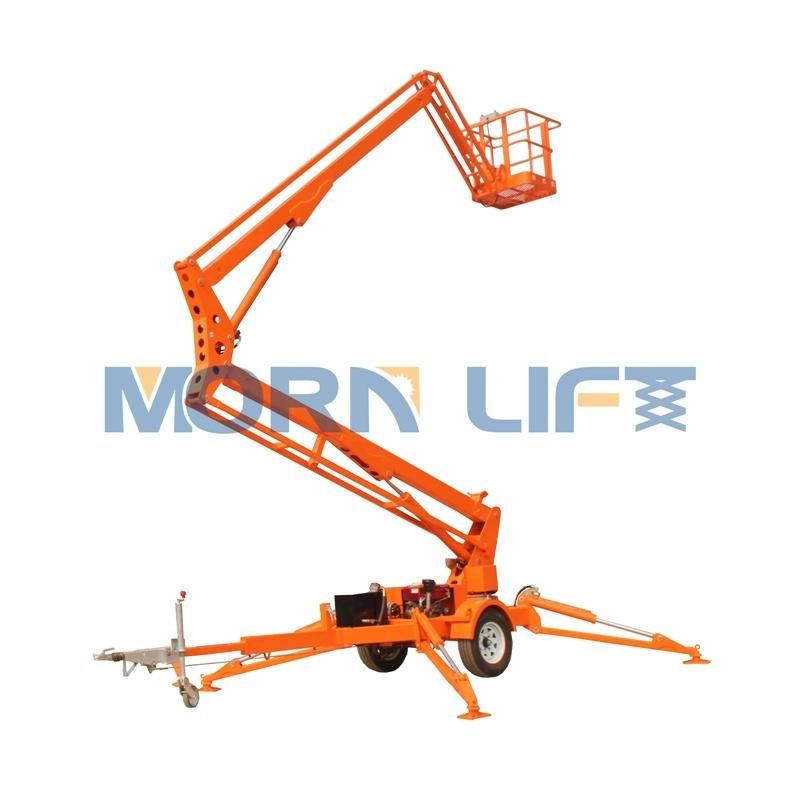

Detail about 16m Mobile Towable Boom Lift for Sale


Towable boom lifts are convenient, easy and reliable models for accessing whatever height needed.
Most towable boom lift models have a maximum capacity of 200kg, and with bespoke options available, they can easily lift user for carrying out aerial work. The boom lift options are all built with safety and durability in mind. Users will feel safe and secure in the knowledge that our models will carry them to and from locations with ease, stability and security.

Model	ATB0.2-16
Platform size	900*700mm
Lift height	16m
Max. work height	17.8m
Load capacity	200kg
Working Radius	8m
Dimension	6.4*1.8*2.2m
Anti-wind grade	≤5
Self-weight	2600kg
Lift power	petrol, diesel, storage battery, AC, or double power engine

Safety and Advantage1.Hydraulic pipe and hydraulic lock on the cylinder
Its function is to prevent hydraulic oil backflow when the oil pipe accidental break and decompression. Better protect user's safety.

2.Outriggers legs and balance sensor
Function: the 4 outriggers legs keep the tire from the ground and moving, keep the boom lift and human stable and safety.
The balance sensor could auto test whether 4 sets outrigger legs are on the same level or not. If on the same level, it would show a green light, or the red light would be shown and the tow-able boom lift would not start work.

3. The alarm on the towable boom lift keeps ringing when the machine is working, warning people around to be careful.

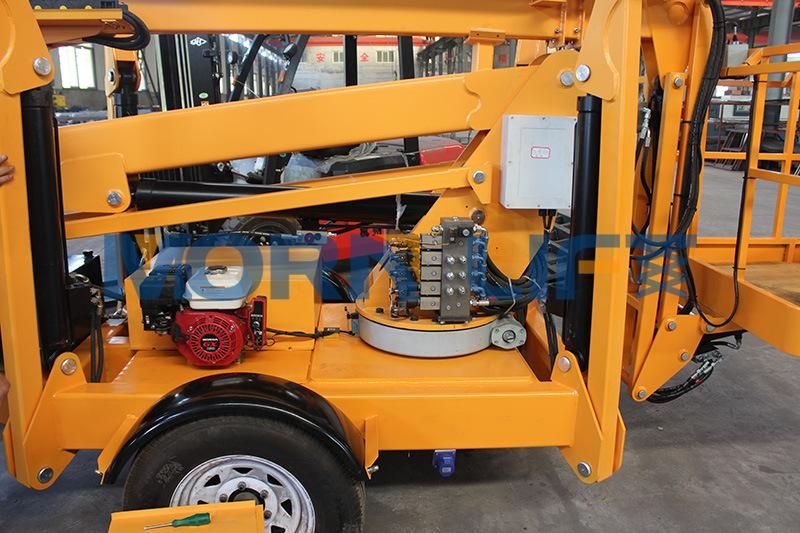

4. The rotary table is water-proof, IP65
The rotary table is big and water-proof, dust-proof, it ensures the boom lift's rotation.

5.Guardrail outside the platform
Function: protect the hand from nipped when hand holds the platform near an obstacle.

6.Lock in the front on the boom
Function: to keep the booms stable when moving the machine in case of damage

7.Trailing system
The trailing system Morn used is imported from Italy.

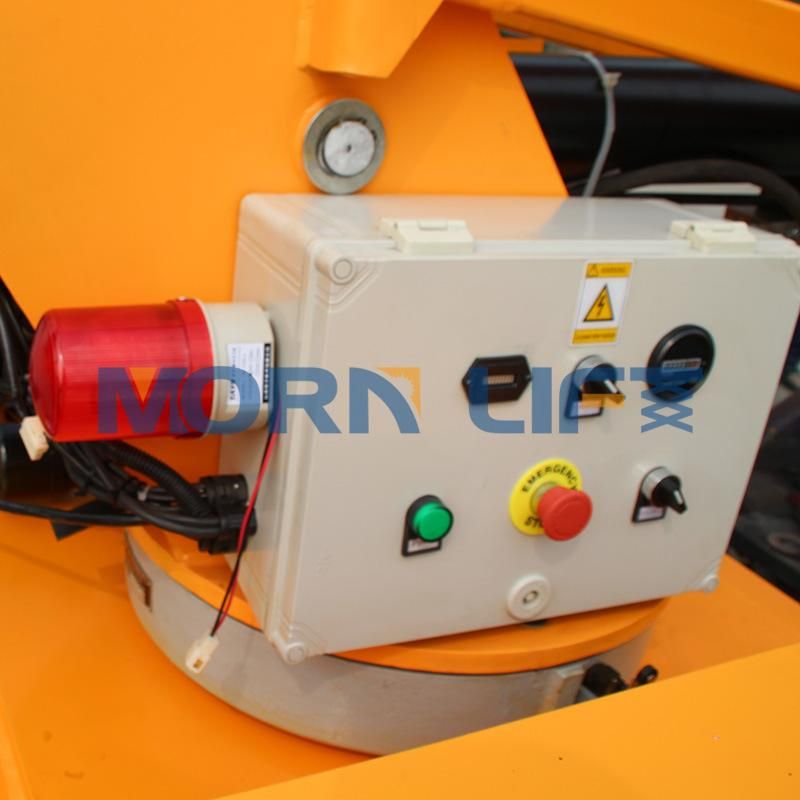

8. Emergency stop
The boom lift will be stopped in case of any emergency



Our company
Jinan Sinicmech Machinery Jinan Sinicmech Machinery(Morn Group Co.,Ltd. Is a professional manufacturer engaged in producing hydraulic lift platforms and is also the biggest producer in making aerial work platforms, hydraulic scissor lift, boom lift and dock levelers.

MORN GROUP is visited by many customers from different countries.
They coming for test our lifts, plants, designs and place the order in the office after negotiation. Welcome you to come and test MORN lifts in person
