Ce Certified Wheelchair Elevator for Van with Loading Capacity 300kg

Changzhou Xinder-Tech Electronics Co., Ltd.
  • Application：Wheelchair Van
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：300kg
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：WL-UVL-700-F
  • Feature：for Wheelchair Passenger Lift
  • Certification：CE
  • Platform：1075*730mm
  • Loading：300kg
  • Dimension：1110*1130*130mm
  • Max Lifting Height：670mm
  • Drive Mode：Electric,Hydraulic
  • Volt：12V or 24V
  • Transport Package：Plywood Case
  • Specification：170kg
  • Trademark：Xinder
  • Origin：Cn
  • HS Code：8428909090
  • Production Capacity：5000,Year

Description

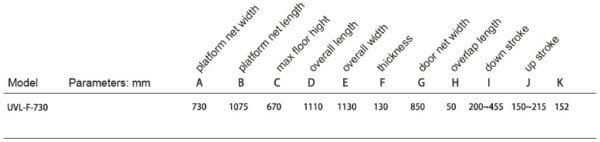

ModelVoltagePowerPressureCylinder diameter&strokeWL-UVL-700-F12V/24V0.8KW2500PsiΦ60 X70 unidirectional operationLoading capacityMax lifting heightDrive modeDimensionsPlatform size300 Kg670mmElectric1110*1130*130mm730*1075mmCe Certified Wheelchair Elevator for Van with Loading Capacity 300kg
