• Model NO.：WT010201
• Running Mode：Stationary
• Feature：Insulating
• Certification：CE
• Standard：Nonstandard
• Certificate：CCS, ABS, BV, Gl, Lr, Dnv etc.
• Power Source：Electric Power
• Chain Dia.：12.5-114m
• Transport Package：Wooden Pallet
• Specification：As per request
• Trademark：WEITONG MARINE
• Origin：Jiangsu, China
• HS Code：8425319000
• Production Capacity：2000,PCS,Per Year

Basic Info.

Model NO. WT010201 Running Mode Stationary Feature Insulating Certification CE Standard Nonstandard Certificate CCS, ABS, BV, Gl, Lr, Dnv etc. Power Source Electric Power Chain Dia. 12.5-114m Transport Package Wooden Pallet Specification As per request Trademark WEITONG MARINE Origin Jiangsu, China HS Code 8425319000 Production Capacity 2000/PCS/Per Year

Product Description

Electric Marine Windlass Combined Mooring Anchor Winch
     Electric Marine Windlass Combined Mooring Anchor Winch supplied by China Weitong Marine is of reasonable structure design,easy and safe operation,less noise,perfect erosion resistant coating,and competitive price, and can be approved by certificates: ABS,CCS,BV,GL,LR etc.,

Anchor Windlass and Mooring Winch is designed for different applications.The driven type can be electric or hydraulic. Weitong Marine can offer customization service for your application to customize anchor windlass according to your requirment or drawings. Any question or comment is much appreciated,pls donnot hestate to leave us a message for more details.

Specification
 *Driven Mode :Electric
* Configuration: windlass brakes,warping end,hydraulic motor, drum, main axis, drum brake,     operation mechanism of clutch,supporting walls and the base,etc.
* Chain Diameter: From 12.5mm to 114mm.
* Anchor hoist normal speed: ≥ 9m/min
* Rated Pull: From 6 KN to 617 KN
* Holding Load: with chain stopper, breaking Load
* Brake: Manual or Hydraulic
* Claws Clutch: Manual or Hydraulic
* Warping load: 5 KN to 350 KN

Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., double check is a must.
4. Advanced facility
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. On time delivery as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any comment or inquiry, please feel free to contact us for more details
Ms Kate


Website: weitongmarine.en.made-in-china.com

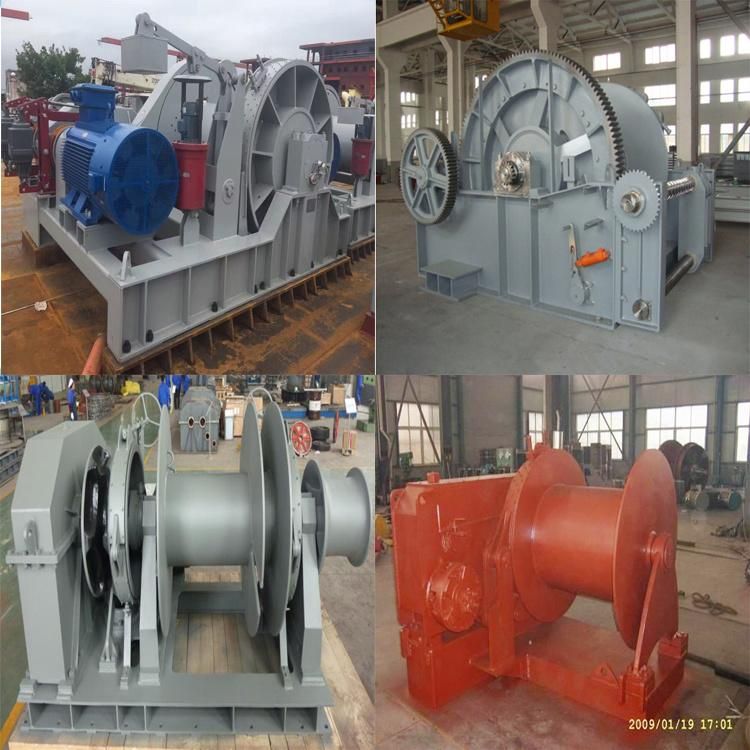

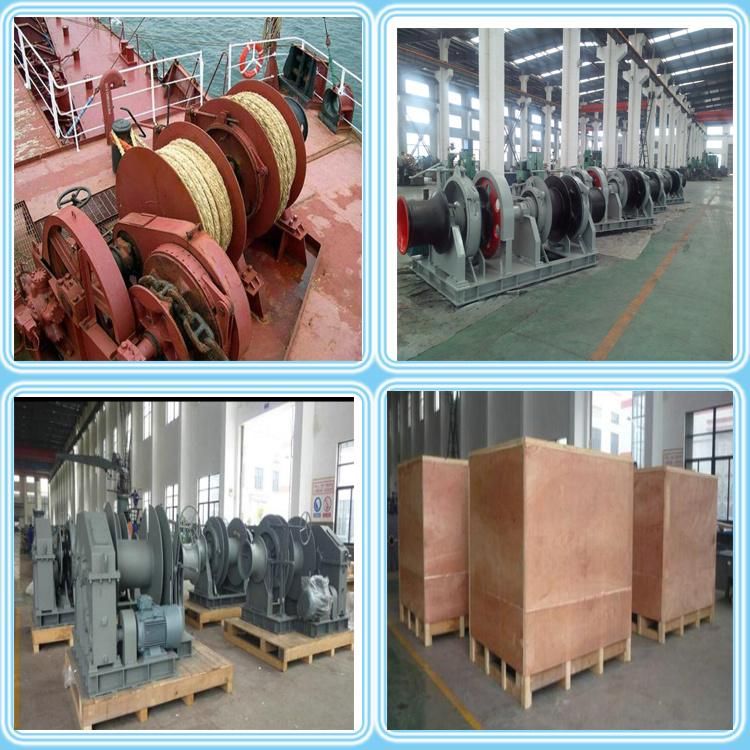

Other Product Photos
