Hydraulic Pump Kit Car Jack Power Units

Wuxi Hyphen Technology Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Stationary
  • Driven Type：AC
  • Running Mode：Stationary

Base Info

  • Model NO.：HPM
  • Certification：ISO 9001
  • Transport Package：Nude
  • Specification：HPM12 HPM24
  • Trademark：HYPHEN
  • Origin：Wuxi
  • HS Code：8412291000
  • Production Capacity：1000

Description

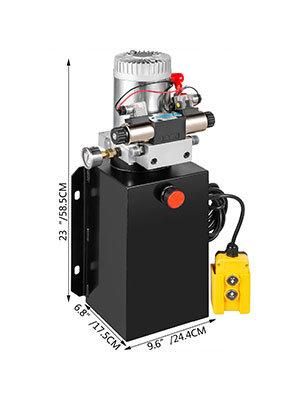

Hydraulic Pump Kit Car Jack Power Units6 Quart Double Acting Hydraulic Power Units with Hydraulic Gauge
It has unique features among the other hydraulic power unit on the market, has a powerful double-acting hydraulic cylinder pump, advanced brass pressure pump, and remote control, working excellent in lifting and pushing devices like dump trailer, lift gates, and tow trucks.
  • Upgrade Hydraulic Power Unit
  • Double Acting & Fast Start
  • Quick Lifting & Lowering
  • 15ft Controller Easy to Use
Specifications
  • Mode: Double-Acting Power-Up/ Power-Down
  • Tank Material: Metal
  • Tank Capacity: 6L/ 6 qt/ 1.5 Gal
  • Flow: 2.0 GPM
  • Max. Relief Valve Setting A Port: 3200 PSI
  • Max. Relief Valve Setting B Port: 1500 PSI
  • Rated Speed: 2850R/MIN
  • Voltage: DC12V
  • Power: 1.6KW (Rated), 3.0KW (Max)
  • Duty: 3 Min
  • Traffic: 1.1 cc/r
  • Rotation: Clockwise
  • Connector: SAE # 6
  • Mount Position: Horizontal/ Vertical
  • Control: Solenoid and Handheld Pendant
  • Pendant Control Length: 15ft/ 4.5 m
Package Content
  • 1 x 6 Quart Double Acting Hydraulic Pump w/ Gauge
  • 1 x English Manual
  • 2 x SAE # 6 Connectors

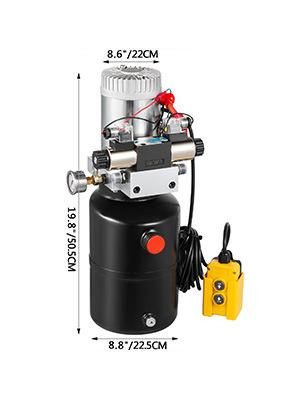

10 Quart Double Acting Hydraulic Power Unit with Hydraulic Gauge
It has unique features among the other hydraulic power unit on the market, has a powerful double-acting hydraulic cylinder pump, advanced brass pressure pump, and remote control, working excellent in lifting and pushing devices like dump trailer, lift gates, and tow trucks.
  • Upgrade Hydraulic Power Unit
  • Double Acting & Fast Start
  • Excellent Oil Output
  • Fully Equipment
Specifications
  • Quart: 10 Quart
  • Reservoir: Metal Reservoir
  • Motor voltage: DC12V
  • Acting: Double-acting
  • Interface: sae6
  • Horizontal mount
  • 1500 PS Max Relief Setting on B port
  • 3200 PSI Max. Relief Setting for Increased Lifting Power on A port
  • Hand held pendant with 15 feet(4.5m)removal cord
Package Content
  • 1 x 12V DC 10 Quart double-acting power unit (with a pressure gauge)
  • 1 x Remote controlled pendant
  • 1 x set of sae6 interface
  • 1 set of seal ring & gasket

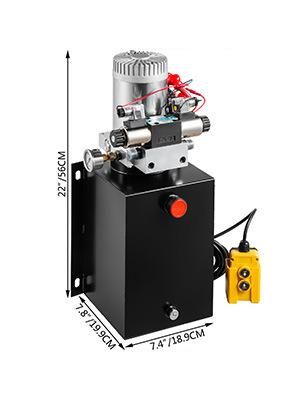

Hydraulic Pump Kit Car Jack Power Units12 Quart Double Acting Hydraulic Power Unit with Hydraulic Gauge
It has unique features among the other hydraulic power unit on the market, has a powerful double acting hydraulic cylinder pump, advanced brass pressure pump, and remote control, working excellent in lifting and pushing devices like dump trailer, lift gates, and tow trucks.
  • Upgrade Hydraulic Power Unit
  • Double Acting & Fast Start
  • Excellent Oil Output
  • Fully Equipment
Specifications
  • Quart: 12 Quart
  • Reservoir: Metal Reservoir
  • Motor voltage: DC12V
  • Acting: Double-acting
  • Connector: SAE6 (9/16")
  • Horizontal mount
  • 1500 PS Max Relief Setting on B port
  • 3200 PSI Max. Relief Setting for Increased Lifting Power on A port
  • Hand held pendant with 15 feet(4.5m)removal cord
Package Content
  • 1 x 12V DC 12 Quart double-acting power unit (with a pressure gauge)
  • 1 x Remote controlled pendant
  • 1 x set of sae6 interface
1 set of seal ring & gasketHydraulic Pump Kit Car Jack Power Units
