25ton Electric Hydraulic Power Plant Winch for Pulling Pipe
Qingdao Evertech Industry Co., Ltd.- Type:Electric Winch, Standard
- Driven Type:DC
- Speed:Slow
- Carrying Capacity:Weight Level
- Tonnage:25T
- Reel Number:1
Base Info
- Model NO.:JK 25ton
- Running Mode:Stationary
- Feature:Explosion-Proof
- Certification:GS, CE, RoHS, ISO 9001
- Standard:National Standards
- Application:Cranes
- Capacity:5 Ton
- Color:Customized
- Material:Steel
- Usage:Carrying Heavy Goods
- Overall Dimension:1900X1700X950
- Control:Cam Controller
- Lift Speed:8-16m,Min
- Rope Diameter:7.7~65mm
- Motor:Chinese Famous Brand
- Transport Package:Wooden Case
- Specification:Electric
- Trademark:Evertech
- Origin:Qingdao, China
- HS Code:84253190
- Production Capacity:100 Set,Sets Per Month
Description
Basic Info.
Model NO. JK 25ton Running Mode Stationary Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001 Standard National Standards Application Cranes Capacity 5 Ton Color Customized Material Steel Usage Carrying Heavy Goods Overall Dimension 1900X1700X950 Control Cam Controller Lift Speed 8-16m/Min Rope Diameter 7.7~65mm Motor Chinese Famous Brand Transport Package Wooden Case Specification Electric Trademark Evertech Origin Qingdao, China HS Code 84253190 Production Capacity 100 Set/Sets Per MonthProduct Description

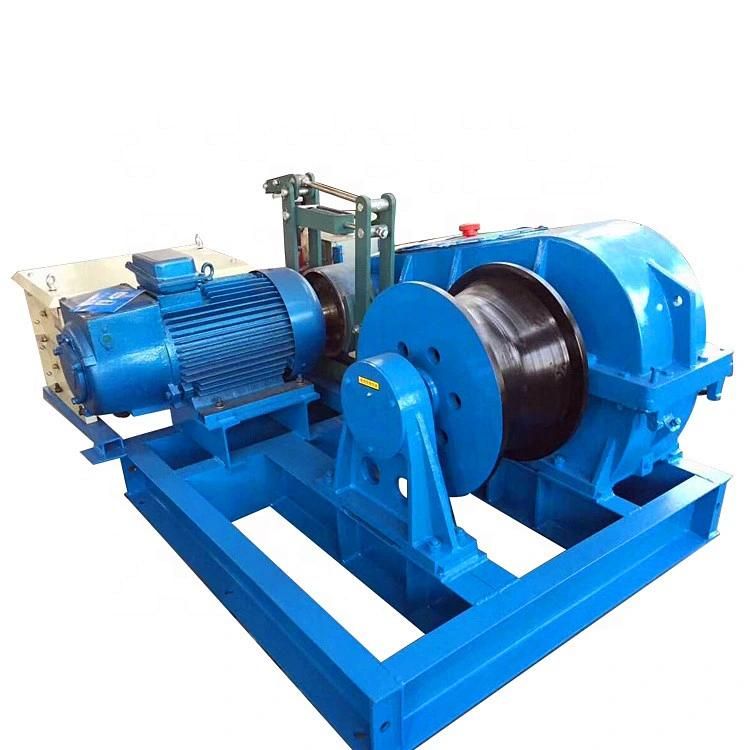

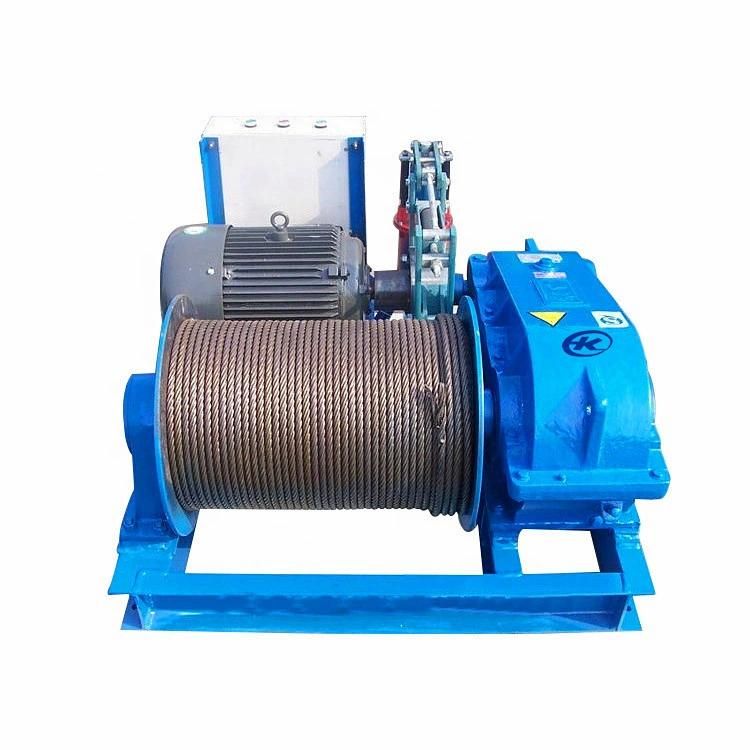

25ton electric hydraulic power plant winch for pulling pipe

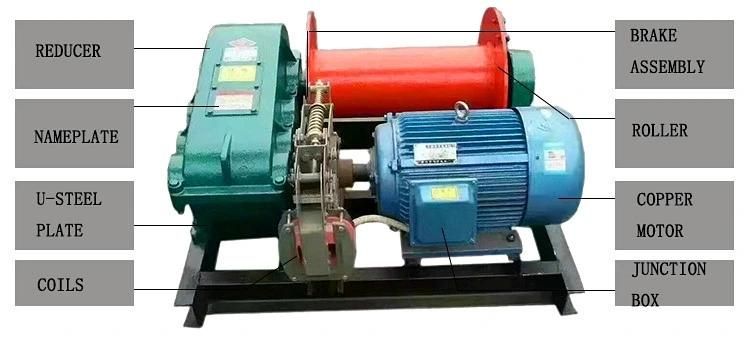

Product DescriptionJM Model Diesel Engine Winch 5 Ton is composed of roller drum, gearbox, diesel engine and base frame. Working principle: The winch groove is used to directly connect the wire rope to the traction slot, with diesel engine, motor as power, gearbox speed to achieve the required speed, the machine is located in the steel structure, stable and easy to move.Specifications
Model | Capacity (KN) | Speed of rope(m/min) | Rope Capacity (m) | Rope Diameter (mm) | Motor | Power (kw) | Dimension (mm) | Weight (kg) |
JM1 | 10 | 15 | 80 | ∅9 | Y112M-6 | 2.2 | 740*690*490 | 270 |
JM1.6 | 16 | 16 | 115 | ∅12.5 | Y132M-6 | 5.5 | 940*900*570 | 500 |
JM2 | 20 | 16 | 100 | ∅13 | Y160M-6 | 7.5 | 940*900*570 | 550 |
JM3.2 | 32 | 9.5 | 150 | ∅15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
JM5 | 50 | 9.5 | 190 | ∅21.5 | YZR160L-6 | 11 | 1620*1260*948 | 1800 |
JM8 | 80 | 8 | 250 | ∅26 | YZR180L-5 | 15 | 2180*1460*850 | 2900 |
JM10 | 100 | 8 | 200 | ∅30 | YZR200L-6 | 22 | 2280*1500*950 | 3800 |
JM12.5 | 125 | 10 | 300 | ∅34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
JM16 | 160 | 10 | 500 | ∅37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
JM20 | 200 | 10 | 600 | ∅43 | YZR280M-8 | 45 | 3950*2560*1950 | 9900 |
JM25 | 250 | 9 | 700 | ∅48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
JM32 | 320 | 9 | 700 | ∅52 | YZR315S-8 | 75 | 4500*2850*2100 | 20000 |
JM50 | 500 | 8 | 800 | ∅60 | YZR315M-8 | 90 | 4930*3050*2250 | 38000 |
JM65 | 650 | 10 | 2400 | ∅64 | LA8315-8AB | 160 | 5900*4680*3200 | 54000 |

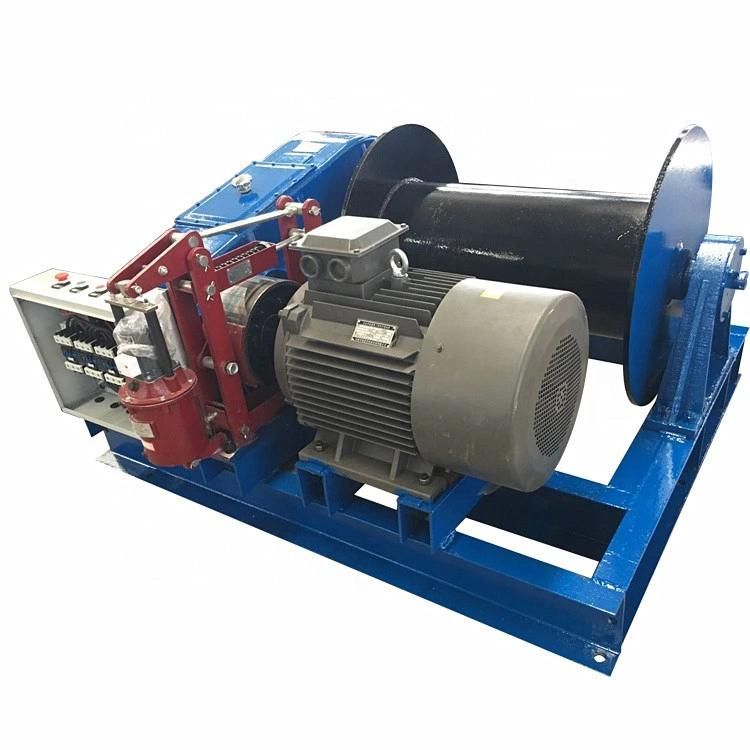

Finished Products
Company Information

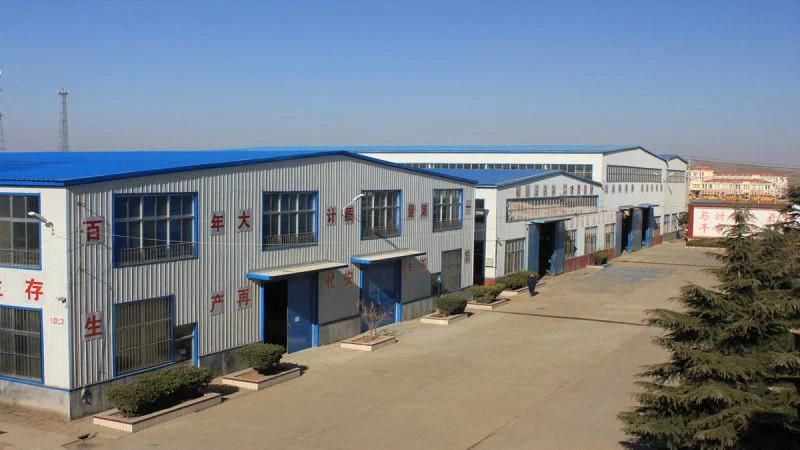

Qingdao Evertech Industry Co., Ltd is located in Qingdao City Shandong Province, the biggest crane manufacturing base in China. Specialized in crane design and manufacturing , we have passed ISO 9001: 2000,SGS,Gost.

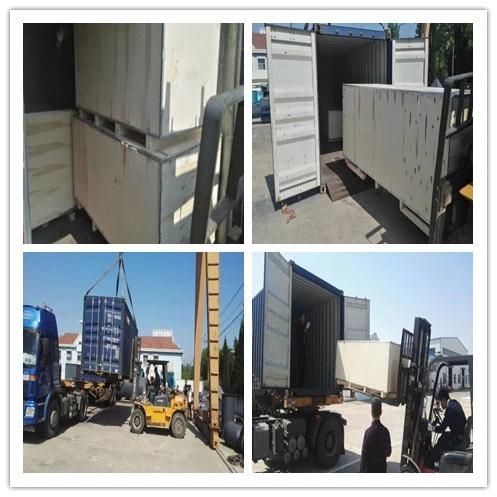

Packaging & ShippingOur Services
Pre-Sales Service
1. One to one service guarantees you the best purchasing experience.
2. Strong production capacity and professional workmen guarantee you the short delivery.
3. Strict delivery inspection guarantees you the high quality products.
4. The short delivery time.
