Jz-40/1300 Shaft Sinking Hoist Winch for Coal Mine Inclined Shaft

SHANDONG BETTER ONWARD MACHINERY CO., LTD.
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：3m,Min, 6m,Min
  • Carrying Capacity：Weight Level
  • Tonnage：400kn
  • Reel Number：1

Base Info

  • Model NO.：JZ-40,1300
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Standard：National Standards
  • Product Name：Shaft Sinking Winch
  • State：New
  • Fast Speed：6m,Min
  • Slow Speed：3m,Min
  • Rope Capacity：1300m
  • Delivery Time：Within 10-15days
  • Transport Package：Export Wooden Case
  • Specification：4596* 4218* 2975mm
  • Trademark：better onward
  • Origin：China
  • HS Code：8425311000
  • Production Capacity：100sets,Month

Description

MotorOverall size
 (mm)Weight(kN)(m)fast speedslow speed(mm)power (KW)voltage (V) (kg)JZ-5/40050400632311380/4402375×1970×13403140JZ-10/600
 100600633122380/4403037×2570×17706250JZ-10/800
 100800633122380/4403342×2906×18256500JZ-16/800

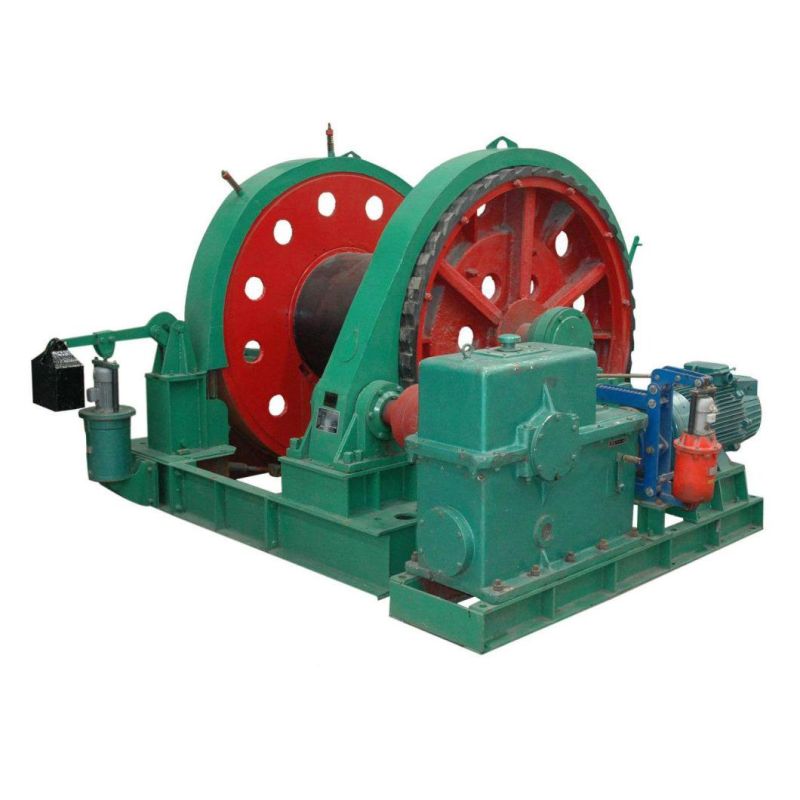

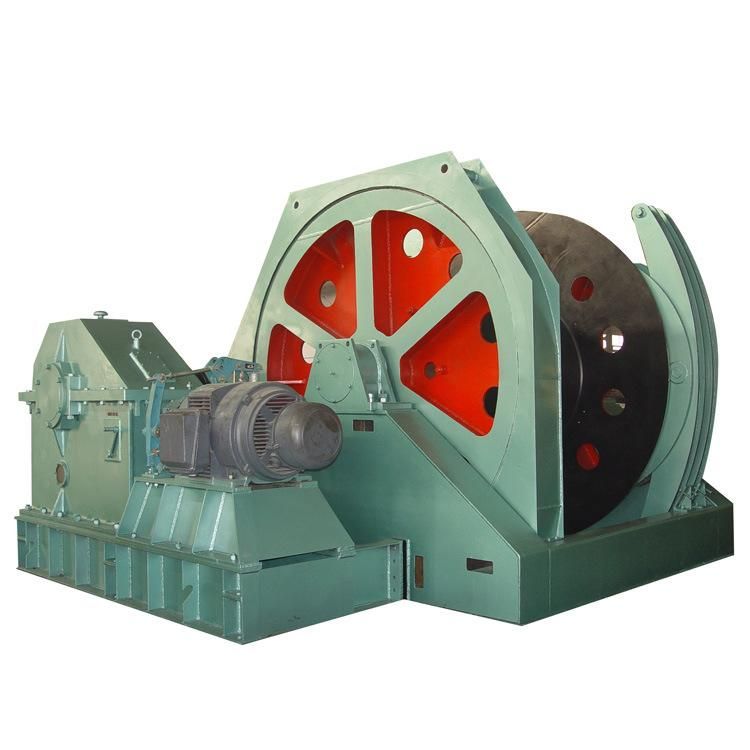

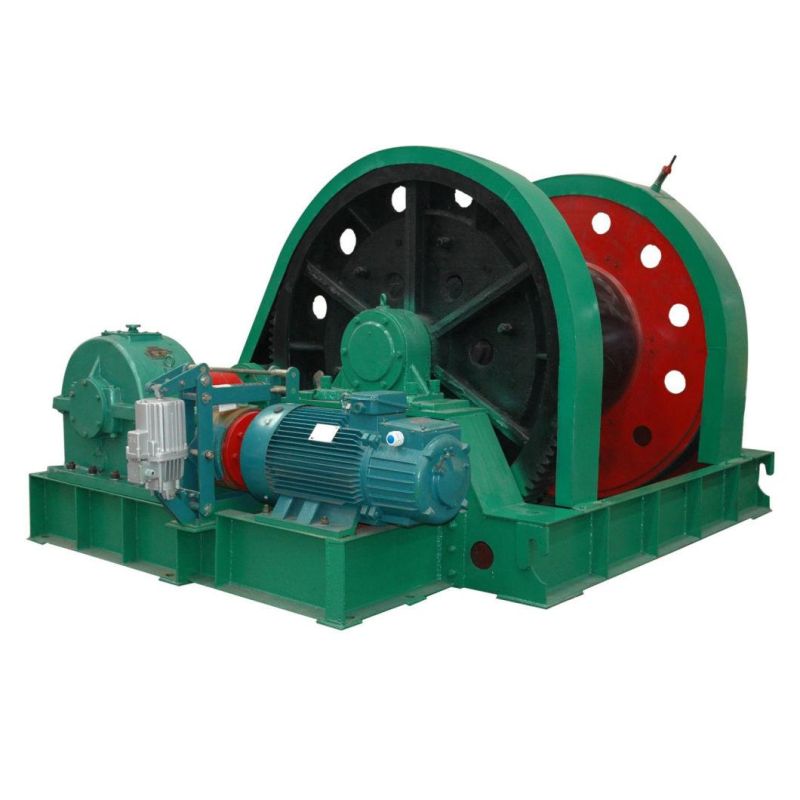

 160800634030380/4403358×3200×224011480JZ-16/10001601000634036380/4403508×3200×224011700JZ-25/13002501300635245380/4403827×2623×250014678JZ-40/13004001300636575380/4404596×4218×297525000Images of Shaft Sinking WinchJz-40/1300 Shaft Sinking Hoist Winch for Coal Mine Inclined Shaft
