• Model NO.：WL0.25-2.0
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Model：Wl0.25-2.0
• Loading Capacity：250kg
• Max. Lifting Height：2m
• Min. Lifting Height：80mm
• Self-Weight：450kg
• Platform Size：1330*900mm
• Warranty：12 Months
• Certificate：Ce
• Voltary：220V ,240V,380V,415V, Optional
• Control：Post Control, Platform Control, Remote Control
• Transport Package：Stretch Film & Plywood Case Outside of Wheelchair
• Specification：3100*1430*1400MM
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. WL0.25-2.0 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Model Wl0.25-2.0 Loading Capacity 250kg Max. Lifting Height 2m Min. Lifting Height 80mm Self-Weight 450kg Platform Size 1330*900mm Warranty 12 Months Certificate Ce Voltary 220V /240V/380V/415V, Optional Control Post Control, Platform Control, Remote Control Transport Package Stretch Film & Plywood Case Outside of Wheelchair Specification 3100*1430*1400MM Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 20 Units Per Month

Product Description

Product Detail

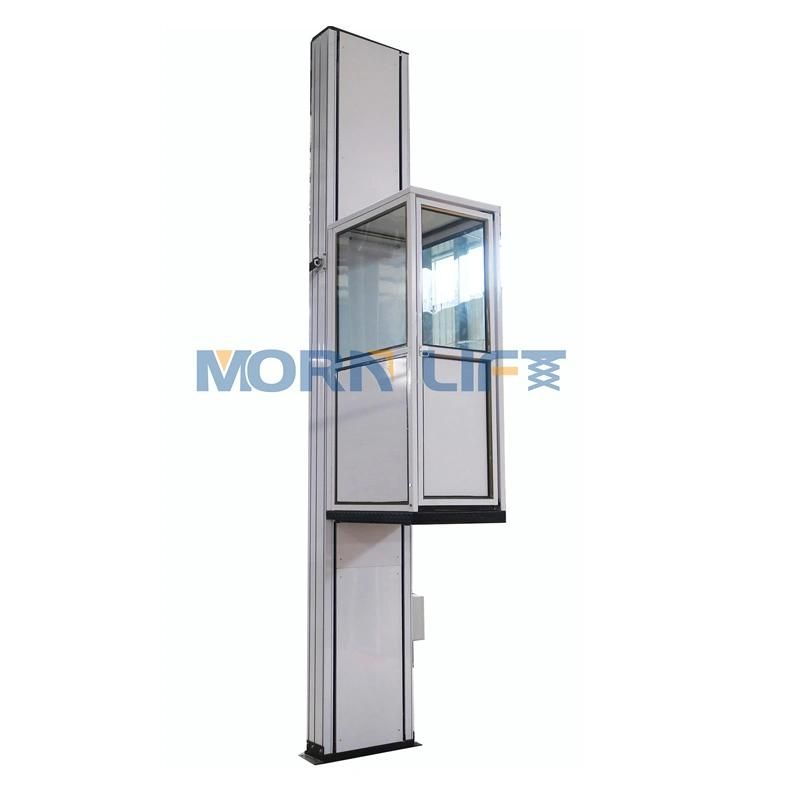

Vertical Home Elevator Disabled WheelChair Stair Lift

Disabled Home Hydraulic Wheelchair Lift is vertical lift platform for disabled people, old people and children, suitable for indoor or outdoor, provides safe and convenient access in the different level, includes access solutions for churches, schools or commercial sites etc.

Platform size	1330*900MM
Min Platform height	80mm
Speed	60mm/s
Lift height	1000 to 10000mm
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Operation Panel	Stainless steel(Up Down and Emergency Stop)
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Non-pit installation	directly fixed to the concrete floor
Control Device	Calling box and remote controller
Optional	Opening way
	Customized-LOGO
	the customers' local Voltage

Detail images


Packing

1. Film package to prevent humidity and rust.
2. Iron frame to keep lift stable in the container.
3. veneer case to prevent vertical platform lift from colliding. Convenient for forklift delivery.

Our Service

1. 12 months apart from man-made faults from receiving of lift
2. We will provide all-life long technical support,
3. Online service and 7*24hours phone support

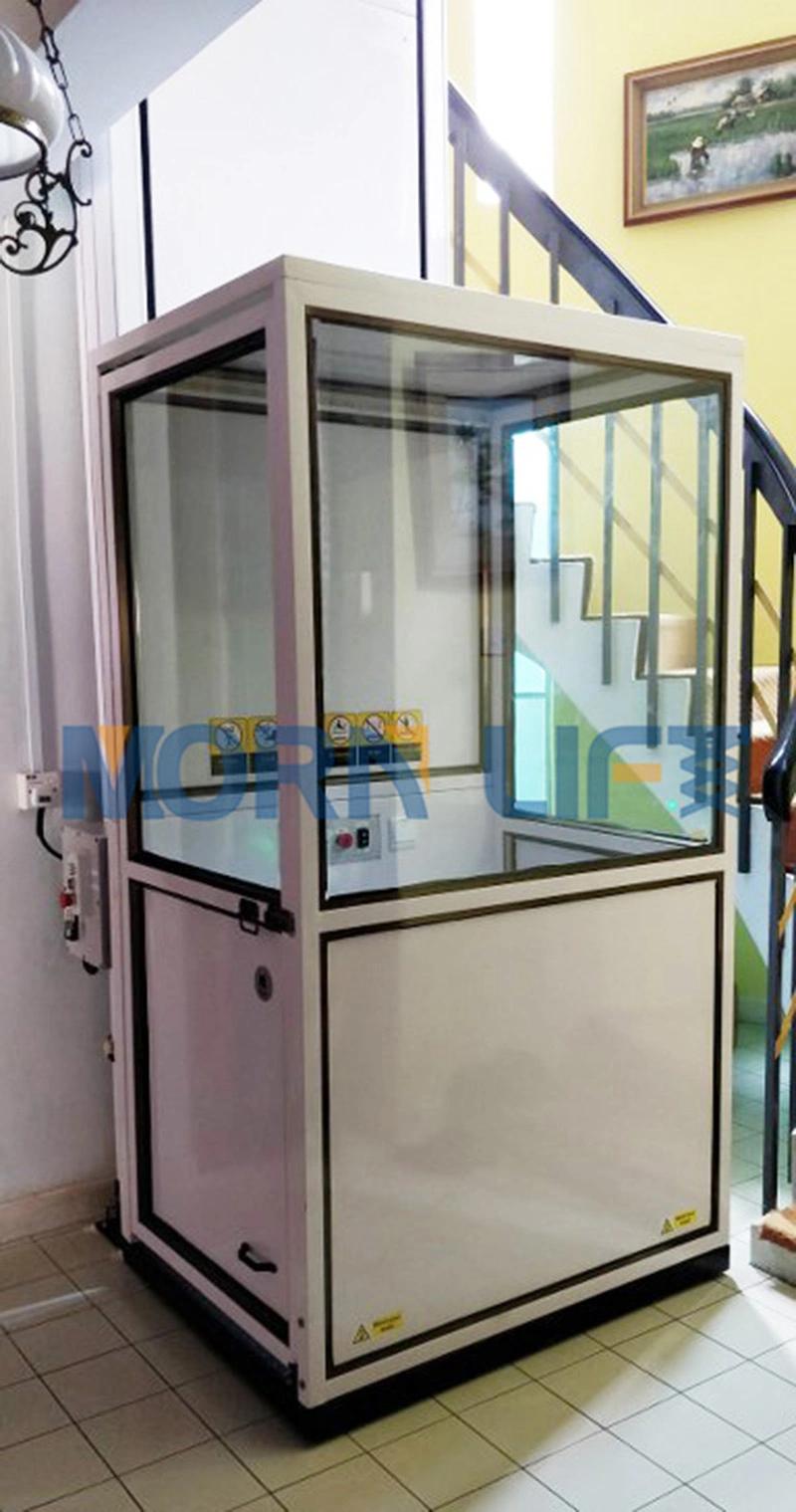

Application

This cabin lift is specifically engineered to transport users from one floor to a higher platform. It allows for easy, direct, and safe access for all users.
These cabin lifts are solid, versatile, and durable. They are widely used for indoor and outdoor spaces, and for home or commercial locations. People are granted safe access to wider spaces without the limitation of stairs.
