3.5 Safety Time Steel Pipe Permanent Magnet Lifting Hoist Magnetic Crane Lifter

Shanghai Yiying Crane Machinery Co., Ltd.

Material：Steel
Lifting Capacity：100kg-10t Magnet Lifting

Base Info

Model NO.：PML
Fixed Form：Bolt Type
Lifting Eye Type：Folded Eye
Rope Core Type：Hemp Core
Power Source：Magnet Lifting
Shape：Yellow
Certification：CE
Sling Color：Yellow
Produt：3.5 Safety Time Steel Pipe Permanent Magnet Liftin
Capacity：100kg-10t
Gw of Magnetic Lifter：39kg
Magnet Activation：Locking on,off Handle
Material of Magnetic Lifter：Steel
Usage：Lifting
Operation Temperature (°c)：Lower Than 80
Key Words：Magnetic Lifter
Color：as Your Order
Transport Package：Wood Box
Specification：lifting magnet
Trademark：HOGO
Origin：China
HS Code：8505901000
Production Capacity：1000piece,Month
Package size per unit product：30.00cm * 50.00cm * 45.00cm
Gross weight per unit product：56.000kg

Description

ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)LBHRYS-1001003009063681453YS-40040012001609518016011YS-600600180022011512523020YS-10001000300026014514528040YS-15001500375031014514528048YS-20002000500034016016541060YS-30003000750042018518551090YS-4000400010500480200200510120YS-5000500015000580300300650400

Advantage of 100kg 1ton all size hand lifting equipment permanent magnetic lifter

3.5 Safety Time Steel Pipe Permanent Magnet Lifting Hoist Magnetic Crane Lifter

1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using high-performance permanent magnet, ensure the power and high safety.

4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.

Usage and application of 100kg 1ton all size hand lifting equipment permanent magnetic lifter

:

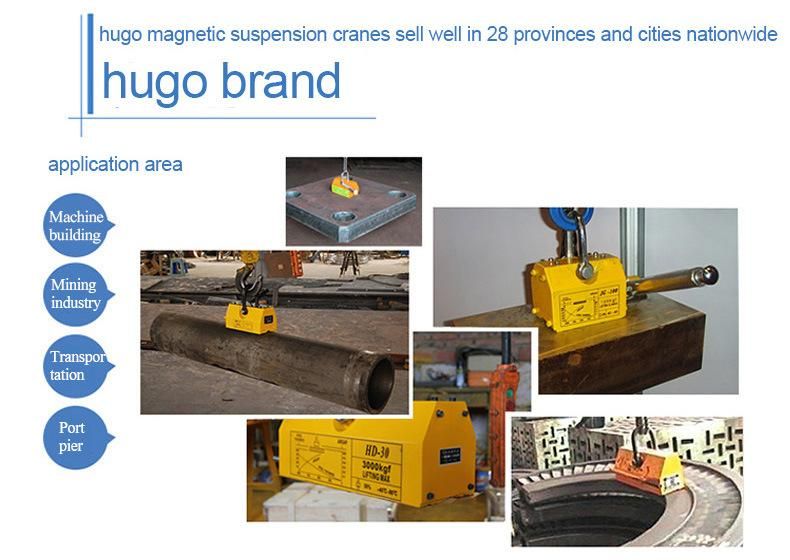

The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
