Chinese Manufacturer Mobile Hydraulic Semi Electric Aerial Scissor Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：500kg-2000kg
- Moves：Moving
Base Info
- Model NO.：SJY
- Driven Type：AC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Transport Package：Standard
- Specification：500-2000
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets
Description
Basic Info.
Model NO. SJY Driven Type AC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Standard Specification 500-2000 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500setsProduct Description
Chinese Manufacturer Mobile Hydraulic Semi Electric Aerial Scissor Lift
Semi Electric Scissor Lift is of of the most economic mobile scissor lift made from our manufacturer,the available loading capacity is 500kg,1000kg,1500kg,and 2000kg,and the maximum table height is range from 4m to 18m.
Semi electric scissor lift is moved by manual or tractor towed,and lifting by AC power or DC(battery) power.
1. Data-Sheet:
| Model No. | Table Size (mm) | Loading Capacity(kg) | Max. Table Height (m) | Min. Table Height (m) | Overall size (mm) |
| SJY0540 | 2100*830 | 500 | 4 | 1.1 | 2250*950*1100 |
| SJY0560 | 2100*830 | 500 | 6 | 1.2 | 2250*950*1200 |
| SJY0507 | 2100*830 | 500 | 7 | 1.28 | 2250*950*1280 |
| SJY0508 | 2100*930 | 500 | 8 | 1.38 | 2250*1060*1380 |
| SJY0509 | 2100*930 | 500 | 9 | 1.5 | 2250*1060*1500 |
| SJY0510 | 2100*1230 | 500 | 10 | 1.53 | 2250*1350*1530 |
| SJY0511 | 2100*1230 | 500 | 11 | 1.65 | 2250*1350*1650 |
| SJY0512 | 2550*1530 | 500 | 12 | 1.75 | 2796*1670*1750 |
| SJY0514 | 2812*1530 | 500 | 14 | 1.81 | 3067*1730*1810 |
| SJY0516 | 2812*1600 | 500 | 16 | 2.08 | 3067*1800*2080 |
| SJY0518 | 3070*1600 | 500 | 18 | 2.08 | 3321*1810*2080 |
| SJY1004 | 2100*1200 | 1000 | 4 | 1.18 | 2250*1350*1180 |
| SJY1006 | 2100*1200 | 1000 | 6 | 1.3 | 2200*1350*1300 |
| SJY1008 | 2100*1200 | 1000 | 8 | 1.42 | 2200*1350*1420 |
| SJY1010 | 2100*1200 | 1000 | 10 | 1.53 | 2200*1350*1530 |
| SJY1012 | 2550*1530 | 1000 | 12 | 1.75 | 2796*1670*1750 |
| SJY1014 | 2812*1530 | 1000 | 14 | 1.81 | 3067*1750*1810 |
| SJY1506 | 2100*1530 | 1500 | 6 | 1.53 | 2250*1750*1530 |
| SJY1508 | 2100*1530 | 1500 | 8 | 1.69 | 2250*1750*1690 |
| SJY1510 | 2100*1530 | 1500 | 10 | 1.85 | 2250*1750*1850 |
| SJY1512 | 2550*1530 | 1500 | 12 | 1.85 | 2250*1762*1850 |
| SJY1514 | 2816*1600 | 1500 | 14 | 1.96 | 3045*1852*1960 |
| SJY2006 | 2100*1530 | 2000 | 6 | 1.53 | 2250*1750*1530 |
| SJY2008 | 2100*1530 | 2000 | 8 | 1.69 | 2250*1750*1690 |
| SJY2010 | 2100*1530 | 2000 | 10 | 1.85 | 2250*1750*1850 |
| SJY2012 | 2550*1600 | 2000 | 12 | 1.954 | 2796*1852*1954 |
| SJY2014 | 2816*1600 | 2000 | 14 | 2.23 | 3067*1852*2230 |

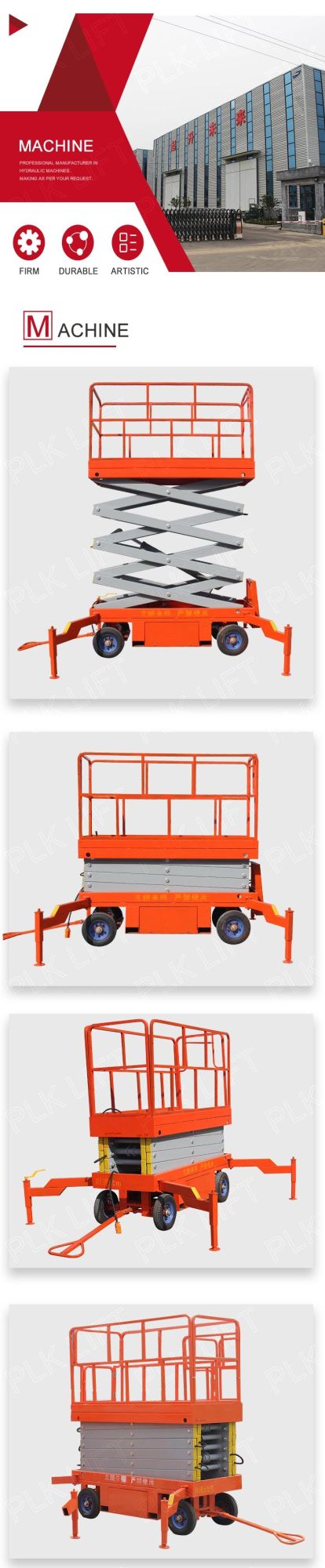

2. Product Photos:

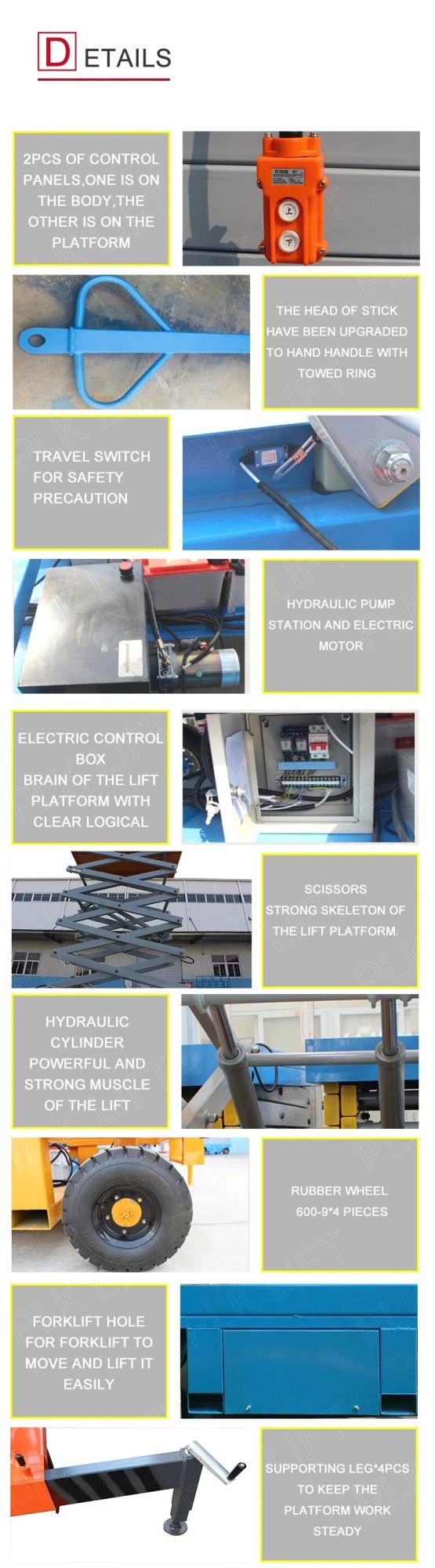

3. Details Review:

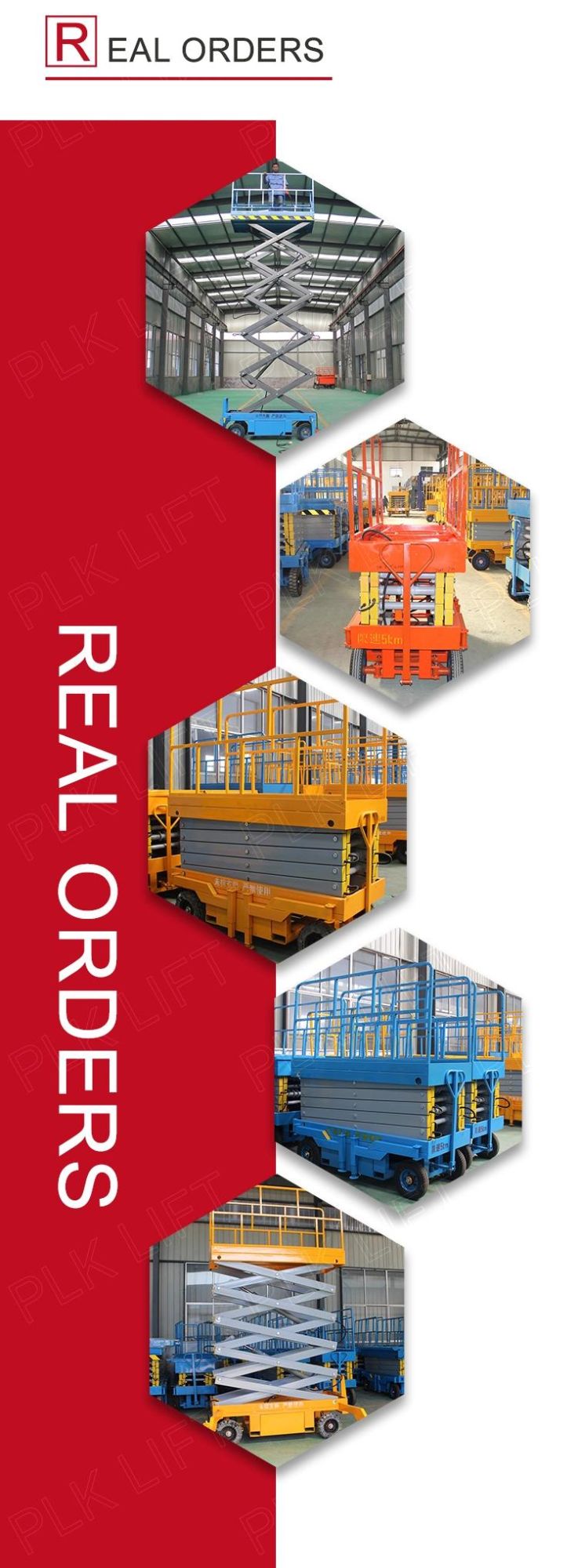

4. Real Orders Display:
5. Welcome to visit our factory and place the order with us.
