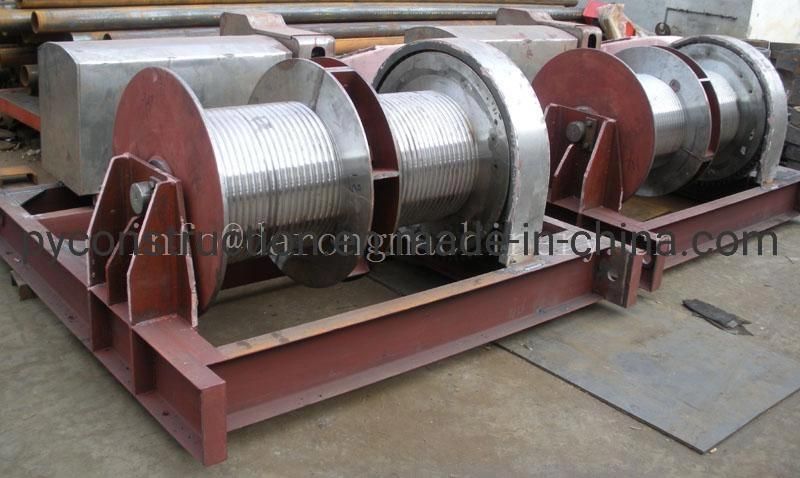

Cranes and Hoists Using Wire Rope Groove Drum as Lifting Machanism Parts

Pingyang Construction Hoisting Machinery Co.
  • Material：Steel Plate , Seamless Steel Tube
  • Diameter：as Customer Drawing
  • Length：as Customer Drawing
  • Rope Groove：as Diameter of Wire Rope
  • Transport Package：Woonden Case
  • Specification：1ton to 50ton

Base Info

  • Trademark：CH
  • Origin：Wenzhou, China
  • HS Code：8425319000
  • Production Capacity：100units,Month

Description

ModelJM2JM3JM5JM8JM10Line pull capacity (kg)200030005000800010000average speed (m/min)121010109Wire rope(mm):12.515.521.52630Reduction boxTypeJZQ350JZQ350JZQ400JZQ500JZQ650Transmission ratio23.3431.523.3431.540.17Drum (mm)Diameter/mm273325406500550Length4805206459001000Capacity(m)150180250300450motorTypeYZ160M2-6YZ160M2-6YZ160L-6YZR225M-8YZR250M1-8Power(kW)7.57.5112230Rotate speed(r/min)948948953720720Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-300Equipment Dimension (mm)1060x1500x7501600x1100x8201400x1910x9502050x1640x10002470x2280x1180Weight(kg)630680140030004000 Cranes and Hoists Using Wire Rope Groove Drum as Lifting Machanism Parts
