• Model NO.：DCQ10-0.6
• Certification：CE, ISO 9001
• Loading Capacity：10000kg
• Lip Length：400mm
• Work Range-up：300mm
• Work Range-Down：300mm
• Motor Power：0.75kw
• Transport Package：PVC Film Wrapped in Pallet
• Specification：2.5*2.0m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：2000 Units Per Year

Basic Info.

Model NO. DCQ10-0.6 Certification CE, ISO 9001 Loading Capacity 10000kg Lip Length 400mm Work Range-up 300mm Work Range-Down 300mm Motor Power 0.75kw Transport Package PVC Film Wrapped in Pallet Specification 2.5*2.0m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 2000 Units Per Year

Product Description

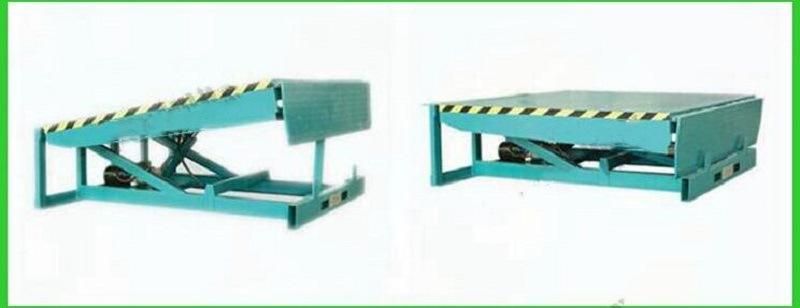

10 Tons Stationary Dock Leveler For Loading Cargo (DCQ10-0.6)

Parameter:

Loading Capacity	10000 Kg
Platform Size	2500*2000 mm
Lip Length	400 mm
Working Range	±300 mm
Motor Power	0.75 Kw
Power Voltage	AC 380V
Total Weight	980 Kg

Description:
Stationary Dock Leveler is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.

Main Features:
1. Reinforced gusseted lip
2. Heavy duty deck construction
3. Anti-skid high-strength chequered platform and lip.
4. Full width one -piece lip hinges pin and tube
5. Heavy duty high pressure cylinders
6. First class hydraulic power unit, good seal capacity and long life
7. Rubber bumpers
8. Full range toe guard

Standard Configurations:
. ltaiana Brand Hydraulic System
. Spporting Bar for Safety Maintenance
. Full Range Toe Guard
. Rubber Bumpers

 Optional Configurations:
 . A220/50Hz
 . The Hydraulic System with Stop Device

Applications:
1. Site: Work Shop, Dock, Logistic Park etc.
2. Dock Leveler Working Purpose: Loading Cargo, etc.

Competitive Advantage:
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience


Factory Equipment:


Client & Exhibition:

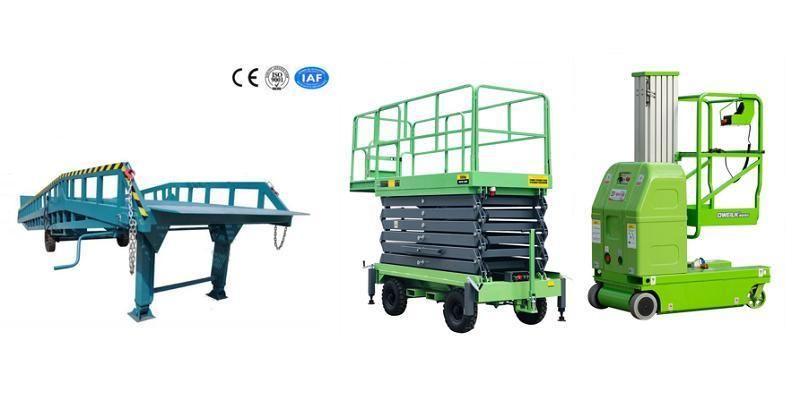

Other Related Products:


Communication with Customers:
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material.
The scissor lift is in scissor structure with steel material.
The aerial work platform is in mast structure with aluminum material.

A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.

A: How long is your quality guarantee period?
B: We have one year warranty.
