• Model NO.：JK,JM
• Tonnage：1~65 Ton
• Reel Number：1
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard

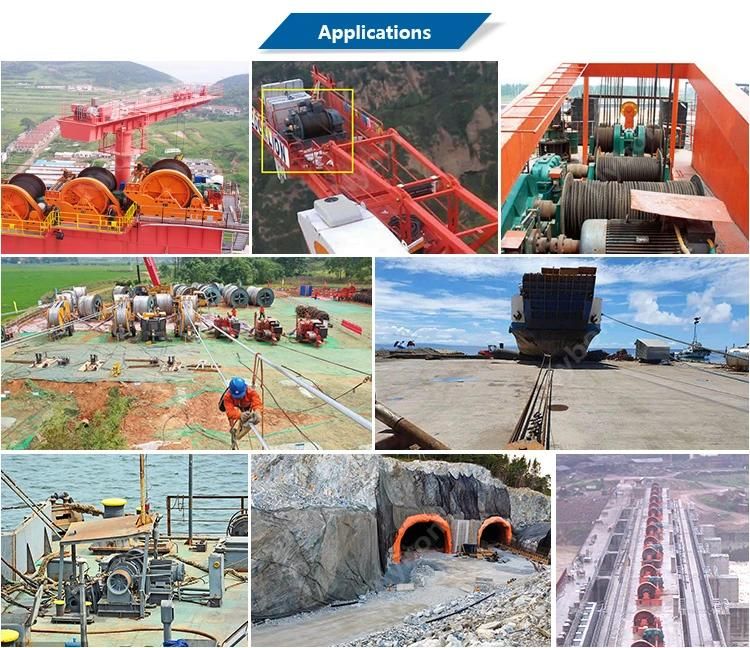

• Application：Cranes, Construction Site, Boat,Vessel, Shipyard, etc
• Motor Type：Yzr200L-6
• Voltage：380V 50Hz 3p or Customized
• Rope Capacity：100-3600m
• Rope Type：Steel Wire Rope
• Transport Package：Wooden Package & Container
• Specification：2090*1475*956mm
• Trademark：NYBON
• Origin：Henan Province, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JK/JM Tonnage 1~65 Ton Reel Number 1 Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Cranes, Construction Site, Boat/Vessel, Shipyard, etc Motor Type Yzr200L-6 Voltage 380V 50Hz 3p or Customized Rope Capacity 100-3600m Rope Type Steel Wire Rope Transport Package Wooden Package & Container Specification 2090*1475*956mm Trademark NYBON Origin Henan Province, China Production Capacity 100 Sets Per Month

Product Description

Industrial Small Tonnage Electric Winch 2 Ton From China Top Manufacturer
Electric winch ,which is drum winding wire rope, is one kinds of small lifting equipment. It can be vertical, horizontal and
inclined lifting or pulling heavy objects.Not only be used alone but be used for crane manufacturing as main hoisting
mechanism .Reasonable designed structure ,easy operation and excellent working performance .Electric winch be widely
used in construction site, mine, factory, port pier, crane manufacturing ,etc material lifting or traction

Model	Load (KN)	Speed(m/min)	Rope capacity (m)	Rope diameter (mm)	Motor(kw)	Size (mm)	Weight
JM 10	100	8	170	Ø30	22	2090*1475*956	3000kg
JM10B	100	9.5	250	Ø30	22	1705*1598*985	3500kg
JM12.5	125	8	300	Ø34	30	2880*2200*1550	5000kg
JM13.5	135	0-5	290	Ø28	22	2990*2663*1650	6500kg
JM16	160	10	500	Ø37	37	3750*2400*1850	8800kg
JM20	200	10	600	Ø43	45	3950*2560*1950	9900kg
JM25	250	9	700	Ø48	55	4350*2800*2030	13500kg
JM32	320	9	700	Ø56	75	4500*2850*2100	14800kg
JM50	500	9	800	Ø65	90	4930*3050*2250	19500kg
JM65	650	10.5	3600	Ø64	160	5900*4680*3200	46000kg

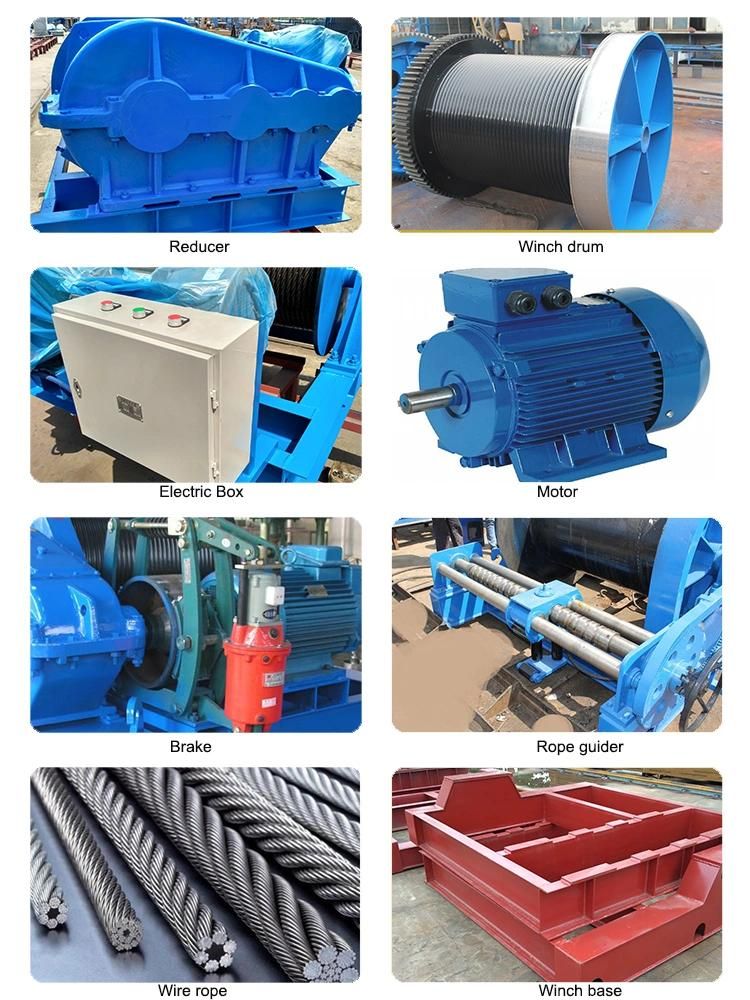

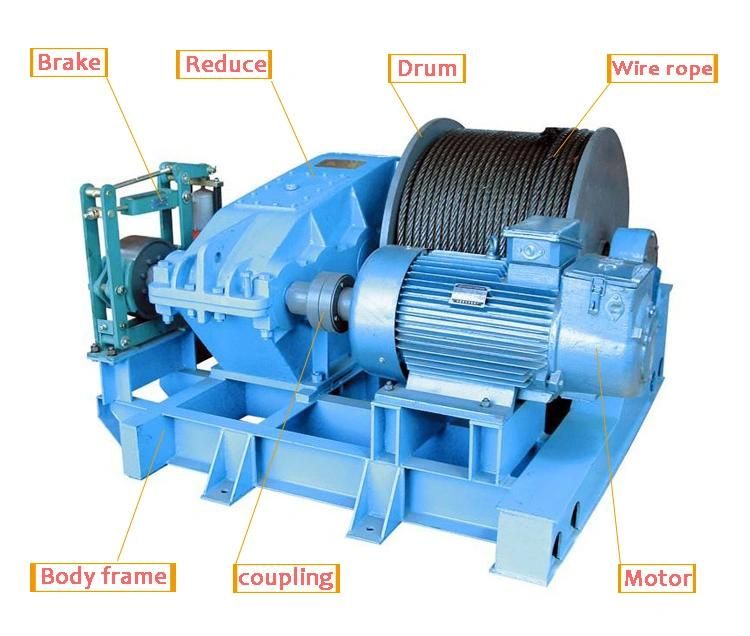

Conponents of JM Low Speed Electric Winch

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there
is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
