• Model NO.：SCL
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001
• Voltage：220V 380V
• Color：Customized
• Load Capacity：2ton 3ton 4ton 5ton...
• Transport Package：High Quality Box
• Specification：1300*820*2000mm 320kg
• Trademark：PLK LIFT
• Origin：China(Mainland)
• HS Code：8428909090
• Production Capacity：1000 Set,Month

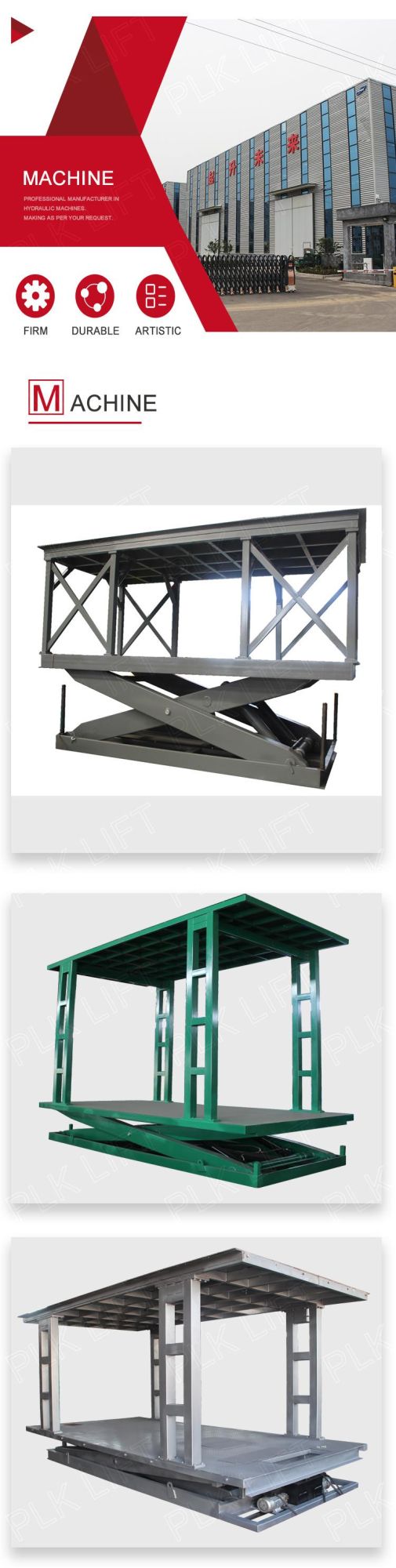

Model Type

SCL2-2.2 (Load one Car one layer)

SCL3-4.0 (Load Two Car Two layer)

Travel Height

2200mm

4000mm

Load Capacity

2000kg

3000kg

Platform Size

5500*2500mm

5500*2500mm

Self Height

570mm

980mm

Pit deep

2770mm

4960mm

Voltage

customized as customer requirements

customized as customer requirements

Pump station(K/W)

5.5kw (LISHENG)

7.5kw(LISHENG)

Seal

From Japan

From Japan

Scissors

Rectangle tube250*100*68# Channel steel + 4MM  steel

Under platform and post Rectangle tube200*150*5Middle platform and post Rectangle tube120*60*4+4mm checkered steel Central table top and upper table top column 80*80*4 rectangular tube.Upper table frame 80*40*3 rectangular tube +2.5mm tread plate.

Cylinder

Φ125*2

Φ160*2

Pump Station

4kw

7.5KW

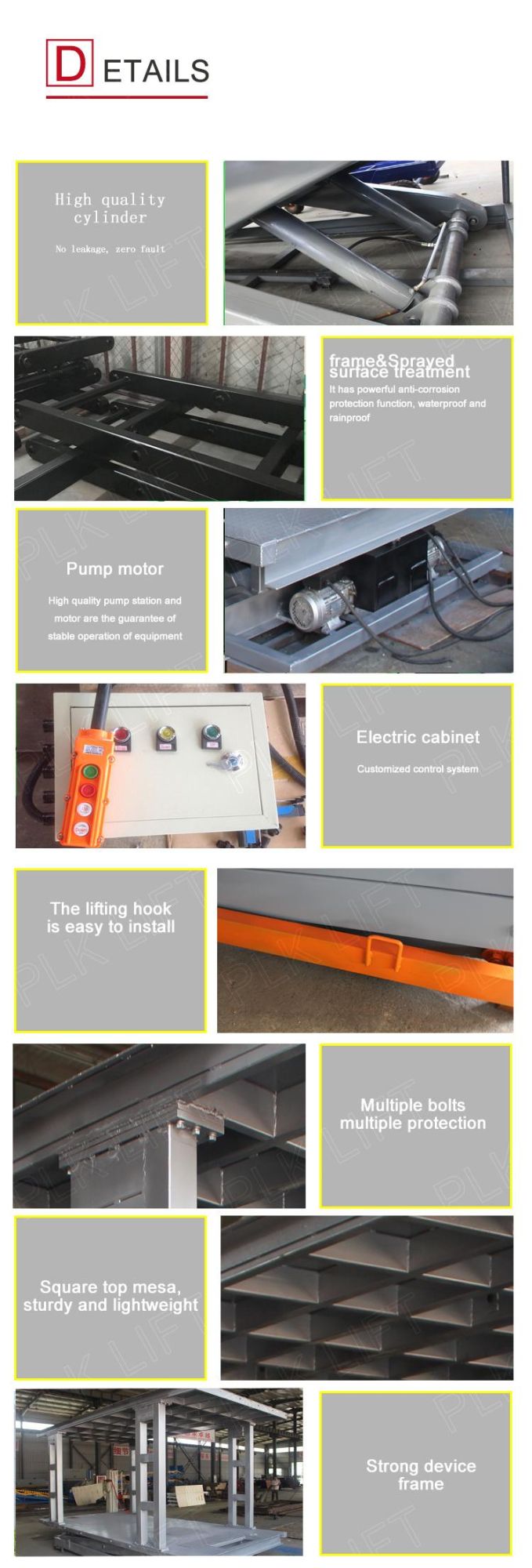

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
