• Model NO.：ZT34J
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：36m
• Platform Height：34m
• Horizontal Outreach：23.50m
• Platform Capacity：300kg,454kg
• Drive Speed (Working)：5.5km,H
• Turning Radius (Inside)：2.80m
• Turning Radius (Outside)：5.70m
• Engine：Kohler Kdi2504TCR
• Fuel Tank Capacity：250L

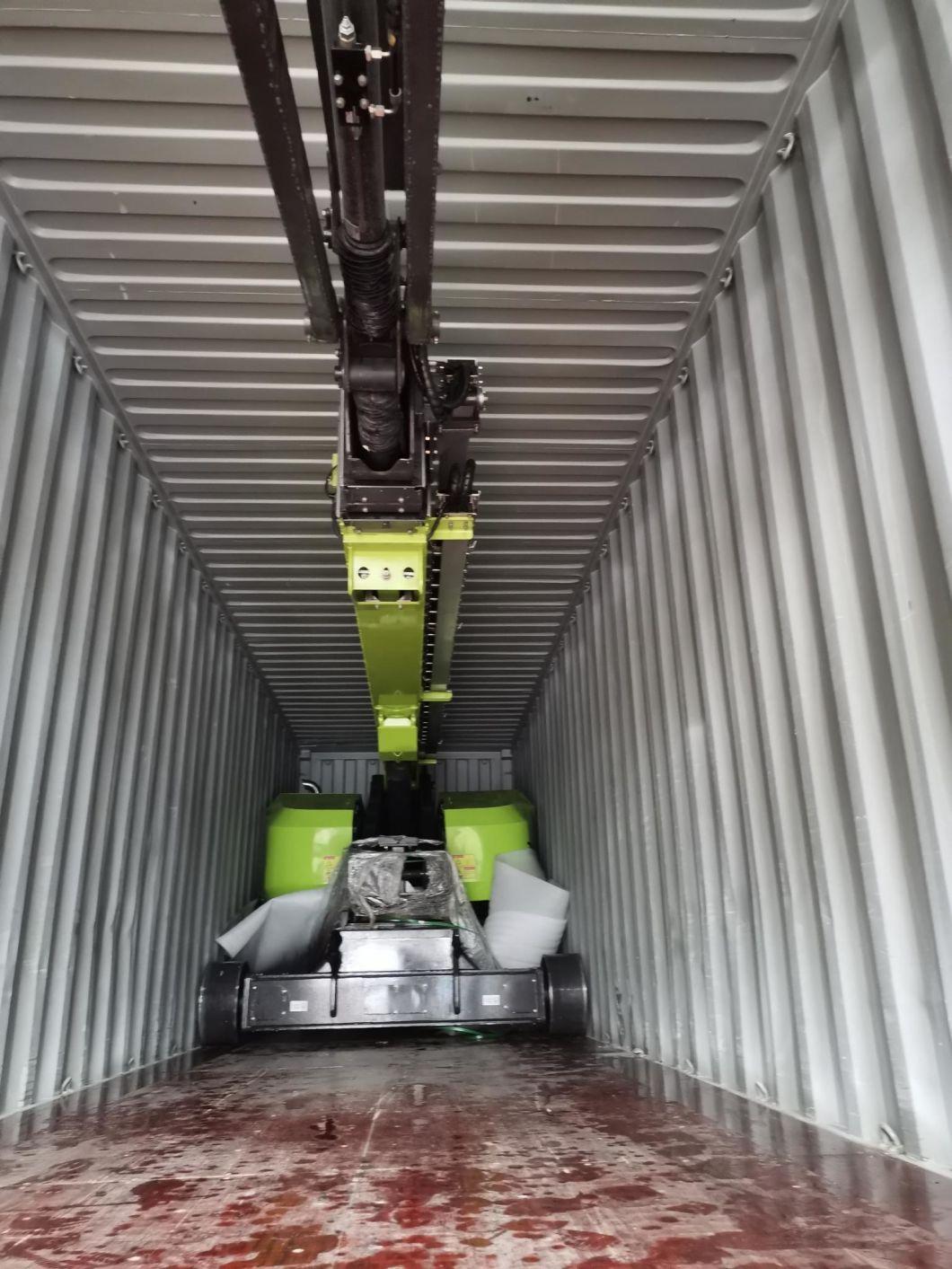

• Transport Package：Roro,Nude,Bulk,Container
• Trademark：Zoomlion
• Origin：China
• HS Code：842890909
• Production Capacity：1000 Set Per Month

Main Specs of Telescopic Boom LiftsComply with CE/ANSI/GB StandardModelZT34JZT26JZT20JSizeWork Height36m28.20m22.75mPlatform Height34m26.20m20.75mHorizontal Outreach23.50m22.71m16.80mA - Stowed Length13.50m12.5m10.36mB - Stowed Width2.49m2.49m2.49mC - Stowed Height3m2.80m2.78mD - Platform Length2.44m2.44m2.44mE - Platform Width0.91m0.91m0.91mF - Wheelbase3.80m3.05m2.52mWheelbase2.05/3.41m2.11m2.13mG - Ground Clearance0.41m0.40m0.42mPerformancePlatform Capacity (Unrestricted/Restricted)300/454kg300kg/454kg300kg/454kgDrive Speed (Working)5.5km/h5.5km/h6.0km/hGradeability45%(24°)45%   (24°)45%   (24°)Turning Radius (Inside)2.80m3.66m2.4mTurning Radius (Outside)5.70m6.86m5.4mTurntable Swing360°continuous360°continuous360°continuousPlatform Rotation±90°±90°±90°Tail Swing1.88m1.60m1.45mJib (Range of Articulation)130°(-55°~75°)130°(-55°~75°)135°(-60°~75°)Max. Working Slope3°3°3°Max. Wind Speed12.5m/s12.5m/s12.5m/sPowerEngineKohler   KDI2504TCRDeutz TD2.9 L4/Cummins QSF2.8Duetz D2.9L4Fuel Tank Capacity200L150L130LControl Voltage12V   DC12V   DC12V   DCHydraulic Tank Capacity250L150L150LDrive Mode4WD4WD4WDSteering ModeFront-wheel/Rear-wheel/CrabFront-wheelFront-wheelTireTypeIN445/50D710
Foam-filled Tires15-625 Foam-filled Tires355/55D-625   Foam-filled TiresWeightGross19200kg18900kg12200kgHighlightsBetter work envelop performance, 10% larger than competitorZoomlion AWM Remote Monitoring and Rental Management SystemSmart telematic control interface with self-diagnostic monitoring capabilityPlatform dual capacity design, up to 300/454 kgSmooth & stable boom extension technique controls the minimum stable extending speed at 0.015 m/sFeaturesStandard Features All motion alarmHornSelf-closing entry gateProportional controlGPS positioning and tracking systemFlashing amber beaconAuto-leveling systemRemote monitoring and rental management systemOver tilt protection systemEmergency stop buttonOn-board diagnostic systemEmergency descent system4.3' LED displayOscillating axleSwing-out engine trayLoad sensing systemAccessories & OptionsPlatform work lightsAnti-collision deviceAC power to platform

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.

       Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets.

      Oriemac brings you a wide range of construction machionery series as follows:

-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck
