• Model NO.：HKG12LD
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Rated Load：320kg
• Lifting：Hydraulic
• Machine Color：Customer Designed
• Mini Turning Radius：150 mm
• Max Working Height：14m
• Max Platform Height：11.75m
• Platform Size：2270*1120mm
• Machine Height (Guard Bar Unfold)：2670mm

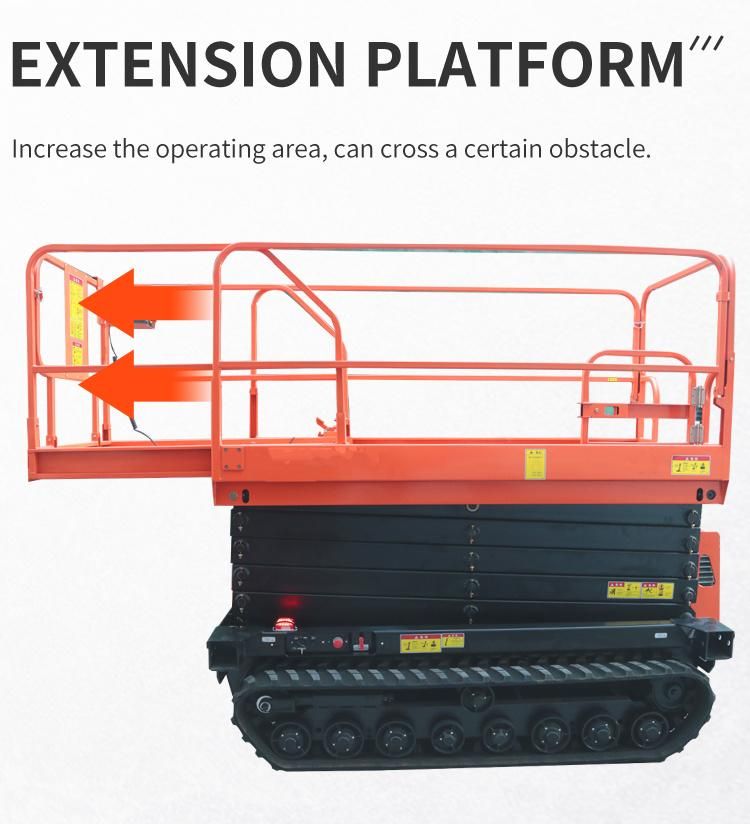

• Platform Extension Size：900mm
• Lifting Motor：48V,4 Kw
• Walking Motor：2*48V,4kw
• Charger：48V,25A
• Lifting/ Decline Speed：85,75s
• Machine Walking Speed：2.4km,H
• Weight：3480kg
• Transport Package：by Sea,by Air
• Specification：Work height 4-14m
• Trademark：Haulke
• Origin：China
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HKG12LD Driven Type AC Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Rated Load 320kg Lifting Hydraulic Machine Color Customer Designed Mini Turning Radius 150 mm Max Working Height 14m Max Platform Height 11.75m Platform Size 2270*1120mm Machine Height (Guard Bar Unfold) 2670mm Platform Extension Size 900mm Lifting Motor 48V/4 Kw Walking Motor 2*48V/4kw Charger 48V/25A Lifting/ Decline Speed 85/75s Machine Walking Speed 2.4km/H Weight 3480kg Transport Package by Sea/by Air Specification Work height 4-14m Trademark Haulke Origin China Production Capacity 1000000units/Year

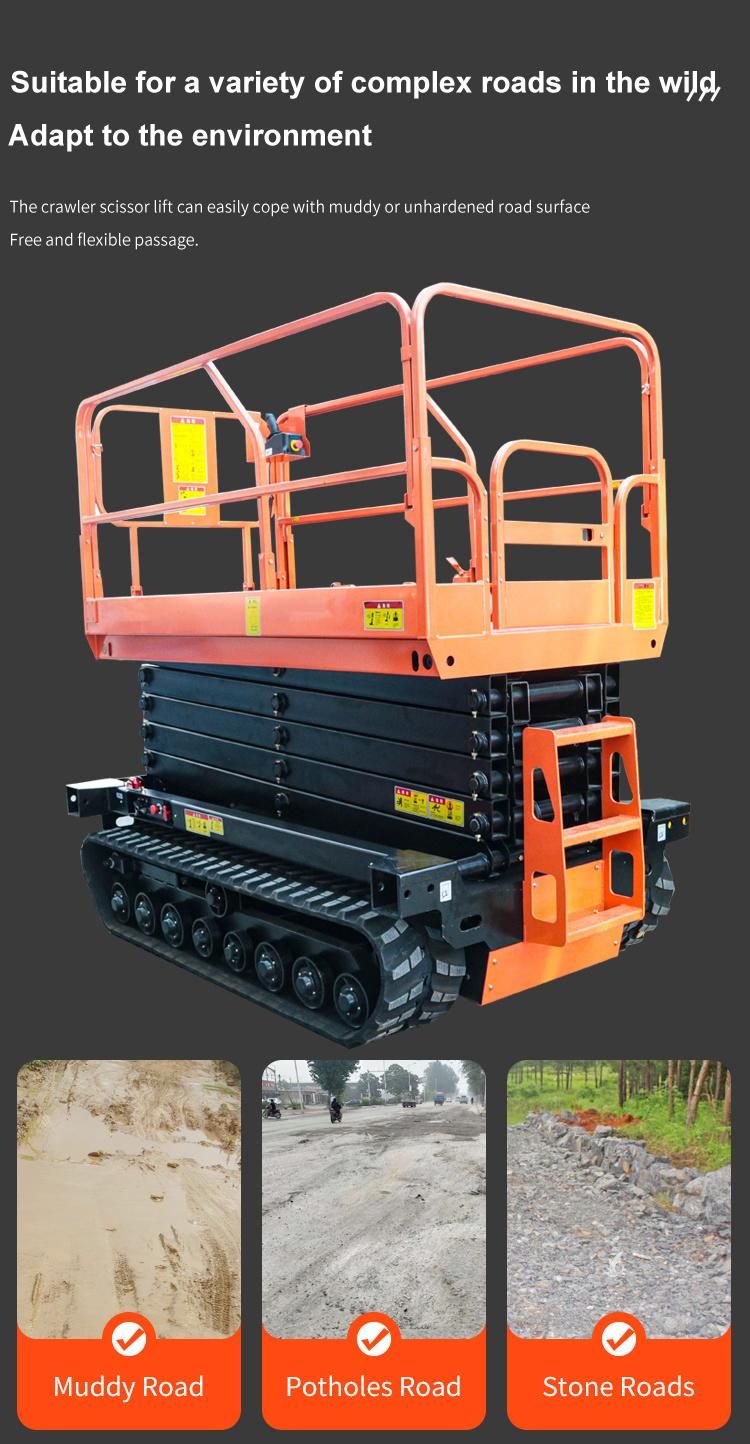

Product Description

Product Description:

Specifictions:


		HKG4.5L	HKG6L	HKG6LD	HKG8L	HKG8LD	HKG10L	HKG10LD	HKG12L	HKG12LD
Loading capacity	kg	200	450	450	450	450	320	320	320	320
Extension platform loading capcity	kg	100	113	113	113	113	113	113	113	113
Max working height	m	6.5	8	8	10	10	12	12	14	14
Max platform height	m	4.5	6	6	8	8	9.75	9.75	11.75	11.75
Length (with ladders)	mm	1270	2470	2782	2470	2782	2470	2782	2470	2782
Length (without ladders)	mm	1270	2280	2782	2280	2782	2280	2782	2280	2782
Machine width	mm	790	1390	1581	1390	1581	1390	1581	1390	1581
Machine height (guard bar unfold)	mm	1820	2280	2280	2400	2400	2530	2530	2670	2670
Machine height (guard bar fold)	mm		1745	1745	1865	1865	1995	1995	2130	2130
Platform size	mm	1230*655	2270*1120	2270*1120	2270*1120	2270*1120	2270*1120	2270*1120	2270*1120	2270*1120
Platform extension size	mm	550	900	900	900	900	900	900	900	900
Minimum turning radius	mm	50	150	150	150	150	150	150	150	150
Minimum grade clearanceMinimum grade clearance	m	0	0	0	0	0	0	0	0	0
Lifting motor	v/kw	24/1.2	48/4	48/4	48/4	48/4	48/4	48/4	48/4	48/4
Walking motor	v/kw	2*24/1.5	2*48/4	2*48/4	2*48v/4	2*48v/4	2*48v/4	2*48v/4	2*48v/4	2*48v/4
Machine walking speed (guard fold)	km/h	1.7	2.4	2.4	2.4	2.4	2.4	2.4	2.4	2.4
Lifting/ Decline speed	sec	24/20	38/30	38/30	45/36	45/36	70/62	70/62	85/75	85/75
Battery	v/A	24/200	8*6/200	8*6/200	8*6/225	8*6/225	8*6/225	8*6/225	8*6/225	8*6/225
Charger	v/A	24/15	48/25	48/25	48/25	48/25	48/25	48/25	48/25	48/25
Weight	kg	790	2400	2800	2550	2950	2840	3240	3000	3480

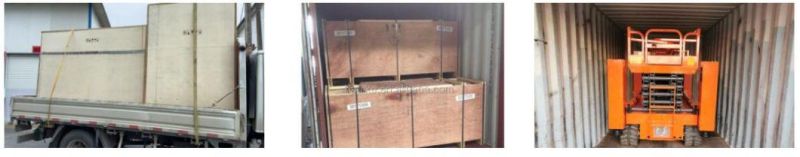

Packaging & Shipping:

After Sales Service:

24-hours online consult service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly.

Market information also will be provided. Since we are an experienced supplier of lift table. For seller, the market information would be very pleased to offer as long as you contact us and ask for it.

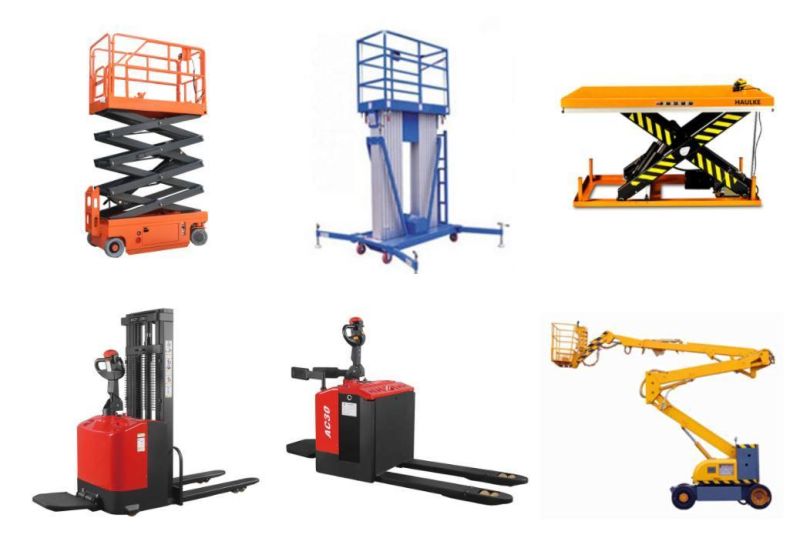

Related machines:

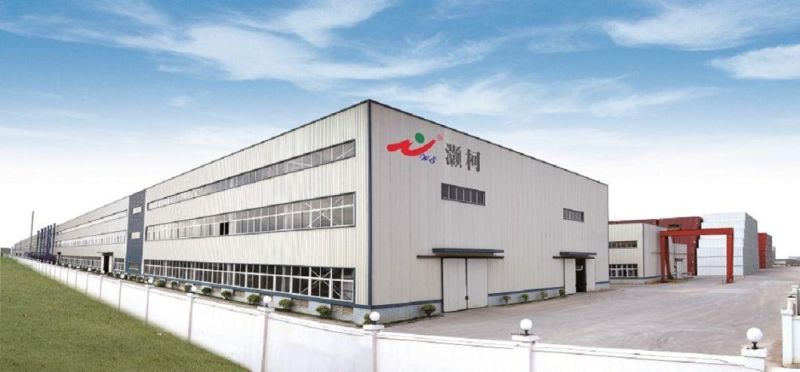

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



Certificate:

FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
