• Model NO.：TAM0.1-6
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Move：Trail by Manual
• Material：High-Strength Aluminum Alloy
• Wheels：4PCS Solid Rubber Wheel
• Warranty：12 Months
• Transport Package：Plywood Case & Stretch Film
• Specification：1280*800*1980mm
• Trademark：MORN
• Origin：Shandong
• HS Code：842890
• Production Capacity：50unit,Month

Basic Info.

Model NO. TAM0.1-6 Feature Explosion-Proof Certification CE, ISO 9001 Move Trail by Manual Material High-Strength Aluminum Alloy Wheels 4PCS Solid Rubber Wheel Warranty 12 Months Transport Package Plywood Case & Stretch Film Specification 1280*800*1980mm Trademark MORN Origin Shandong HS Code 842890 Production Capacity 50unit/Month

Product Description

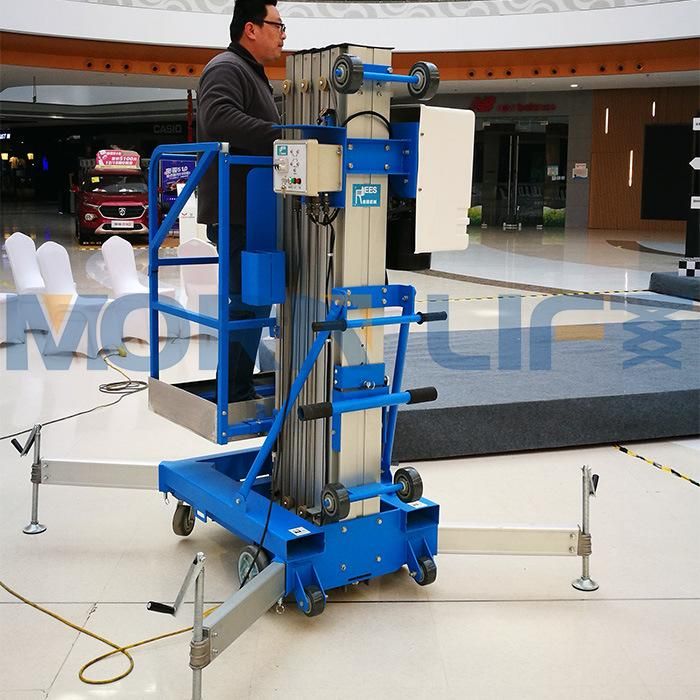

Aluminum alloy lift

Single mast aluminum alloy lift platform uses high strength aluminum section bar to produced. Featured by it's beautiful appearance, small volume, light self-weight, good stability, and flexible operation. The single mast aluminum alloy lift platform has one, two, three or four masts according to the different heights.


Details

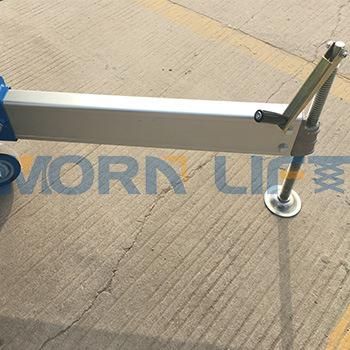

Outriggers.

Prevent the lift moving ,guarantee workers safety during working.

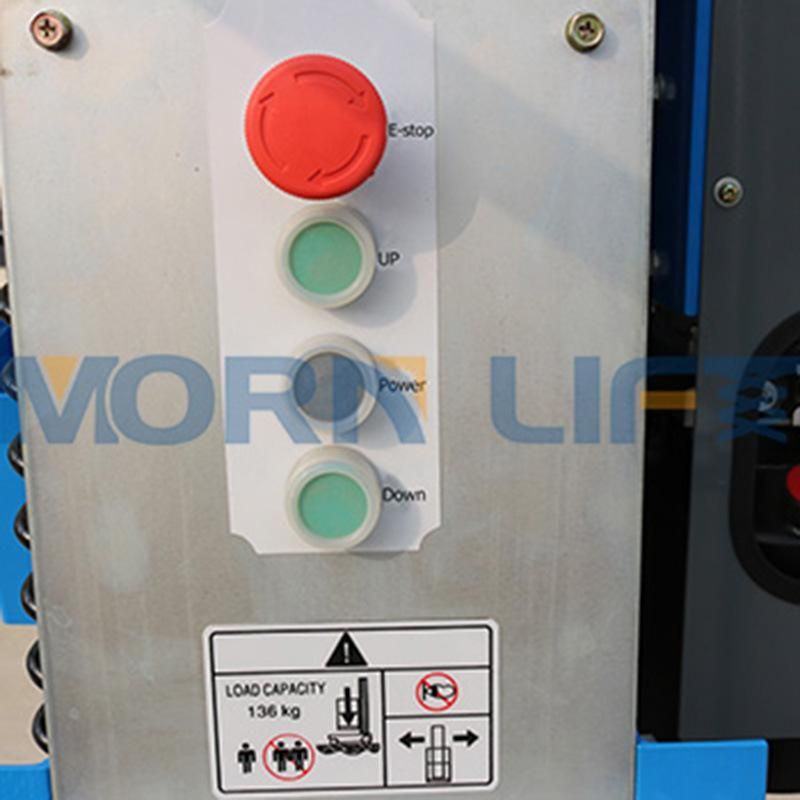

control system.

Both hold down two buttons at the same time to work.
Prevent the danger from wrong operation.

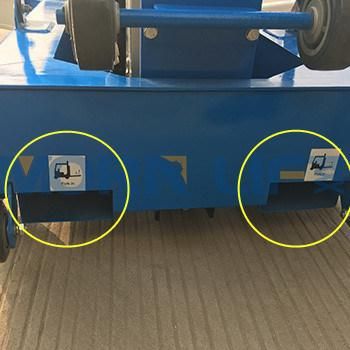

fork in holes.

It is easy to move with forklift and is more stable in the process of moving

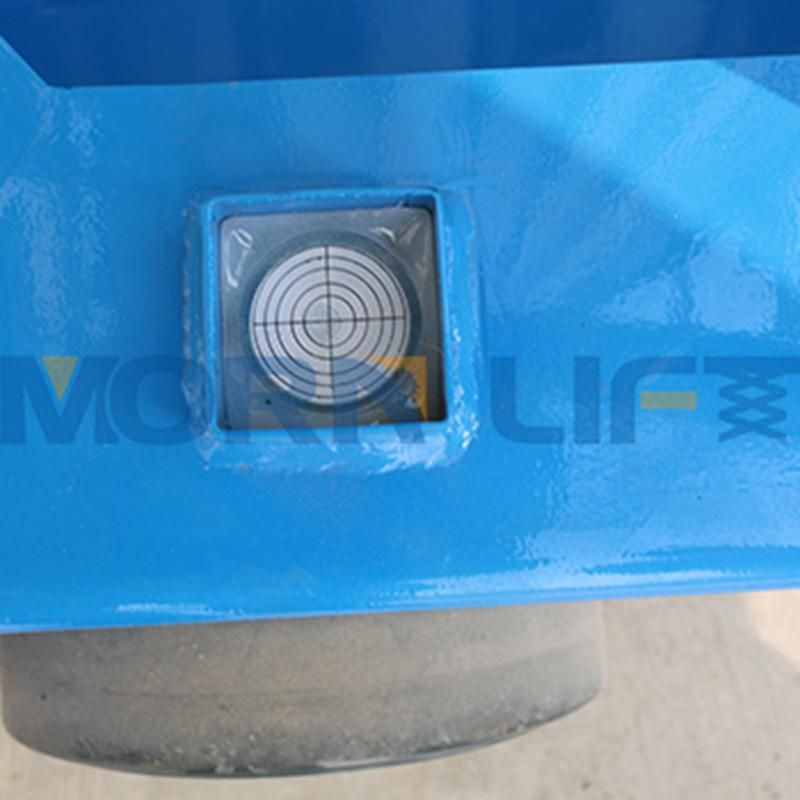

The balance sensor

The balance sensor determines whether the lift is stable, in case the lift tilts during working,  guarantee the safety of workers.



small in size and light weight.

It could be moved easily.

Convenient for the workers move it to another place.

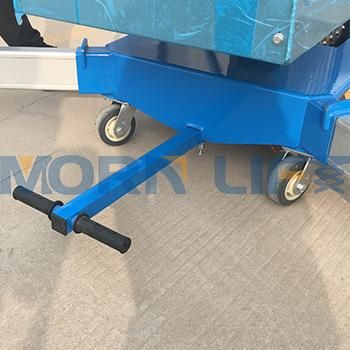

truck loading holder.

It is convenient for the workers to move the lift from the ground to the car



emergency drop valve.

The platform can be lowered by manual down button in case of power failure


Emergency stop.

The lift can be stopped immediately in case of any emergency when up or down.



Application
Widely used in factories, hotels, restaurants, cinema, station, exhibition hall and other places, is to maintain machine, paint decoration, exchanging the lamps and lanterns, electrical appliances, such as cleaning and maintenance purposes best partners.




Medel


Medel	Loading Capacity	Lifting Height	Max Work Height	Platform Size	Dimension
TAM0.1-4	100kg	4m	6m	600*600mm	1280*800*1980mm
TAM0.1-6	100kg	6m	8m	600*600mm	1280*800*1980mm
TAM0.1-8	100kg	8m	10m	600*600mm	1280*800*1980mm
TAM0.1-10	100kg	10m	12m	600*600mm	1360*850*2100mm
TAM0.2-6	200kg	6m	8m	1100*600mm	1300*950*2000mm
TAM0.2-8	200kg	8m	10m	1150*600mm	1360*950*2000mm
TAM0.2-10	200kg	10m	12m	1350*600mm	1560*970*2000mm
TAM0.2-12	200kg	12m	14m	1450*600mm	1660*970*2000mm
TAM0.2-14	200kg	14m	16m	1450*600mm	1660*1100*2350mm
