Marine Electric or Hydraulic Single Drum or Multi Drum Mooring Winches
Henan Nucrane Machinery Co.,Ltd.- Type：Hydraulic Winch
- Driven Type：Hydraulic
- Speed：10m,Min
- Carrying Capacity：60ton
- Tonnage：60ton
- Reel Number：2
Base Info
- Model NO.：HYNE-55
- Running Mode：Moving
- Feature：Boat Use Hydraulic Winch
- Certification：GS, CE, ISO 9001, SGS,BV,Rmrs
- Standard：National Standards
- Winch Drive：Electric , Hydraulic
- Deck Winch Chain Size：16 mm to 127 mm
- Ship Winch Clutch：Manually Operated Dog Clutch
- Boat Winch Brake：Manually and Hydraulic Operated Band Brake
- Hydraulic Winch Control：Local Control
- Winch Paint：as Per Your Specifications
- Electric Windlass Chain Speed：Complying with ISO Requirements
- Hydraulic Winch Configuration：Single in Vertical , Horizontal Arrangement , Doub
- Transport Package：20 or 40 Feet Container
- Specification：6127*5630*3560mm
- Trademark：Nucrane
- Origin：Taixing City
- Production Capacity：1500sets,Years
Description
Warping load(kn)AM2 AM3 AM2 AM3 AM2 AM3 17.5 17.5 13 14.6 19.5 21.9 80 115 9 8 19 19 15.3 17.2 23.0 25.8 95 135 9 10 20 20 17.9 20.0 26.9 30.0 110 157 9 10 22 22 20.6 23.0 30.9 34.5 126 180 9 15 24 24 24.5 24.4 36.8 41.1 149 214 9 20 26 26 28.7 32.1 43.1 48.2 175 150 9 20 28 28 33.3 37.2 50.0 55.8 202 289 9 20 30 30 38.3 42.8 57.5 64.2 231 330 9 30 32 32 43.5 48.6 65.3 72.9 261 374 9 30 34 34 49.1 54.9 73.7 82.4 294 421 9 30 36 36 55.1 61.6 82.7 92.4 329 470 9 30 38 38 61.4 68.9 92.1 103.4 365 522 9 40 40 40 68 76.0 102.0 114.0 402 576 9 40
Generally, the installation of the windlass should ensure that the three points of the anchor chain leading out (the anchor chain barrel, the chain controller and the sprocket) are in one line
Work load: refers to the tension measured at the outlet of the anchor chain wheel.
Overload tension: the short time overload capacity required by the windlass.
Average speed: the speed at which two anchor chains are recovered when three are in the water and are freely suspended.
Support load: refers to the maximum static load on the anchor chain that the anchor chain wheel brake should be able to bear.

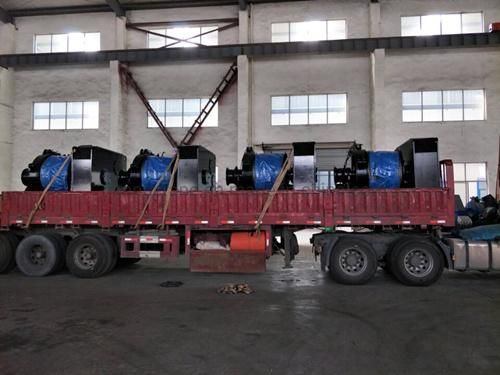

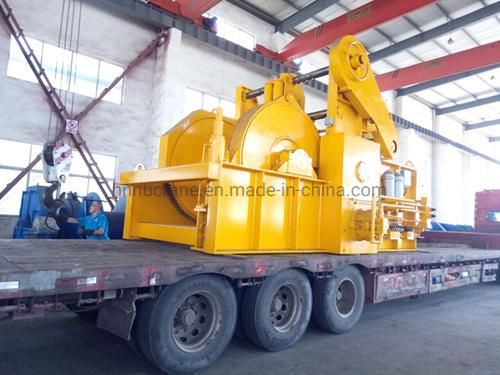

3.anchor windlass delivery pictures
4.In order to send you a most suitble model we need confirm the following information.
1), what is the winch pulling capacity?
2),what is the winch wire rope length?
3),what is the wire rope diameters?
4)You need the winch with single or double drum?and per drum pulling capacity?
5),what is the winch working environment?
6),Are you need power pack?
FAQ
1. What kind of after-sale services will you supply?
One year warranty.
Providing free quick-wear part.
Low charge for continue maintenance when warranty is expired.
Exclusive engineer support at any time.
We can provide free training to end-users.
2. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
our engineers can make suitable design for you
3. Can you book the boat for me, as we do not have our own forwarder?
Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years
4. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,
or you can let some third-partied to do the inspection for you.
5. How can I install the crane?
Our engineers can come to your work site to guide the installation.
6. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
6.If you have interests, pls contact me freely.
