Glass Lifting Tool Suction Cups Vacuum Lifter
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Cup Quantity：4
- Single Cup Lifting Capacity：100kg
- Charger：AC220,110
- Extension Bar Length：590mm
Base Info
- Model NO.：GL-SC
- Tilting：90 Degree Manual
- Color：Yellow
- Power Supply：Battery
- Lifting Method：Vacuum
- Control：Wire Controller
- OEM：Accepted
- Coating：Powder Spray
- Usage：Glass Installing
- Package：Plywood Box
- Carrying Capacity：Weight Level
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Transport Package：Wooden Box
- Specification：400kg,600kg,800kg,1000kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：500 Sets,Month
Description

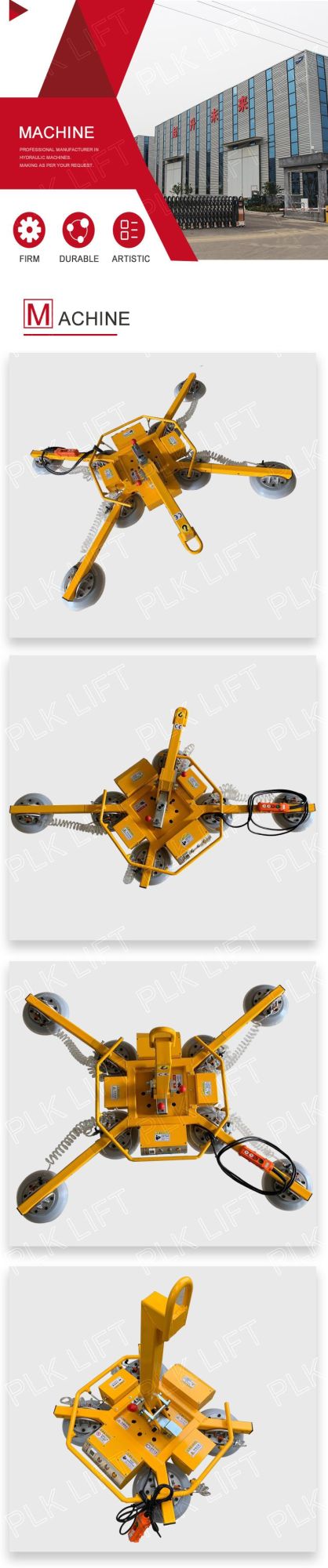

Integrated Control Cabinet and Wired Remote Control
Features & Advantages:
1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
